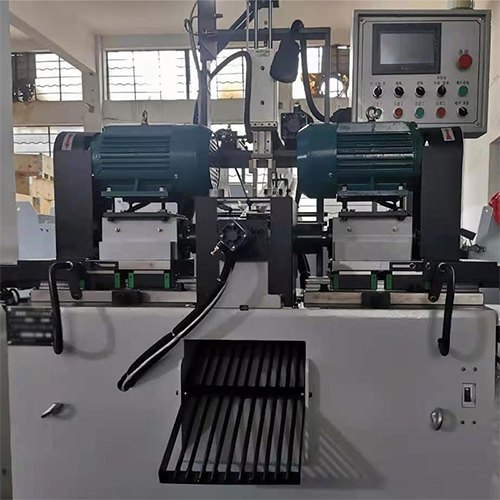

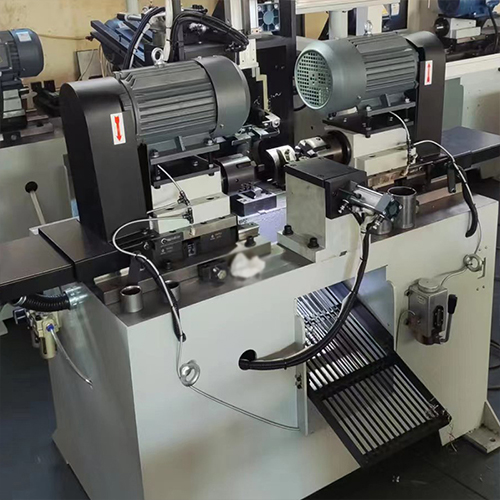

This Automatic Double-End Pipe Chamfering Machine is an automated horizontal end-facing multi-functional CNC machine tool that seamlessly integrates high-efficiency synchronous cutting with fully digitized line adjustments. It is engineered for the simultaneous dual-end processing of circular pipes (OD 5-60mm), solid bars (OD 5-20mm), hexagonal stock, and square pins. Restricting the finished flat-end length tolerance within a highly consistent ±0.03mm, it reaches a lightning processing velocity of 17-23 pcs/min, providing robust hardware support for flexible, low-waste continuous multi-spec production.
Within the environments of mass metal tube processing, automotive components production, HVAC refrigeration lines, and precision hardware fabrication, legacy single-head configurations or manual feeding setups routinely introduce bottleneck pain points such as low output rates, tedious changeover tuning, and poor linear consistency. Under continuous multi-shift production, fluid-power fluctuations or structural physical stopper wear frequently trigger length cumulative errors, escalating reject rates during downstream robotic welding and assembly.

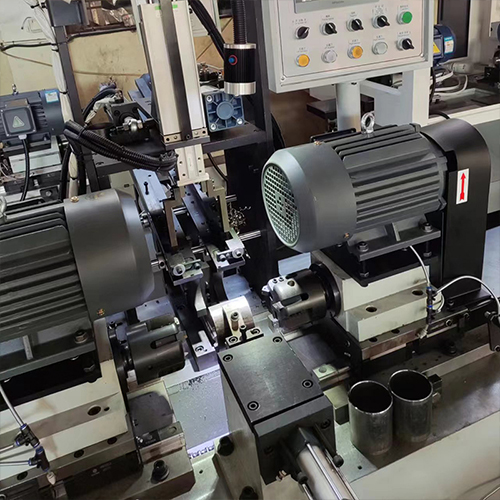

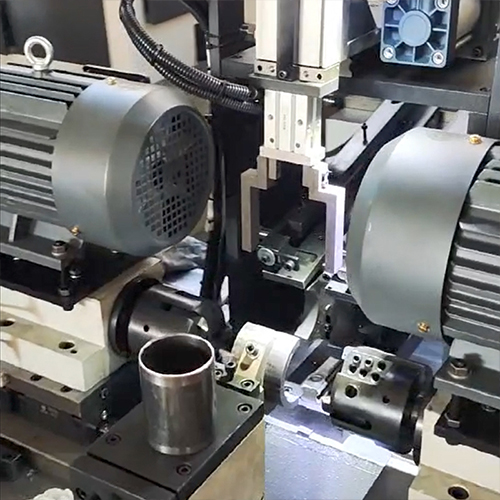

To thoroughly eliminate these manufacturing roadblocks, we proudly introduce the advanced Automatic Double-End Pipe Chamfering Machine. Engineered with a heavy-duty counter-parallel dual power head horizontal configuration, the workpiece is aligned and rigidly locked via a straight-up and straight-down pneumatic clamping matrix. Upon clamping, the left and right cutting spindles advance smoothly under independent digital controls. Within a single high-velocity automated stroke, it simultaneously finalizes outer edge beveling, internal deburring, cross-section flat facing, and inner/outer step turning on both ends of the pipe or bar stock. This fully digital multi-axis motion control eliminates relying on mechanical dead-stop calibrations; product length variations and beveling spec adjustments are keyed electronically via the CNC touch screen panel. This not only grants processing cycles exceptional structural symmetry and micron-level repeatability (stably restricting the flat-end length tolerance within ±0.03mm), but also compresses product line-changeover intervals, rendering it a highly cost-effective asset for enterprises chasing smarter, high-yield production.
| Performance Item | Specifications |
| Machine Type |
Automatic Double-End Pipe Chamfering Machine |
| Processing rang |
8mm-80mm |
| Length |
8-200mm |
| Working time |
15-30 pcs/min |
| Flat end length tolerance |
±0.04mm |
| Machine weight |
1100kg |
Digital Programming & Tool Damage Protection: This premium Automatic Double-End Pipe Chamfering Machine is driven by an intelligent CNC touch panel screen integrated with a Suzhou Wistron computer controller sequence. Alongside fully electronic parameter entering for rapid spec variations (completely discarding manual mechanical stop-dog adjustments), it incorporates an advanced electronic sensing program for tool edge failure detection and instant alarm stopping.

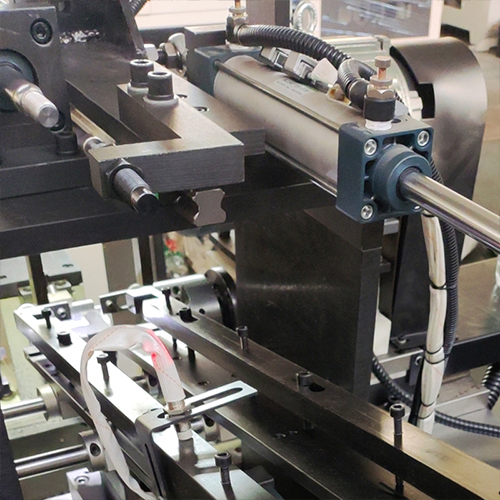

Heavy-Duty Linear Guide Rails & Precision Transmission: The structural feed slide travels along industrial-grade high-rigidity linear guide rails, paired with precision ball screws to support the advancing stroke of the cutting power heads.Provides exceptional smoothness and directional rigidity for the high-speed forward and backward movements of the dual power heads, minimizing mechanical friction and backlash to secure strict cross-section perpendicularity and lock in processing tolerances.
Master-Class Hardware & Heavy Cast-Iron Headpiece: The structural headpiece framework of this Automatic Double-End Pipe Chamfering Machine is constructed from thick, vibration-absorbing industrial gray iron castings rather than light welded steel plates. The cutting spindles are powered by twin Level 4 Zhejiang Mingsu main motors (2.2 kW *2) supported by premium Haerbin heavy-duty rotary bearings.The cast-iron structure exhibits excellent structural dampening qualities, dampening high-frequency cutting harmonic vibrations during full-speed spindle spins. This produces a smoother surface finish on the bevels and internal steps while extending carbide insert operational life by over 30%, lowering long-term consumable costs.
Built with a sturdy horizontal chassis paired with a fully enclosed safety observation canopy and high-power main motors, this machine is engineered to support regular multi-shift high-volume runs, helping production lines maintain a steady output rhythm.
Hardware Production & Metal Furniture Frameworks: Specialized in rapid deburring, facing, and chamfering on both ends of steel pipes for laundry racks, iron legs for modern office desks/chairs, aluminum ladder tubes, and shelving post profiles.Eradicates sharp flashes and edge burrs from cross-sections, securing smooth boundaries to guarantee seamless fitments for downstream plastic end-cap insertions, metal clips, or surface coatings.
Automotive Components & Bushing Sleeves: Tailored for standard end-facing and symmetrical chamfering on automotive shock absorber sleeve brackets, metal bushings, connecting rods, and round bar stock.The synchronized dual-end machining process guarantees high geometric symmetry for both sides of the workpiece, eliminating cumulative dimensional deviations caused by sequential single-head runs to facilitate smoother downstream fit-up alignments or welding.
HVAC Piping, Heat Exchangers & Refrigeration Circuits: Dedicated to high-precision cross-section flat facing and sharp edge deburring of air conditioner copper lines, heavy-walled aluminum sleeves, and seamless steel tubing for condenser coils prior to flaring, bending, or looping procedures.
Architectural Decoration, Stainless Handrails & Steel Structures: Designed for high-volume inner/outer beveling and edge prepping on both ends of stainless steel architectural safety railings, staircase handrails, mall barriers, and connecting tubes for steel space frames.
Sports Fitness Gear & Bicycle/E-Bike Chassis Fabrication: Geared toward high-efficiency end-facing and sharp-edge removal on circular, oval, or square tubes for commercial treadmill frames, dumbbell racks, multi-gym equipment, and bicycle/e-bike frames.
