The YQUNIQUE High-Speed Rotary Double-Ended Pipe Chamfering Machine is a high-efficiency automatic chamfering machine designed for high-volume production of metal tubes, round bars, square bars, and hexagonal bars. Featuring a high-speed rotary processing system, dual cutting heads, automatic feeding, and precision clamping, it simultaneously performs inner chamfering, outer chamfering, and end facing on both ends in a single cycle. The machine delivers high machining accuracy, stable quality, and exceptional production efficiency, making it ideal for automotive parts, furniture, HVAC tubing, hardware products, and precision metal fabrication.
The High-Speed Rotary Double-Ended Pipe Chamfering Machine is a purpose-built, customized automation solution designed specifically for clients with high-volume, single-specification production needs.

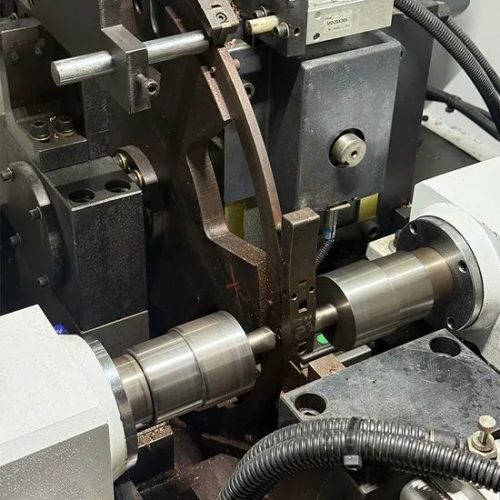

Breaking away from the redundant structures of conventional, universal chamfering machines, this Rotary Double-Ended Pipe Chamfering Machine utilizes an innovative high-speed rotary chamfering and cutting system. By perfectly synchronizing the cutting tools and feeding mechanism, it simultaneously completes inner chamfering, outer chamfering, and face milling (deburring) on both ends of the tube within an extremely short cycle. This rotary design elevates single-piece processing speed to a whole new level, making it the ultimate choice for modern manufacturers pursuing maximum capacity and extreme precision.
| Performance Item | Specifications |
| Machine Type |

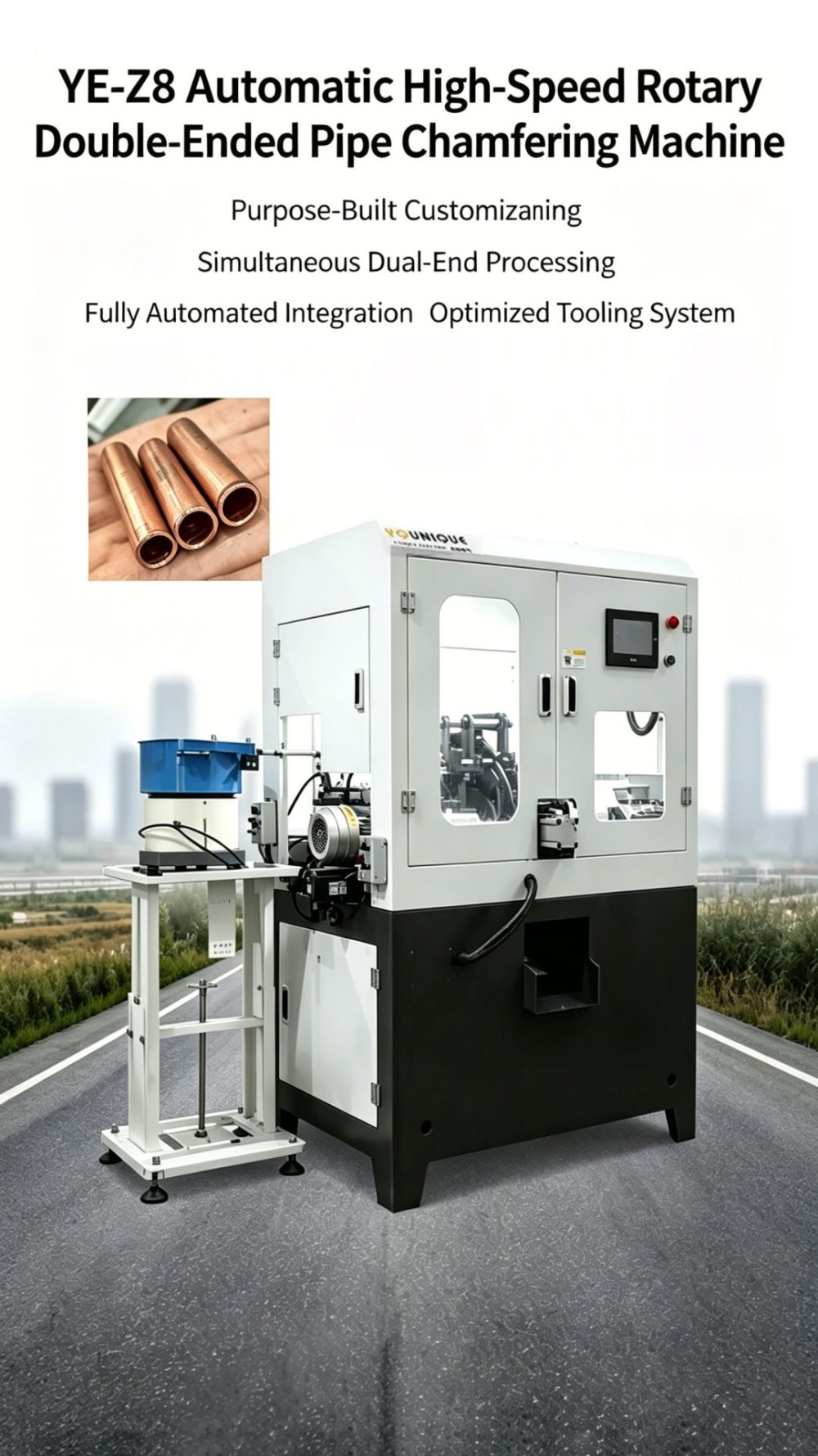

YE-Z8 High-Speed Rotary Double-Ended Pipe Chamfering Machine (Customized) |
| Materials |
Copper, aluminum, stainless steel, carbon steel, and solid round bars |
| Processing |
Inner chamfering (I/O), outer chamfering, and face milling (Facing/Deburring) |
| Production Speed |
Ultra-fast processing (Breakthrough capacity based on customized tube dimensions) |
| Length Tolerance |
±0.05mm |
| Feeding System |
Automatic vibrating bowl / Step-lift feeder / Manual feeding (Optional based on custom plan) |
| Control System |
Industrial smart PLC + Color touch screen |
| Clamping |
High-pressure pneumatic / Hydraulic |
| Power Supply |
380V 50Hz (Customizable according to client’s national standards) |
Purpose-Built Customization: Tailor-made based on the client’s specific tube diameter, length, material, and chamfering angle. This dedicated design eliminates the hassle of frequent mold changes and ensures absolute stability even under continuous, 24/7 operation.
Ultra-Fast Rotary Machining: Driven by a revolutionary rotary spindle cutting design, the machine drastically reduces tool advance and retreat times. Compared to conventional models, the single-piece processing speed is multiplied, maximizing your factory’s ROI.

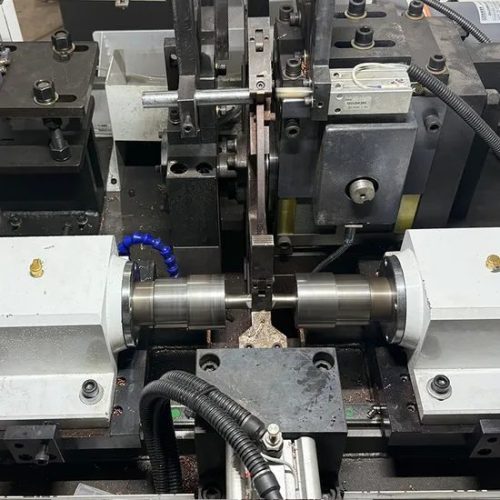

Simultaneous Dual-End Processing: Both the left and right power heads operate simultaneously. With a single clamping action, it finishes chamfering and facing on both ends, ensuring absolute concentricity and strictly controlling the flat end length tolerance to within ±0.05mm.
Fully Automated Integration: Depending on your material form, we perfectly match the ideal feeding system—such as fully automatic vibrating bowls, step-lift feeders, or seamless robotic arm integration—to achieve true unmanned, high-speed operation.
Optimized Tooling System: Employs specially designed conical cutter heads and standardized, wear-resistant blades that maintain a long lifespan even under high-intensity cutting. Tool changes are quick and do not require tedious re-calibration of the center point.

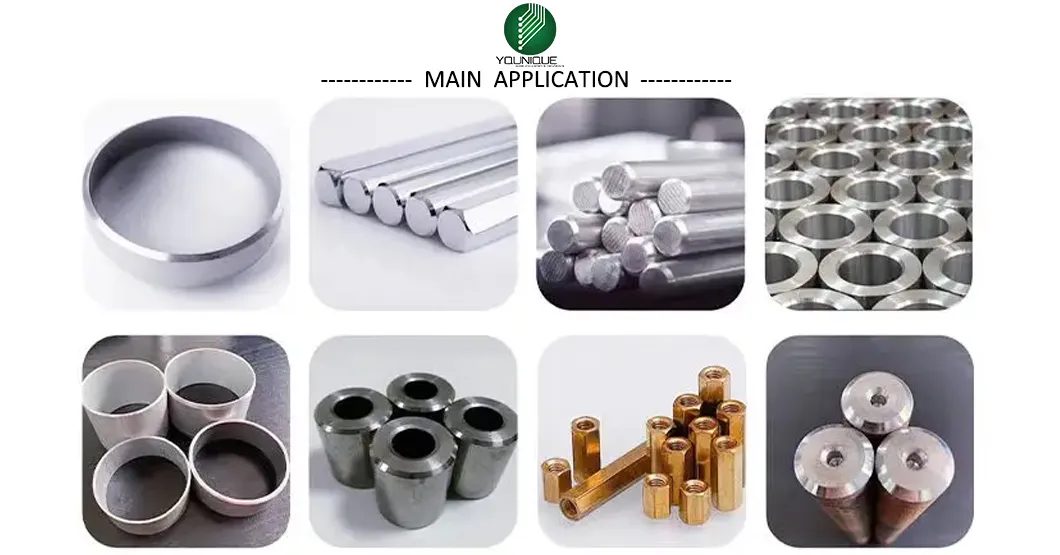

This purpose-built, high-speed chamfering beast is perfectly suited for manufacturing scenarios with massive and concentrated production demands:
Electrical Cable Lugs: Designed for ultra-fast tube chamfering preparation in the production of high-quality copper tubular lugs and bi-metallic lugs.
Automotive Components: Ultra-high-speed dual-end deburring and chamfering for automotive shock absorber steel tubes, seat frame tubes, and air conditioning aluminum tubes.
Fasteners & Pins: Rapid dual-end chamfering processing for high-volume solid pins and stud bolts.
HVAC Pipe Fittings: Provides a perfect end-face foundation for subsequent seamless, high-quality welding, shrinking, or expanding processes.
Focus on Customization: We don’t just build “good enough” machines; we create exclusive equipment that perfectly fits your production line.
Plug-and-Play Production: Because it is purpose-built, the machine is tuned to its optimal state based on your materials before leaving the factory. Just power it on and run at full speed.
Comprehensive Technical Support: With over 20 years of experience in non-standard automation customization, we provide detailed global technical guidance (including drawings and operation videos) and after-sales warranty.
1. What materials can this machine process?
This machine is suitable for processing stainless steel, carbon steel, aluminum, copper, brass, and other metal tubes and bars.
2. What machining operations can this machine perform?
The machine performs inner chamfering, outer chamfering, and end facing on both ends of the workpiece in a single cycle.
3. What types of workpieces can this machine process?
It is designed for processing round tubes, square tubes, round bars, square bars, and hexagonal bars.
4. Is this machine suitable for high-volume production?
Yes. The high-speed rotary processing system is specially designed for continuous, high-volume production with stable performance.
5. What is the machining accuracy?
The machine provides high machining accuracy and consistent chamfer dimensions for continuous production.
6. Does the machine support automatic feeding?
Yes. It is equipped with an automatic feeding system to improve productivity and reduce manual operation.
7. Can the machine be customized?
Yes. Fixtures, tooling, machine dimensions, and automation configurations can be customized according to your production requirements.
8. What information is required for quotation?
Please provide your workpiece drawings, material, dimensions, wall thickness, and production capacity.
9. Can customers send samples for testing?
Yes. Customers are welcome to send samples or drawings for machining tests before placing an order.
10. Is overseas installation and technical support available?
Yes. We provide remote technical support, operator training, spare parts supply, and overseas installation and commissioning services.
