How to Confirm a Chamfering Machine’s Electrical System Meets European Voltage Standards?

A chamfering machine electrical system that fails European voltage standards can stall a line. On our Wenzhou floor, we have watched buyers learn this too late. Prevention starts at purchase.

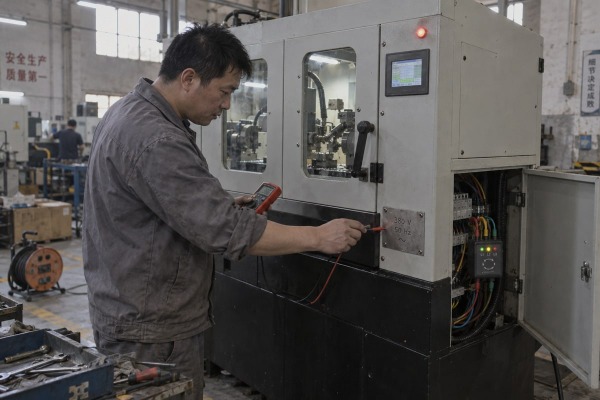

To confirm a chamfering machine’s electrical system meets European voltage standards, check the nameplate for 400V three-phase or 230V single-phase at 50Hz, request the EU Declaration of Conformity citing the Low Voltage Directive and EN 60204-1, then measure voltage, phase sequence, and earth continuity at the installation point.

That short answer hides four separate jobs. You need the right certifications, the right wiring, the right voltage and frequency, and the right paperwork. I will walk through each one below, in the order we handle them on a real European order.

What Electrical Certifications Should I Request from My Chamfering Machine Supplier for Europe?

A Slovak procurement manager once asked us for "the CE certificate" before ordering a chamfering machine. We explained that CE is a declaration, not a certificate, and listed what matters.

Request an EU Declaration of Conformity referencing the Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, and Machinery Directive 2006/42/EC, plus confirmation that the electrical equipment follows EN 60204-1. Ask for motor efficiency class documentation and component certificates, since CE marking is a manufacturer's declaration, not third-party certification.

The confusion in that Slovak buyer's email is very common. Many people treat CE marking certification ¹ as a stamp from an independent lab. It is not. It is the manufacturer saying, under its own legal responsibility, that the machine conforms to the EU rules that apply to it. That is why the question is not "do you have CE?" but "which directives and standards does your declaration cover, and can you show the evidence behind it?"

The three directives that apply to a chamfering machine

A powered chamfering machine usually falls under three pieces of EU legislation at once. They do not compete. They apply side by side.

A note on timing: the Machinery Directive is being replaced by the Machinery Regulation (EU) 2023/1230 ³, which becomes applicable in January 2027. If your delivery lands near that date, ask the supplier which text the declaration will cite.

EN 60204-1 is the technical heart of the file

Directives tell you what outcome is required. EN 60204-1 safety standards ⁴ tell you how to get there for the electrical equipment of machines. The standard covers machine electrical systems up to 1,000V AC and 1,500V DC at frequencies up to 200Hz. Its scope starts where the incoming supply meets the machine's terminals or main disconnecting device. When we build a control cabinet for a European order, this is the standard our wiring layout, colour coding, bonding, and protective devices are checked against.

Certifications beyond the big three

Two more items belong on your request list. First, motor efficiency. The EU Ecodesign rules now require IE3 or, for certain power ranges, IE4 motors. Ask for the motor datasheet showing its efficiency class. Second, if any of your sites are in the United Kingdom, ask whether a UKCA marking is also provided, because CE alone no longer covers that market in the same way.

Here is the objection I hear most: "If the supplier gives me a proper declaration, that should be enough." For a new, unmodified machine installed exactly as instructed, that view is reasonable and efficient. But a declaration describes the machine as it left the factory. It cannot describe your site's actual supply, fault current, cable length, or earthing arrangement. Documentation is necessary. It is not sufficient. The next section covers what you still need to verify yourself.

How Can I Verify My Chamfering Machine's Wiring and Components Match CE Voltage Requirements?

During a final inspection, our electrician found a 24V DC sensor wired to a 24V AC tap. The main 400V motor circuit was perfect. The control circuit was not.

Verify wiring and components against CE voltage requirements by comparing every component rating to the EN 60204-1 design, confirming conductors are sized for current and a maximum 5% voltage drop, testing protective bonding continuity with a meter, checking control-circuit voltage separately, and ensuring breakers match the prospective short-circuit current.

That sensor incident taught our team something simple. A machine can pass on its main supply and still fail on a secondary circuit. So we now check every circuit, not just the motor feed. Below is the sequence we follow, and the one I suggest your installer follows too.

A seven-step wiring and component check

1. Read the component markings. Motors, drives, contactors, breakers, fuses, transformers, power supplies, and safety relays each carry a rated voltage, frequency, and current. Each one must suit the circuit it sits in. A 60Hz-only contactor coil in a 50Hz machine is a real finding, not a theoretical one.
2. Confirm conductor sizing. Size depends on current, installation method, ambient temperature, grouping, and length. EN 60204-1 gives a reference figure of no more than 5% voltage drop from the supply point to the load under normal conditions. A machine that runs well on a short factory test lead can misbehave on a long run from the distribution board.
3. Test grounding and bonding with an instrument. Looking at a green-yellow wire is not a test. Use a continuity tester on the frame, cabinet door, motor housing, guards, and the vibratory feeder stand. Painted doors, hinges, and parts separated by bearings are the usual weak points.
4. Separate overload from short-circuit protection. A motor overload relay handles sustained excess current. It does not clear a high-energy short. The breaker's interrupting capacity must exceed the prospective short-circuit current at your site.
5. Check control panel compliance. Look for an IP54 or better enclosure where dust and coolant are present, labelled breakers, terminal numbering that matches the drawings, and clear separation between mains and SELV/PELV circuits.
6. Check the control voltage on its own. Confirm the transformer primary rating, the secondary voltage, polarity on DC components, and that the emergency-stop chain works at that voltage.
7. Review EMC details. Shielded motor cables terminated at both ends, power and signal cables kept apart, drive filters fitted, and cabinet bonding straps in place.

Symptoms that point to a wiring or rating mismatch

One caution. Insulation-resistance and dielectric tests ⁵ can destroy drives, PLCs, filters, and surge devices if applied blindly. Our schematics mark which components must be disconnected first. Ask your supplier for the same marking before anyone connects a test set.

What Voltage and Frequency Specifications Do I Need to Check Before Shipping to the EU?

Here is a trade-off on every European order. Our Wenzhou supply is 380V 50Hz. We can step voltage down for testing, but cannot push it above our domestic standard.

Before shipping to the EU, confirm the chamfering machine is rated for three-phase 400V 50Hz or single-phase 230V 50Hz, with a tolerance band of roughly 380–415V, correct star or delta motor connection, 50Hz-rated drives and transformers, and an earthing arrangement matching the destination site's industrial power supply requirements.

That testing limit is why I push buyers to settle the voltage specification at the purchase stage, not at the packing stage. If a customer in Serbia or Slovakia tells us "400V three-phase, 50Hz" when the order is placed, we select motors, drives, and control transformers rated for that band from the start. We can then run the machine on our 380V supply, which sits inside the 380–415V tolerance of those components. What we cannot do is simulate a 415V site, or any supply above our domestic standard. So the final confirmation at full site voltage must happen at installation, with your electrician present.

China versus Europe: the numbers that matter

The good news is that both regions use 50Hz. The trap is the voltage band. A nameplate marked 220/380V on an older design does not automatically mean the machine is happy at 230/400V. Ask for current motor nameplate data, not a legacy label.

Four checks beyond the nameplate

Star or delta connection. A 230/400V motor must be linked in star on a 400V three-phase supply. A delta link puts 400V across windings rated for 230V. This is the single most expensive mistake I have seen on relocated machines.

Phase sequence. Wrong sequence reverses the motor, the coolant pump, and the feeder vibrator. A brief bump test is not enough. A phase-sequence tester takes thirty seconds and prevents damaged tooling.

Frequency-dependent parts. Fans, pumps, and transformers behave differently at 60Hz. If a used machine came from a 60Hz market, do not assume a drive will rescue every component.

Measured site voltage, not nominal. Measure at the machine's incoming terminals with calibrated instruments. Nominal utility voltage and the voltage at the end of a long sub-main are not the same number.

A buyer once suggested avoiding all this with a plug adapter or an external step-up transformer. I understand the appeal. But an adapter fixes a connector, not a rating. And a transformer adds cost, losses, and one more failure point. Correcting the machine's electrical configuration at the design stage is cheaper and safer.

Which Documents Should I Ask My Supplier to Provide to Prove European Electrical Compliance?

One lesson cost us a week: a buyer's installer rejected our panel because the schematics did not match a drive swapped during assembly. Now we update drawings first.

Ask your supplier for the EU Declaration of Conformity, electrical circuit diagrams, a parts list with component ratings, nameplate data, a risk assessment, EN 60204-1 test reports covering bonding continuity and insulation resistance, operating and installation instructions, and EMC information. Each document must match the machine model and configuration shipped.

That week of emails changed how we release documents. A drawing that does not match the cabinet is worse than no drawing, because the installer trusts it. So before any European shipment leaves our factory, the schematic revision, the parts list, and the physical panel are checked against each other by someone who did not wire the panel.

The compliance file, item by item

How to spot a weak conformity claim

A CE mark with no matching declaration and no technical file behind it is a warning sign, not a comfort. Three quick tests help. Does the declaration name the exact model and serial number on the machine in front of you? Does the standards list include EN 60204-1 and not just a general safety standard? Do the test reports show numbers, such as a measured bonding resistance, rather than a bare "pass"?

Used, imported, and modified machines

Documentation deserves extra scrutiny when a chamfering machine is second-hand, rewired for a different voltage, fitted with a replacement drive, or relocated from outside Europe. In those cases the original declaration may no longer describe the machine. Ask who performed the modification and whether the schematics and risk assessment were updated. If nobody can answer, treat the machine as unverified.

Finally, close the loop with a documented acceptance. We prefer a simple sign-off sheet with three signatures: ours, the installer's, and the site's responsible electrical professional. It records the measured supply voltage, phase sequence, bonding results, and the drawing revision used. It is the fastest way to end future arguments before they begin.

Conclusion

A chamfering machine electrical system that fails European voltage standards stops production and strains trust. Confirm specs at purchase, verify at installation, and sign a documented acceptance together.
