Every high-volume metal fabrication workflow begins with a single foundational step: cutting raw material to length. However, as facilities scale up production, the automatic saw cutting methodology selected becomes a major determinant of overall plant profitability, scrap rates, and part quality.
While manual bandsaws and abrasive chop saws have their place in small prototyping workshops, medium-to-large manufacturers across the US Midwest, Eastern Europe, and Southeast Asia are rapidly replacing them with fully automated CNC circular cold saws.
Which method is truly better for your operational bottom line? Let’s examine the engineering realities of manual versus automated tube cutting.
At first glance, a manual bandsaw or abrasive chop saw requires a very low initial capital investment. However, when evaluating the total cost of ownership (TCO) and long-term OEE (Overall Equipment Effectiveness), manual cutting becomes exponentially more expensive as production volume scales.
Severe Thermal Damage & Edge Burrs: Abrasive cut-off wheels rely on high-speed friction to “melt” through the tube. This generates extreme heat, causing localized thermal discoloration and creating heavy molten burrs. This damages the metal’s grain structure (creating a Heat-Affected Zone, or HAZ), which often leads to cracking during downstream end-forming or welding.
Blade Wander & Inconsistent Angles: Fine bandsaw blades inevitably suffer from mechanical deflection (blade wander) during high-pressure cycles. This leads to off-square cuts that fail 90-degree perpendicularity standards, making automated welding or brazing near impossible without secondary face-grinding.
Transitioning to a CNC transforms raw material processing from a labor-intensive liability into a highly repeatable, “lights-out” operation.

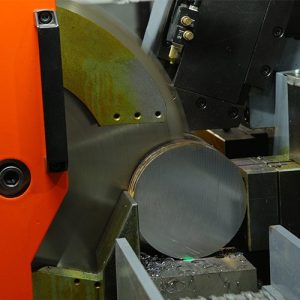

Unlike manual saws that struggle with blade deflection, modern automatic cold saws utilize thin-kerf Tungsten Carbide Tipped (TCT) or High-Speed Steel (HSS) circular blades driven by heavy-duty multi-gear gearboxes. This configuration executes a true “cold cut”—leaving the workpiece cool to the touch and providing a milled, mirror-smooth section ready for immediate downstream processing.
For high-volume factories processing solid bars, heavy tubes, or bundled profiles, integrating the or the versatile provides critical engineering advantages:
Deformation-Free Clamping: Machines like the YE-Q2 utilize heavy-duty hydraulic vises that grip the tube securely on both sides of the blade stroke. This prevents spinning and structural collapse, securing a 100% square cut with zero internal deformation.
High-Precision Multi-Length CNC Feeding: Driven by high-precision ball screws and AC servo motors, the automatic feeder achieves a length repeatability tolerance within plus or minus 0.05 mm.
Exceptional Bundle Cutting Yields: For smaller tube profiles (widely used in furniture and HVAC), systems like the support bundle clamping. Operators can clamp and cut dozens of tubes simultaneously in a single cycle, multiplying daily output exponentially.
According to data insights from the , optimizing raw material cutting tolerances is the most direct way to compress cost-per-part ratios.
| Feature | Manual Tube Cutting | Automatic Saw Cutting Machine |
| Throughput Speed |
Low (highly dependent on operator stamina). |
High (continuous, high-rpm rapid cycling). |
| Length Repeatability |
plus or minus 1.0 mm to 2.0 mm (highly variable). |
plus or minus 0.05 mm (servo-driven precision). |
| Section Edge Quality |
Heavy molten burrs, thermal damage (HAZ). |
Mirror-smooth, milled finish (zero secondary deburring). |
| Material Yield & Scrap |
High scrap rate due to measuring errors. |
Minimum waste via multi-length nesting software. |
| Workpiece Deformation |
High risk of wall collapse on thin tubes. |
Zero risk (full-surface hydraulic clamping). |
For metal furniture manufacturers scaling in Vietnam and Thailand, or automotive exhaust fabricators in Bavaria, Germany, and the American Midwest, staying competitive requires automating human dependencies.
Implementing an automatic sawing cell equipped with bundle loaders, mist lubrication, and smart scrap sorting allows a single operator to manage up to three cutting lines simultaneously. This ensures strict compliance with ISO and global automotive standards while insulation from rising wages.
If your factory is still wasting material on manual bandsaws or incurring high labor costs on secondary deburring, you are losing your competitive edge.
Transition to the speed, safety, and precision of a CNC cold sawing system. Explore the complete lineup at YQUNIQUE, and contact our engineering team to request a customized ROI calculation based on your monthly production volumes.
