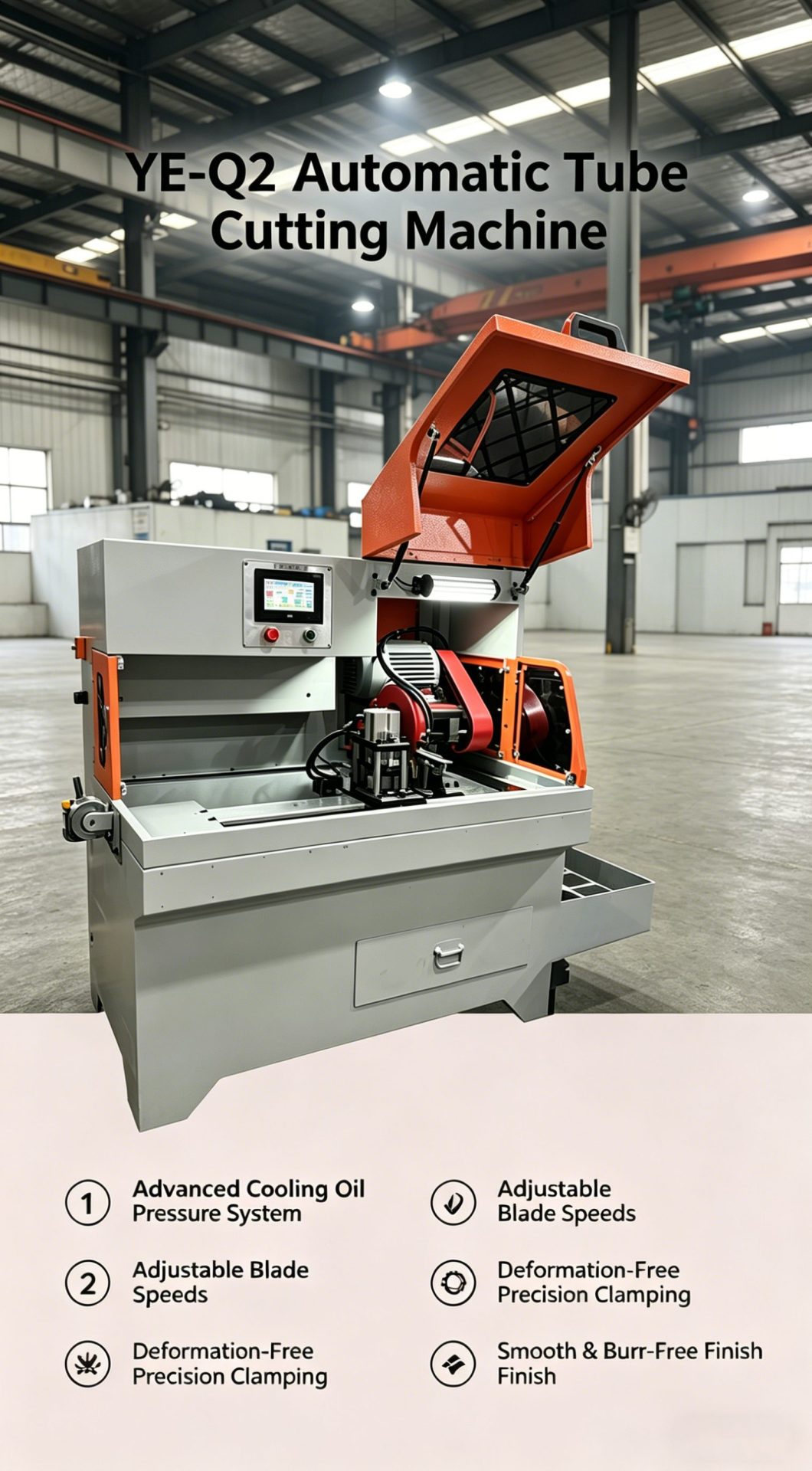

The YE-Q2 Automatic Tube Cutting Machine is an advanced, high-performance circular sawing solution engineered specifically for the precision cutting of metal tubes and pipes. In industrial metal fabrication, achieving a perfectly square, burr-free cut without deforming the tube is a major challenge. The YE-Q2 overcomes this by integrating robust mechanical clamping with a state-of-the-art cooling oil pressure system, ensuring flawless results on every cycle.
The YE-Q2 Automatic Tube Cutting Machine is an advanced, high-performance circular sawing solution engineered specifically for the precision cutting of metal tubes and pipes. In industrial metal fabrication, achieving a perfectly square, burr-free cut without deforming the tube is a major challenge. The YE-Q2 Automatic Tube Cutting Machine overcomes this by integrating robust mechanical clamping with a state-of-the-art cooling oil pressure system, ensuring flawless results on every cycle.
Designed to handle a variety of materials including copper, aluminum, brass, and carbon steel, this machine is the ultimate upgrade for factories relying on outdated manual saws or abrasive cutters. By offering adjustable blade speeds and automated material feeding, the YE-Q2 Automatic Tube Cutting Machine ensures that your production line adheres strictly to global metal fabrication standards, drastically reducing material waste, extending blade life, and delivering high-volume output with minimal labor intervention.
| Performance | Specifications | |
| Cutting capacity | ● | ∅60mm |
| ■ | 50*50mm | |
| ○ | ∅120mm | |
| ┕ | 115*115mm | |
| □ | 110*110mm | |
| ▃ | 110*50mm | |
| Feed length | 5mm-6m no manual positioning/servo motor | |
| Blade speeds | stepless adjustment | |

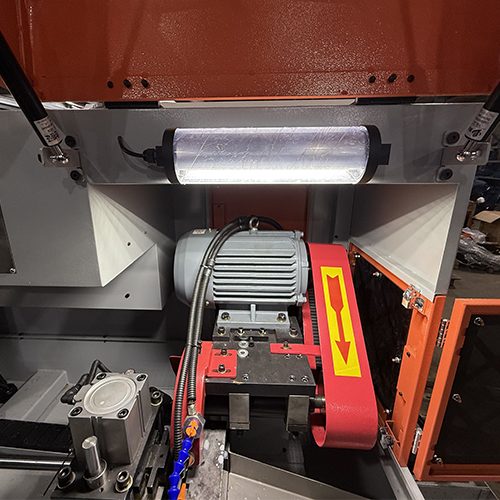

| Host motor | 3.7kw,2.2kw consequent-poles double-speed | |
| Saw | HSS ∅250-400mm（10″-16”)standard ∅350 | |
| Clamping vise | single | |
| Max. clamping capacity | 150mm | |
| Cylinder feeding travel | 650/single time,1300/double-time,1950/three-time | |
| Hydraulic motor | 3HP | |
| Servo motor feeding travel | uninterrupted | |
| Servo motor feeding travel | 1KW | |
| Operation pressure | 25-35KG/CM2 | |
| Standard configuration | Cooling system, oil hydraulic system, adjustment, adjustment tool | |
| Machine dimensions | 2200*1400*2200mm | |
| Total weight | 1450kg | |

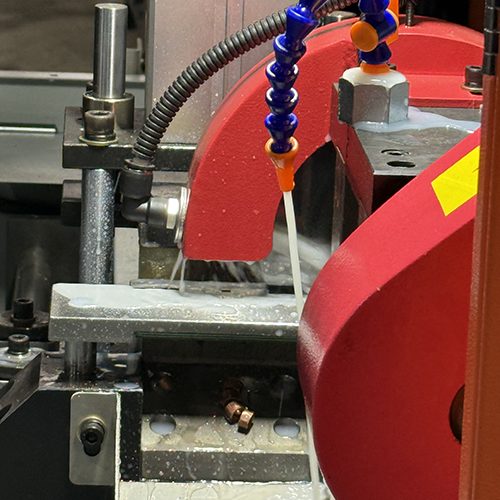

Advanced Cooling Oil Pressure System: One of the standout features of the YE-Q2 Automatic Tube Cutting Machine is its integrated fluid cooling system. It automatically sprays cooling oil directly onto the saw blade during the cutting process. This significantly reduces thermal distortion on the metal tube, prevents discoloration, and extends the lifespan of your circular saw blades by up to 300%.
Adjustable Blade Speeds (VFD Control): Different metals require different cutting speeds. Equipped with a Variable Frequency Drive (VFD), operators can seamlessly adjust the blade’s RPM. Use lower speeds for hard steel and higher speeds for soft aluminum or copper, ensuring the perfect cut for any material.

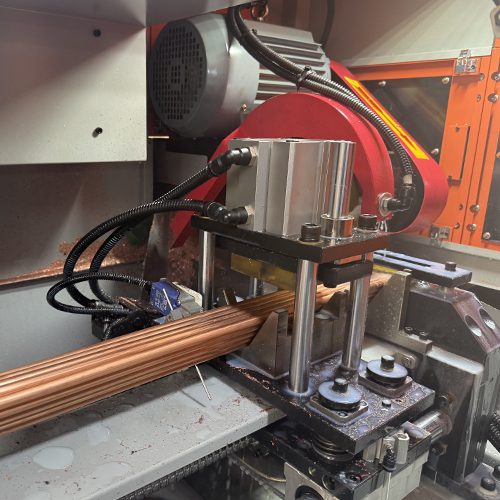

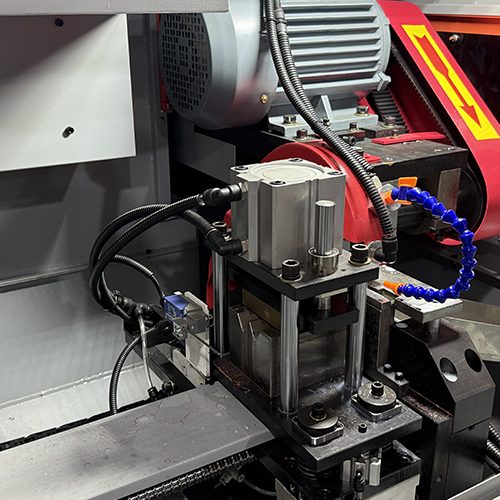

Deformation-Free Precision Clamping: The machine utilizes a heavy-duty, custom-profiled clamping vise that grips the tube securely on both sides of the blade. This prevents the tube from spinning or vibrating, ensuring a 100% square cut with virtually no burrs or internal deformation.
●: Circular solid tube is made of copper, brass, and aluminum with a bore diameter of ∅40 mm.
■: Square solid tube is made of copper, brass, and aluminum with a diameter of 50*50 mm.
○: Circular hollow tube is made of copper, brass, and aluminum with a bore diameter of ∅120 mm.
┕: L solid tube is made of copper, brass, and aluminum with a diameter of 115*115 mm.
□: Square hollow tube is made of copper, brass, and aluminum with a diameter of 110*110 mm.
▃: Square solid tube is made of copper, brass, and aluminum with a diameter of 110*50 mm.
The high-speed and deformation-free cutting capabilities of the YE-Q2 Automatic Tube Cutting Machine make it essential for various high-demand manufacturing sectors:
The YE-Q2 Automatic Tube Cutting Machine delivers a fully automated, hands-free cutting cycle:

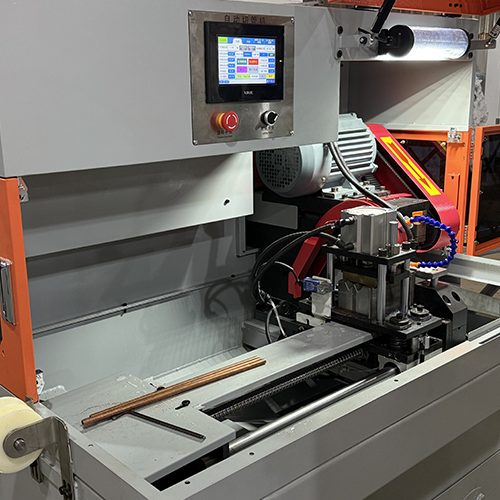

Parameter Setup: The operator sets the required cut length and blade speed on the touch screen based on the metal type.
Auto-Feeding: The machine draws the raw metal pipe forward to the exact specified measurement.
Secure Clamping: The hydraulic vises lock onto both sides of the cutting line, securing the tube tightly.

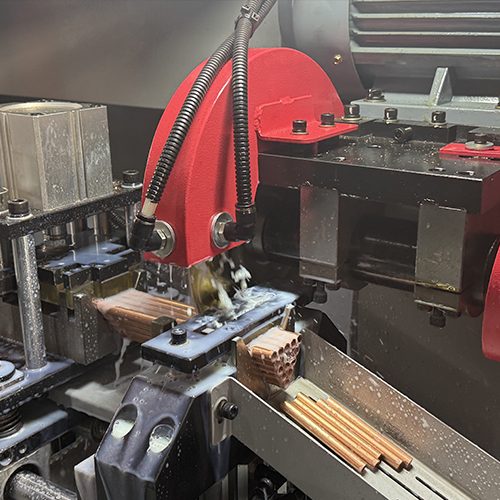

Lubricated Cutting: The circular saw blade descends smoothly while the cooling oil pump continuously bathes the cutting zone, executing a clean, cold cut.

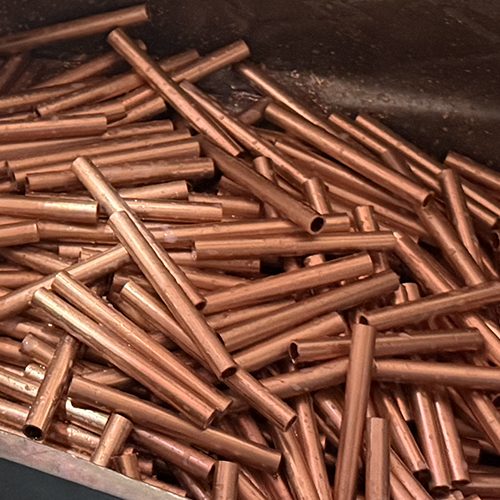

Retraction & Ejection: The blade retracts, the vises open, and the finished tube segment is pushed out into the collection area, ready for the next cycle.
Specialized Cutting Solutions: We don’t just supply the machine; we provide the exact circular saw blades and custom clamping jaws tailored to your specific tube diameters and wall thicknesses.
Built for 2026 Industrial Demands: Our equipment utilizes top-tier electrical and hydraulic components, ensuring continuous 24/7 operation in the harshest factory environments.
Global Technical Support: Every machine includes an English interface, detailed maintenance manuals, and lifelong remote video support. You can watch our precision cutting technology in action on our Official YouTube Channel.
Guaranteed Efficiency: Clients upgrading from manual band saws or abrasive cutters typically see a 400% increase in production speed and a complete elimination of secondary deburring costs.
YQUNIQUE provides 1 year warranty period, during which our company will undertake all after-sale services and spare parts free of chargee
QUNIQUE provides each customer with a more valuable automated custom machine solution
We owe it to each of our customers, YQUNIQUE uses parts from world famous brands to improve the working performance of our machines..
We not only provide you with custom automatic machines, but also give you a solved solution for electronic and electric site.
