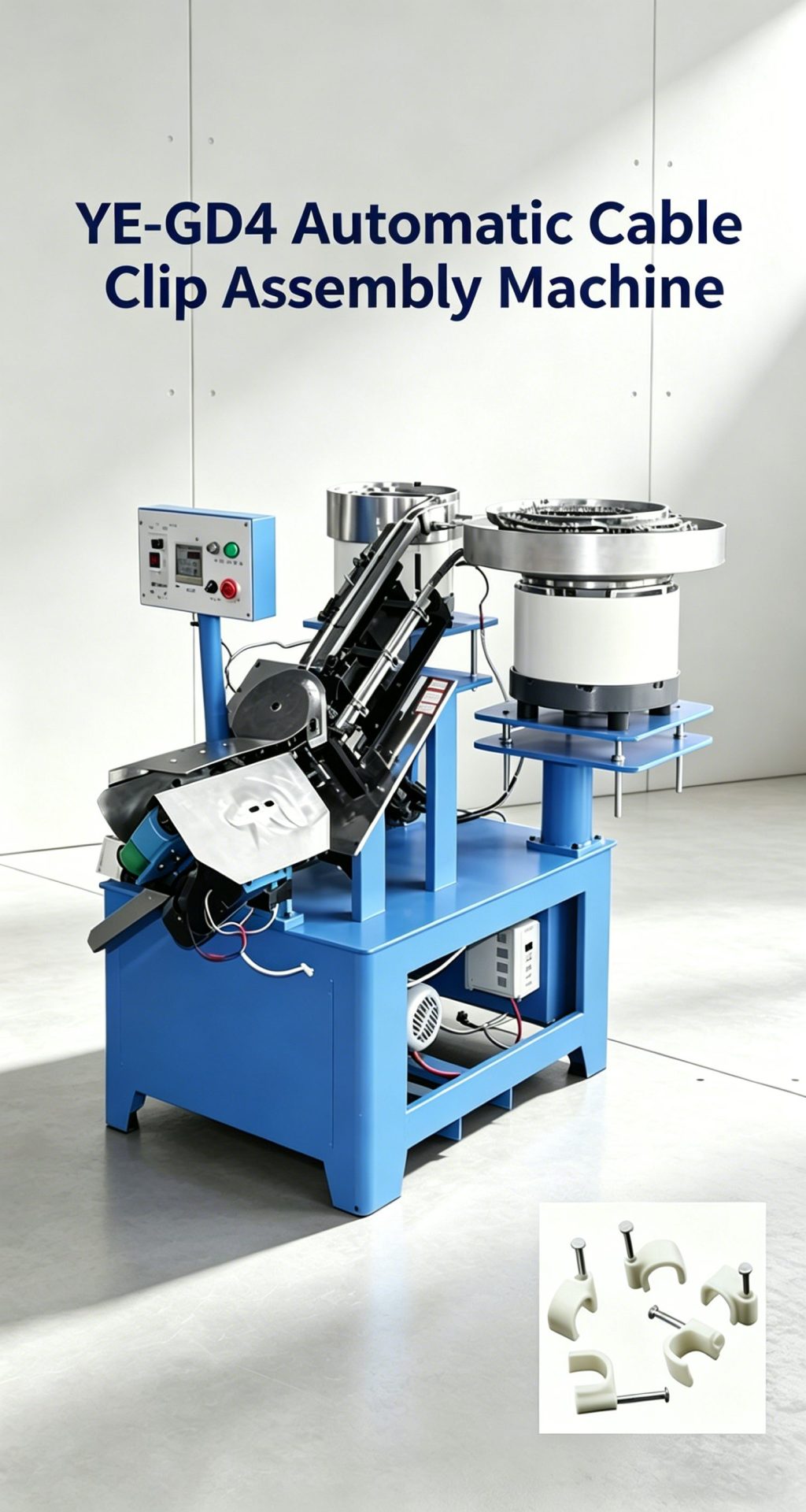

YQUNIQUE YE-GD4 Automatic Cable Clip Assembly Machine is designed for high-volume production of nail cable clips and electrical cable clamps. The machine automatically feeds plastic clips, inserts steel nails, and performs assembly inspection through PLC-controlled automation. Suitable for plastic and metal cable fastening components, it is widely used in electrical installation, telecommunications, construction hardware, and cable management industries.
The Automatic Cable Clip Assembly Machine is a high-performance automation solution specifically designed for the high-volume manufacturing of electrical cable fasteners. This advanced system integrates plastic clip feeding and steel nail insertion into a single, seamless workflow, replacing labor-intensive manual assembly. Engineered for stability and precision, this machine is an essential asset for hardware factories looking to maximize productivity and ensure consistent product quality in the competitive telecommunications and electrical supply markets.
| project | Technical parameters |
| Product Name | YE-GD4 Automatic Cable Clip Assembly Machine |
| Production Speed | 120 – 150 pcs/min (Depending on clip size) |
| Applicable Clip Sizes | 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm |
| Power Supply | AC 220V / 380V; 50/60Hz |
| Compressed Air | 0.5 – 0.7 MPa |
| Motor Power | 0.75 – 1.5 kW |
| Dimensions | Approx. 1200mm x 1100mm x 1550mm |
| Net Weight | Approx. 450 kg – 600 kg |
High-Speed Automation: Achieves rapid production rates of up to 120–150 pieces per minute, significantly increasing output compared to manual assembly.

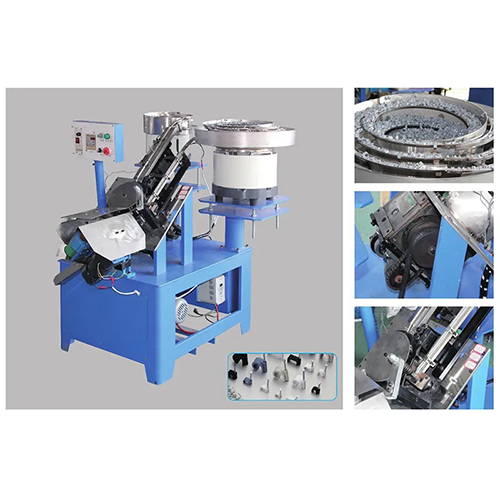

Dual Vibratory Bowl Feeding: Features independent vibratory feeders for plastic clips and steel nails, ensuring a stable and continuous material supply.
Precision PLC Control System: Equipped with an intuitive control interface for easy parameter adjustment, monitoring, and troubleshooting.
Intelligent Safety Sensors: Built-in sensors automatically detect material shortages or jams, stopping the machine to prevent damage and reduce waste.
Robust Industrial Construction: Built with high-grade steel and premium components to withstand 24/7 continuous operation in rigorous factory environments.
Cost-Effective Operation: Drastically reduces labor overhead while maintaining 100% assembly consistency for every unit produced.
Industries: Electrical fastener manufacturing, telecommunications hardware, and construction supply production.
Materials: Suitable for assembling various plastic (PE/PP) clips with galvanized steel nails.

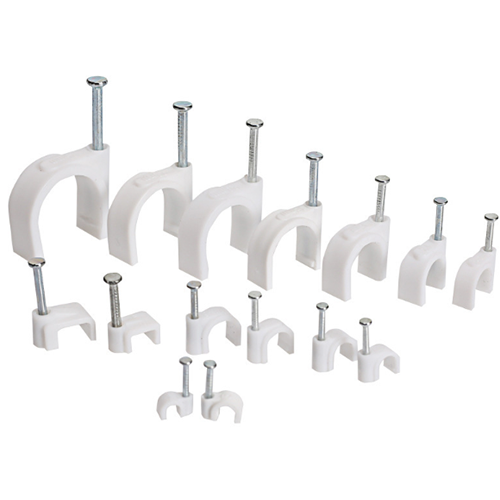

Use Cases: Mass production of telephone line clips, ethernet (Cat5/Cat6) cable clips, and electrical conduit fasteners.
Feeding: Plastic clips and steel nails are loaded into separate vibratory bowls.
Orientation: The vibratory system aligns the components and feeds them into the assembly tracks.

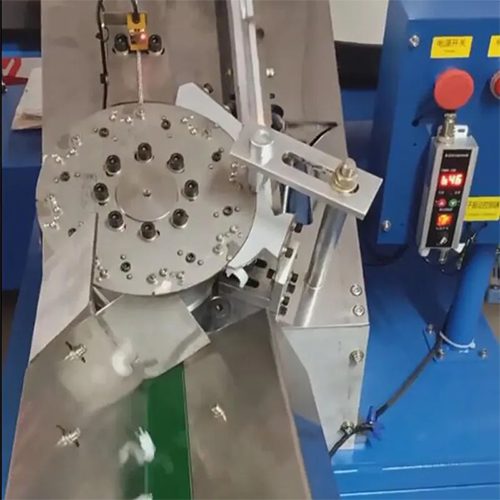

Assembly: A high-precision mechanical head inserts the nail into the plastic clip housing with calibrated force.
Inspection: Integrated sensors verify the presence and correct positioning of both parts.
Discharge: Finished cable clips are automatically ejected via a discharge chute for packaging.
Decades of Expertise: Over 20 years of experience in manufacturing high-precision automation machinery.
Factory-Direct Pricing: Competitive pricing with direct technical support from the manufacturer.
Customization Capability: We can modify feeding bowls and assembly tracks to match your specific clip dimensions and nail sizes.
Reliable Support: Comprehensive after-sales service, including remote technical assistance and spare parts availability.
1. What products can this cable clip assembly machine produce?
The YE-GD4 machine is designed for producing nail cable clips, electrical cable clamps, and other cable fastening components.
2. What materials can this machine process?
The machine can assemble plastic clips with steel nails or other metal fastening components.
3. What is the production speed of this machine?
The machine can achieve production speeds of 120–150 PCS/min depending on clip size and product specifications.
4. What cable clip sizes can this machine handle?
The machine supports multiple cable clip sizes, including 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, and 12mm models.
5. What assembly processes does the machine perform?
The machine integrates automatic feeding, positioning, nail insertion, and finished product output processes.
6. Does the machine use PLC control?
Yes. The machine is equipped with PLC control and touch screen operation for stable performance and easy adjustment.
7. What industries is this machine suitable for?
It is widely used in electrical installation, telecommunications, cable management, construction hardware, and hardware manufacturing industries.
8. Can the machine automatically detect defects?
Yes. The machine can be equipped with sensors to detect abnormal feeding or assembly conditions and stop automatically.
9. Can this machine be customized?
Yes. YQUNIQUE provides customized feeding systems, fixtures, and automation solutions according to customer requirements.
10. Can customers send samples for testing?
Yes. Customers can send cable clips or drawings for assembly testing before ordering.
