The Semi-Automatic Clip Assembly Machine is a highly versatile and cost-effective manufacturing solution designed specifically for the daily hardware, stationery, and household goods industries. While fully automated machines are excellent for single-product mass production, they often lack the flexibility required for factories that produce a diverse portfolio of products. This semi-automatic workstation bridges that gap perfectly, offering rapid assembly speeds while allowing for quick tooling changeovers.
Engineered to handle a massive variety of spring-loaded and snap-together products—ranging from delicate cosmetic hair clips to heavy-duty industrial binder clips and everyday plastic clothes pegs—this machine takes the repetitive physical strain off your manual labor force. By combining simple, ergonomic manual loading with precise pneumatic assembly, the Semi-Automatic Clip Assembly Machine guarantees 100% consistent product quality, prevents worker fatigue, and drastically reduces assembly time for your production orders.
| Technical Parameter | Value & Description |

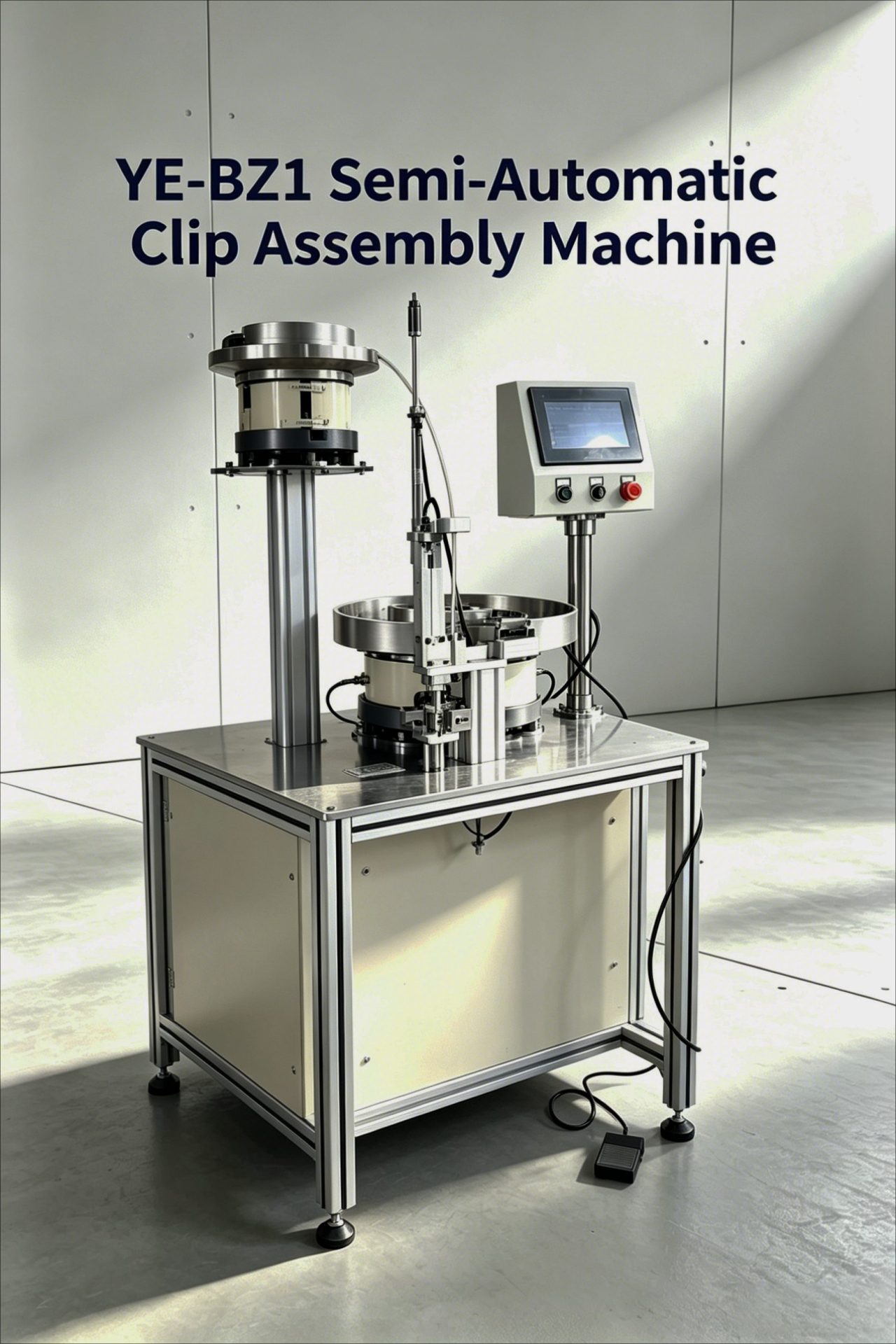

| Product Name | YE-BZ1 Semi-Automatic Clip Assembly Machine |
| Operation Mode | Semi-Automatic (Manual load, Automatic press) |
| Assembly Speed | 30 – 60 pcs/min (Depending on operator proficiency) |
| Applicable Products | Hair clips, Binder clips, Clothes pegs, Ticket clips, etc. |
| Actuation Method | Pneumatic Cylinder (Foot Pedal Controlled) |
| Customization Capability | Custom jigs/fixtures designed from your product samples |
| Air Pressure Requirement | 0.4 MPa – 0.6 MPa |
| Power Supply | AC 220V / 110V, 50/60 Hz |
| Machine Footprint | Compact Desktop Design |
| Weight | Approx. 30 kg – 50 kg (Easily movable) |
Incredible Versatility & Customization: The core advantage of this machine is its adaptability. We can customize the assembly fixtures (molds) to fit the exact shape and size of your specific clips. Whether it’s a 2-piece snap clip or a 3-piece spring-loaded peg, the machine can be tailored to assemble it flawlessly.
Extremely Simple Operation: Designed with a zero-learning-curve philosophy. The operator simply places the clip components into the custom-machined fixture and presses a foot pedal. The machine’s pneumatic cylinder executes the precise assembly instantly. New workers can reach peak efficiency within minutes.
High-Yield Precision: Manual assembly often results in misaligned springs or cracked plastics. Our machine applies exact, uniform pressure on every single stroke, ensuring a perfectly aligned and functional clip every time, dropping your defect rate to near zero.
Cost-Effective Investment: Compared to fully automated lines featuring complex vibratory bowl feeders, this semi-automatic system requires a significantly lower initial investment, providing a rapid Return on Investment (ROI) for small to medium-sized manufacturing runs.
Compact & Safe Design: The machine features a small footprint, allowing you to place multiple units closely together on a single workbench. It is also equipped with safety sensors and acrylic shielding to protect the operator’s hands from the pressing mechanism.
Quick Changeover System: Switching production from hair clips to ticket clips takes only a few minutes. Simply swap out the customized tooling die, adjust the air pressure, and resume production.
The Semi-Automatic Clip Assembly Machine process is highly rhythmic and maximizes operator output:

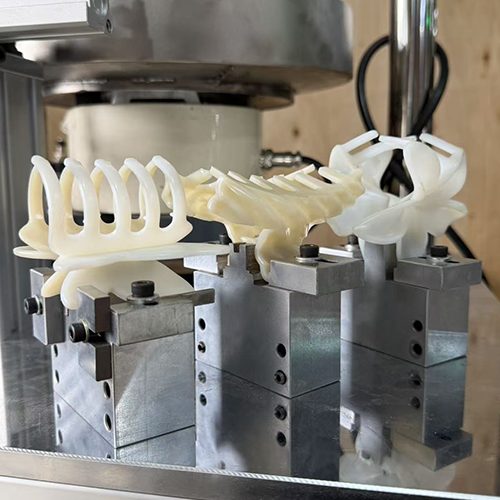

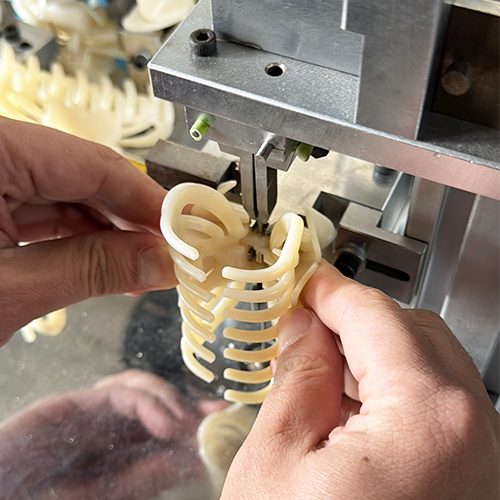

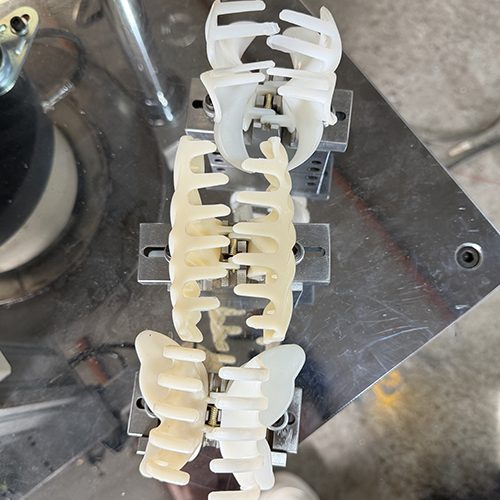

Component Loading: The operator manually places the top shell, bottom shell, and the metal spring into the custom-designed locating fixture on the machine base.
Actuation: Once the parts are aligned, the operator simply steps on the pneumatic foot pedal.
Automatic Assembly: The overhead pneumatic cylinder descends rapidly, using a customized pressing die to snap the components together and set the spring perfectly in place.
Unloading: The operator removes the finished, fully functional clip and repeats the process. (Optional automated air-blow ejection can be customized).
Because of its customizable tooling, this machine is an indispensable asset across multiple consumer goods sectors:
Fashion & Accessories: Assembling metal snap hair clips, alligator clips, and plastic claw clips with tight spring tensions.
Household & Daily Goods: Mass assembly of plastic or wooden laundry clothes pegs/pins, food bag sealing clips, and curtain clips.
Stationery & Office Supplies: Pressing together heavy-duty metal binder clips, ticket clips, and clipboard spring mechanisms.
Industrial & Hardware: Assembling testing clamps, battery alligator clips, and specialized wire-holding fasteners.
Bespoke Tooling Experts: We don’t just sell you a machine; we provide a complete assembly solution. Send us physical samples or 3D drawings of your un-assembled clips, and our engineering team will machine the perfect locating fixtures specifically for your product.
Durable Pneumatic Components: We utilize premium, industrial-grade pneumatic cylinders that are rated for millions of continuous cycles without losing pressure or precision.
Scalable Solutions: Start with a semi-automatic machine to test the market, and as your volumes grow, we can help you upgrade to a fully automated vibratory-fed system.
Global Technical Support: We provide straightforward video setup guides and responsive online engineering support to ensure your assembly line never stops.
