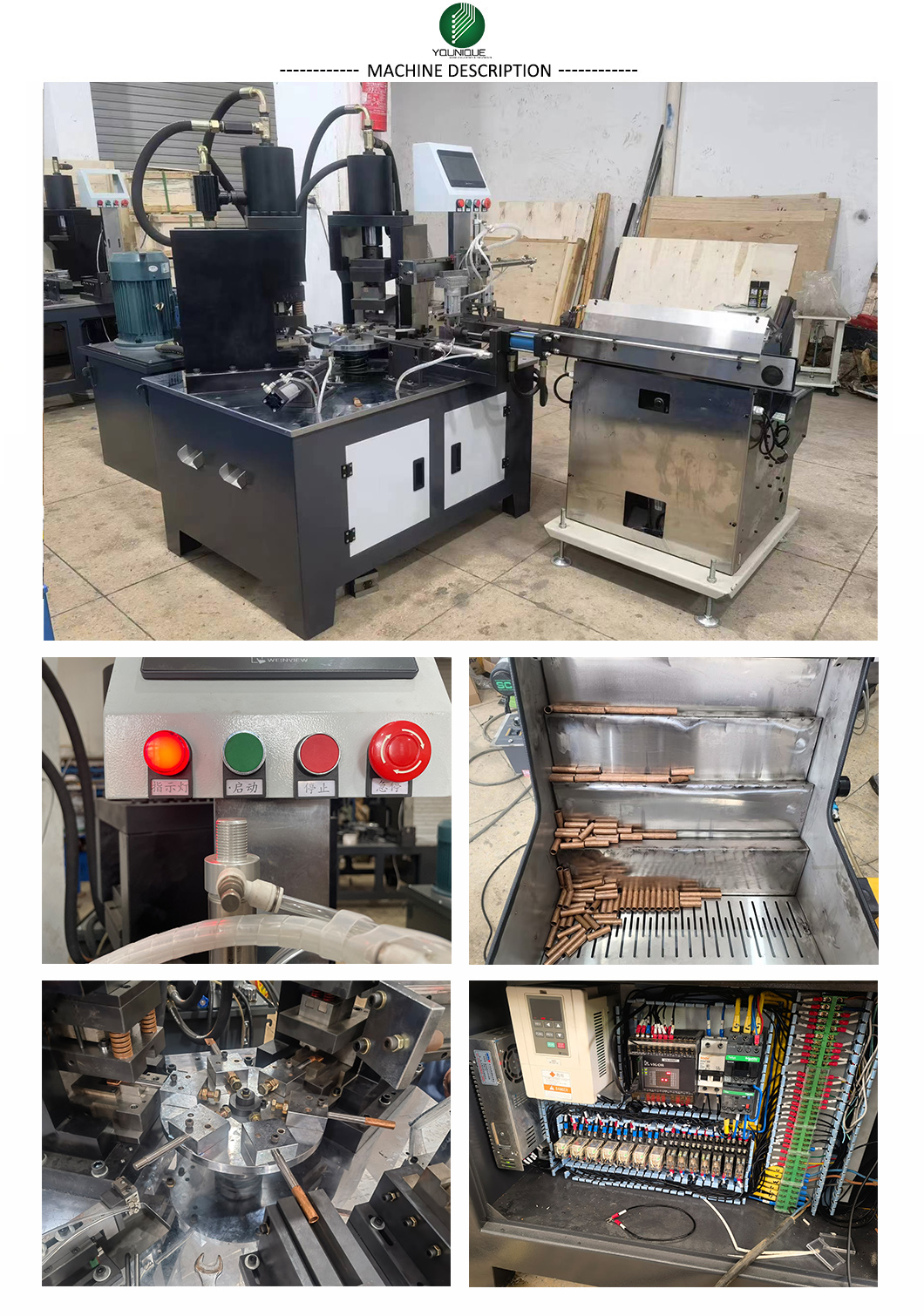

YQUNIQUE YE-30T Automatic Copper Tubular Cable Lug Manufacturing Machine is a high-efficiency automated production system designed for manufacturing copper tubular cable lugs. The machine integrates automatic tube feeding, flattening, punching, cutting, terminal forming, and finished product discharge into one continuous production process. Suitable for copper tubes of various specifications, it is widely used in cable lug manufacturing, electrical equipment, power distribution, renewable energy, and wire harness industries.
The Automatic Cable Lug Machine is a fully integrated manufacturing system designed for the high-speed production of copper tubular cable lugs. This advanced equipment automates the entire process—from raw tube feeding and precision cutting to flattening, punching, and final product discharge. Engineered for industrial-scale manufacturing, it ensures consistent quality and exceptional precision for electrical connectivity components.
| Model | YE-30T |
| Maximum Pressure of Cylinder | 30T |
| Cylinder Stroke | 100mm |
| Mould | Prepared by Customer |
| Machine Size | 1.1*0.8*1.3m |
| Machine Weight | 3Tons |
| Oil Pump Motor | 7500W |
| Hydraulic Station Size | 0.8*0.6*1m |
| Equipment Processing Efficiency | 18-19 times/Min |
| Supply Voltage | Three-phase 380V |
| Total Capacity | 12KVA |
| Air Pressure | ≥0.5Mpa |
The machine performs the entire cable lug manufacturing process automatically, significantly improving production efficiency and consistency.
By changing molds, the system can produce multiple cable lug sizes on one machine.
The equipment can achieve 18–19 pieces per minute, supporting stable large-scale manufacturing.
A high-precision hydraulic system ensures strong pressing force and stable forming quality.
The machine is designed with a user-friendly control system, allowing one operator to manage multiple machines simultaneously.
The machine automatically stops when raw materials run out, preventing equipment damage and production waste.
Cable Lug Production Range
The machine supports the production of multiple cable lug specifications.
Production Range
| Feeding Type | Cable Lug Size |
|---|---|
| Vibrating Feeder | 10 sqmm – 35 sqmm |
| Elevating Feeder | 50 sqmm – 300 sqmm |
Supported Mold Sizes
10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 sqmm
Applications
This machine is widely used in industries such as:
Electrical component manufacturing
Power cable accessories production
Electrical connection hardware production
It is an essential piece of equipment for factories producing copper cable lugs and electrical connectors.
1. What materials can this machine process?
The machine is designed for manufacturing copper tubular cable lugs from copper tubes of various specifications.
2. What products can this machine manufacture?
It is suitable for producing copper tubular cable lugs, battery cable terminals, grounding terminals, and other electrical connection components.
3. What is the production speed?
The machine can produce approximately 18–19 cable lugs per minute, depending on product specifications.
4. Can the machine produce different cable lug sizes?
Yes. Different cable lug specifications can be produced by changing the tooling or molds.
5. What information is required for quotation?
Please provide product drawings or samples, cable lug dimensions, copper tube specifications, and production capacity requirements.
6. Can customers send samples for testing?
Yes. Customers are welcome to send samples for process evaluation and machine testing before ordering.
7. Can the machine be customized?
Yes. The feeding system, tooling, hydraulic system, and machine configuration can be customized according to your production requirements.
8. How long is the lead time?
The lead time depends on the machine configuration and customization requirements. We will confirm the delivery schedule after technical evaluation.
9. Is overseas installation and technical support available?
Yes. YQUNIQUE provides remote technical support, installation guidance, operator training, spare parts supply, and overseas commissioning services.
10. Which industries use this machine?
It is widely used in cable lug manufacturing, electrical equipment production, power distribution, renewable energy, automotive electrical systems, and industrial electrical component manufacturing.
