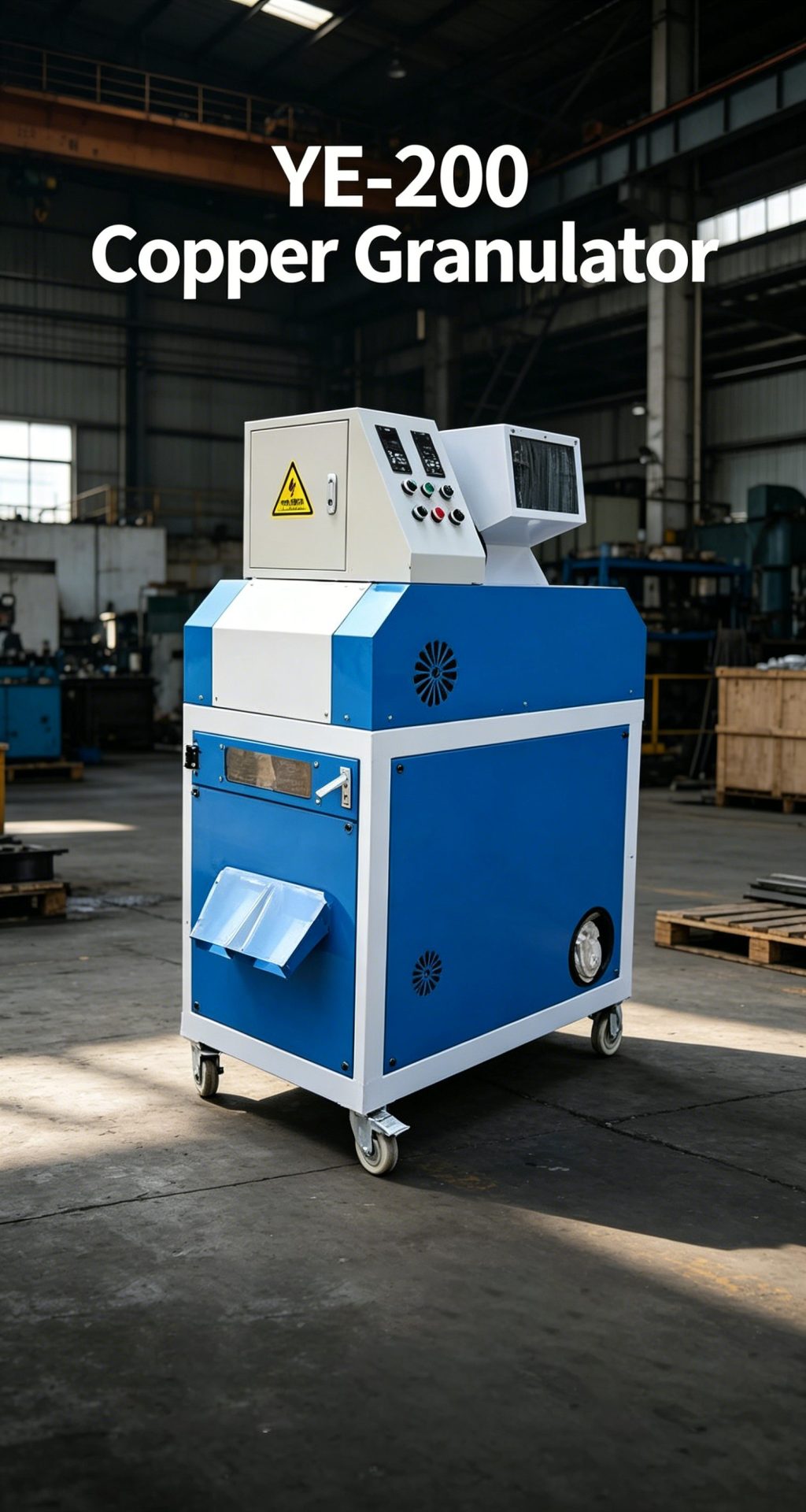

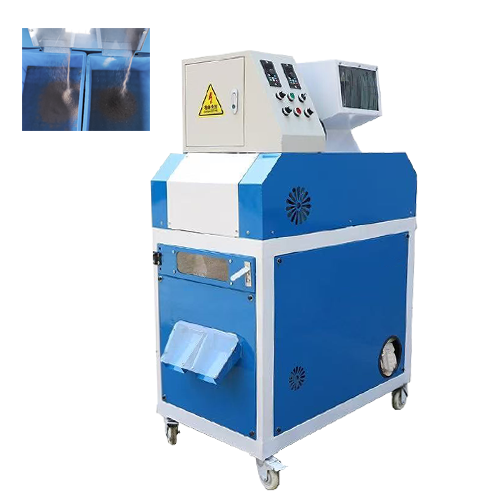

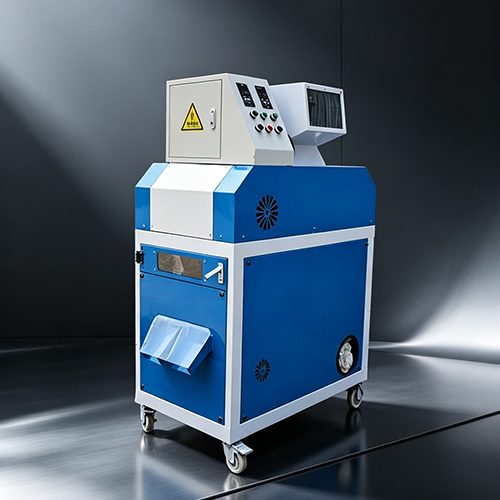

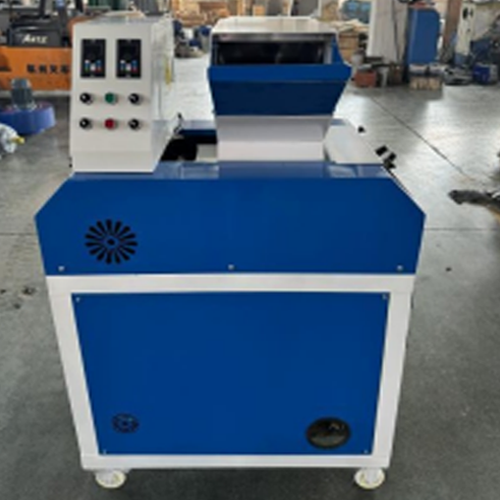

The YE-200 Copper Granulator Machine is a compact, movable recycling solution designed for both household and small-scale industrial use. This machine specializes in processing waste cables and wires to separate copper from plastic insulation through a high-precision dry separation process. Engineered for efficiency, it integrates crushing, airflow separation, and dust collection into a single, user-friendly unit that requires only about 2 square meters of floor space.
The YE-200 Copper Granulator is a compact, movable recycling solution designed for both household and small-scale industrial use. This machine specializes in processing waste cables and wires to separate copper from plastic insulation through a high-precision dry separation process. Engineered for efficiency, it integrates crushing, airflow separation, and dust collection into a single, user-friendly unit that requires only about 2 square meters of floor space.
| Technical Parameter | Value & Description |
| Model Number | YE-200 |
| Voltage | 220V/380V — 50HZ |
| Output (Capacity) | 60–90 kg/h |
| Total Power | 4.58KW – 5.58KW |
| Main Motor Power | 4KW |
| Adjustment Method | Frequency Converter |
| Physical Dimensions | 1000*580*1550mm (or 1520*1200*600mm) |
| Net Weight | 367kg |
| Packaging | Plywood |
High Processing Capacity: Delivers a stable output of 60–90 kg/h, making it suitable for consistent recycling operations.
Superior Separation Quality: Uses airflow separation and a vibration shaker to achieve high-purity copper recovery.
Compact & Movable Design: Small physical footprint and built-in wheels allow for easy placement and movement within your facility.
Adjustable Performance: Features frequency converters to adjust vibration frequency and bottom wind intensity based on the copper content of the material.
Integrated Dust Control: Equipped with a dust removal device and air bag to ensure a clean working environment.
Industries: Metal recycling centers, waste management facilities, and small-scale copper recovery plants.
Materials: Suitable for miscellaneous household wires, communication cables, and industrial waste wires with varying copper content.
Use Cases: Efficiently separates copper granules from plastic jackets without the use of water (dry process).
The YE-200 Copper Granulator operates through a synchronized mechanical and airflow process:
Feeding: Waste cables are fed into the feed inlet.
Crushing: The machine uses fixed and moving knives to shred the cables into small particles.
Separation: Particles pass over a vibration shaker where airflow separation distinguishes copper from plastic.
Collection: Pure copper granules exit through the copper outlet, while plastic and dust are channeled into their respective collection areas.
Manufacturing Experience: Produced by a manufacturer with over 20 years of expertise in the industry.
Full Accessory Kit: Every machine includes essential tools and spare parts, such as extra moving/fixed knives, crusher screens, and adjustment wrenches.
Customization Support: We offer support for special customization to meet specific regional voltage or material requirements.
Reliable Support: We provide clear operational guidelines and technical safety precautions, such as the 3–5 second power cutoff rule for jammed lines.
