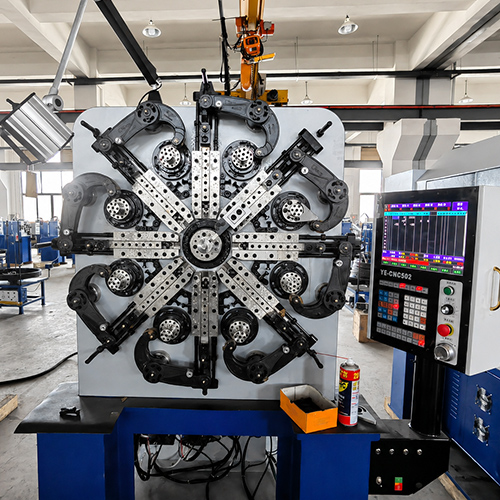

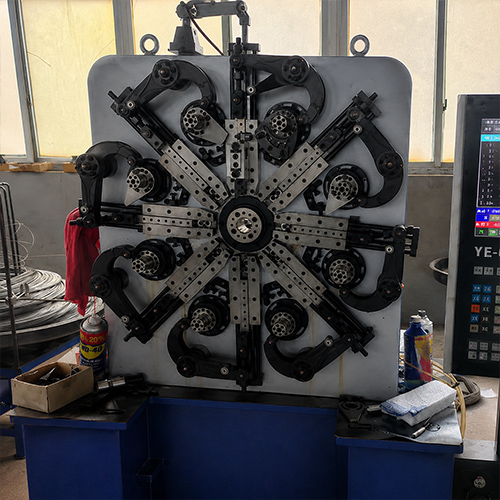

This Wire-Turning Spring Assembly Machine is an industrial-grade, high-precision CNC multi-axis spring and wire forming platform. Equipped with a high-power main servo and specialized tooling motors, it is custom-rated for continuous high-speed runs of various wire materials, merging digital intelligence, aggressive bending dynamics, and heavy-duty frame stability.
In modern hardware manufacturing and spring assembly, legacy 3-axis cam machines inevitably suffer from low setup efficiency and high scrap rates when handling complex shaped springs or dual-torsion clips. Engineered to break these production bottlenecks, our high-speed CNC 8-Jaw Wire-Turning Spring Assembly Machine seamlessly integrates a 360-degree forward/reverse wire rotation system with advanced digital controls, delivering a highly flexible, zero-defect automated hardware manufacturing solution.
This production platform introduces a revolutionary technical upgrade over legacy universal cam mechanisms. While conventional hardware is confined to single-axis feeding, this advanced design incorporates a dedicated Wire Transfer System and a specialized Curling & Spinning system. This setup empowers the wire feed shaft to execute 360-degree forward and reverse rotations during active processing, completely eliminating the setup limitations of tight-angle bends and complex arc forming. From dual-torsion and compression springs to highly intricate shaped wire forms for office stationery and consumer retail clips, the machine utilizes synchronized multi-angle cutting and crimping tools to finalize output in a single fast-paced cycle. This vastly reduces onboarding setup downtime and maximizes shop-floor adaptability.
| Project | Technical Parameters |
| Product Name | Wire-Turning Spring Assembly Machine |
| Wire Diameter of Coiled Material | φ0.2-2.5mm(iron wire φ0.5-3.5mm) |
| Max Outer Diameter of Coiled Spring | Max φ60mm |
| Power Supply | 380V 50Hz |
| Wire Feed Instruction Value | ±0.01-9999.99 |
| Max Wire Feed Speed | 0-110m/min |
| Cam Instruction Value | ±0.1°-359.9° |
| Cam Rotation Speed | 1-100RPM |
| Wire Feed Servo Power | 2.7KW |
| Core-Switching Servo Motor | 0.75KW |
| Cam Servo Motor | 2.7KW |
360° Wire-Turning Matrix: Solves the feeding limits of legacy hardware by allowing the wire to rotate forward/reverse mid-process, vastly simplifying custom shaped bending setups.
Detachable Curling & Crimping: Features a modular detachment function that delivers faster processing velocities for tight radius profiles and complex corner arcs, maximizing cosmetic and structural consistency.
Legacy universal spring machines often face tedious setups and efficiency bottlenecks when forming complex shaped springs for stationery clips or laundry pegs due to fixed feeding limits. Merging a versatile wire-turning system with smart cam controls, our CNC 8-Jaw Wire-Turning Spring Assembly Machine delivers a highly flexible and user-friendly automated wire forming solution.
Reliability Commitment:Built with an anti-vibration chassis structure, this equipment is well-suited for regular multi-shift operations, aiming to help the production line maintain a relatively steady output pace and reduce downtime caused by mechanical wear.
Practical Application: Mainly used for forming torsion springs, R-clips, and various conventional shaped wire forms needed for daily laundry pegs, clothes pins, and office stationery clamps.
Core Value: Aiming at the standard market demands for surface appearance and output speed, the feeding and forming mechanisms help mitigate wire surface scratching, thereby providing better boundary conditions for subsequent assembly processes.
Simply input the required spring geometry into the CNC panel, and the machine automatically synchronizes feeding, multi-axis bending, and precision cutoff.
CNC Programming: Input specialized cam degrees, wire transfer rotation variables, and feed lengths via the controller panel.

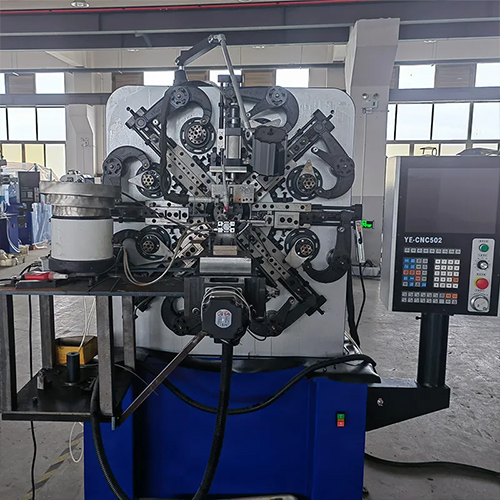

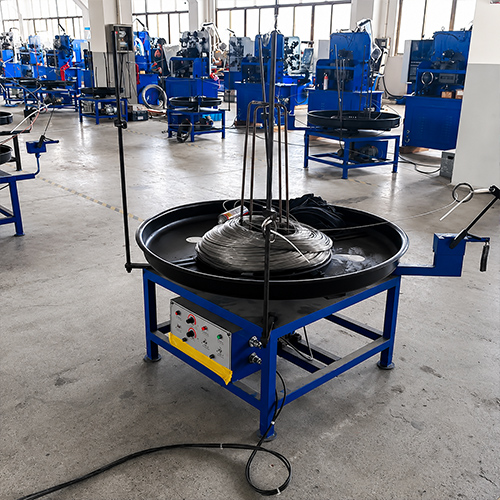

Automated Forming: The wire reel feeds raw material seamlessly while the 8-jaw slides and turning system coordinate for high-velocity, multi-angle shaping.
Precision Cutoff: Integrated cutters strike at the exact microsecond required, dropping finished springs with zero manual touchpoints.
