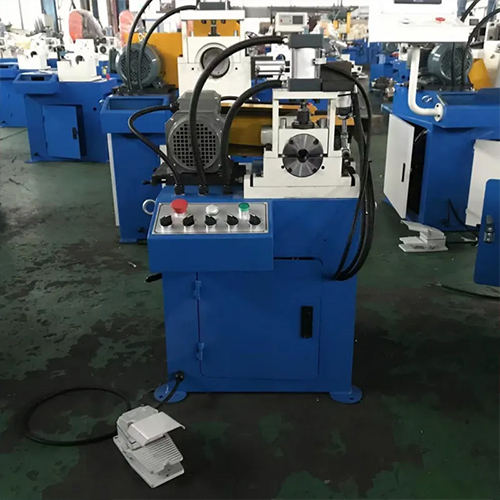

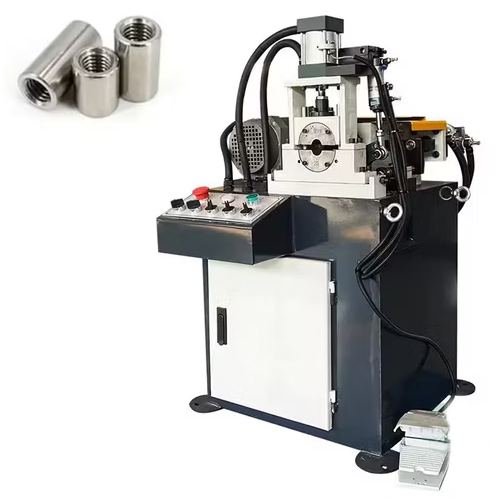

This Pneumatic Single Head Chamfering Machine is an industrial-grade, precision horizontal end-beveling platform. Combining user-friendly manual feeding with automated pneumatic clamping and feed dynamics, it is custom-rated for high-velocity end-facing and edging of various copper, aluminum, iron, and stainless steel pipes or solid bars, blending high-efficiency cutting, bulk holding stability, and a compact footprint.
In modern tube-processing and hardware manufacturing shop floors, legacy manual edge-trimming setups or simplistic benchtop tools frequently encounter throughput and quality bottlenecks when handling batch production of metal circular pipes or solid bars. Inconsistent manual clamping pressure and erratic tool advancing velocities typically introduce shifting depth variance and excessive edge burrs, which escalates scrap rates during downstream assembly stages.
To solve these operational challenges, this platform introduces the Pneumatic Single Head Chamfering Machine. Engineered with a robust horizontal configuration, the workpiece is guided via the alignment tray for manual feeding, followed by a high-output pneumatic actuator that executes automated, tight clamping. Within a single brief stroke, the motorized cutter spindle advances toward the material, finalizing the inner bevel, outer edge, and flat facing on the tube or bar end simultaneously. This pneumatically linked movement grants processing cross-sections exceptional geometric consistency; by eliminating tedious manual wrench clamping entirely, it vastly compresses the manufacturing cycle per piece, rendering it an incredibly cost-effective asset for hardware enterprises transitioning toward semi-automated production.
| Performance Item | Specifications |
| Machine Type |
Automatic Metal Tube Double Head Chamfering Machine |
| The Work Piece Length |
Bar 5-26mm, Pipe 5-60mm |
| Style |
Horizontal Type |
| The External Air Pressure |
0.6-0.8 MPa |
| The Motor Power |
1.5kw |
| Specification |
1000*900*1400MM |
| Production Capacity |
1000 Set/Year |
Our Pneumatic Single Head Chamfering Machine embodies years of specialized manufacturing engineering—from the precision clamping dies and rigid casting headpieces to renowned brand electrical components—all optimized to deliver the following technical highlights and practical processing advantages:
Three-in-One Integrated Cutter Head: A precisely engineered combination tool holder framework that simultaneously accommodates inner, outer, and flat-facing inserts.Eliminates the cycle overhead of multi-step sequential processing by finalizing the inner bevel, outer edge, and face leveling of the workpiece in a single pneumatic stroke.

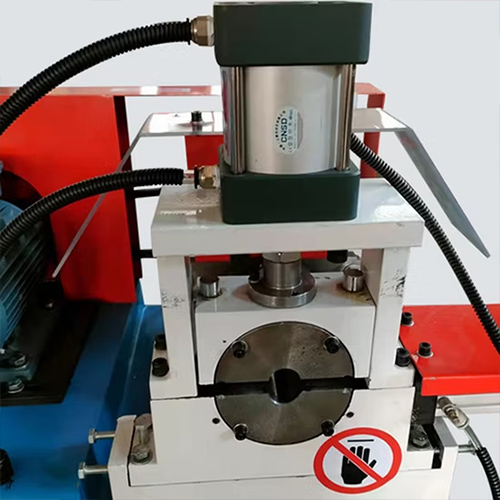

Automated Pneumatic Clamping & Foot Pedal Control:Utilizes a high-output industrial air cylinder to drive the split-combination clamping dies, paired with a responsive foot switch.

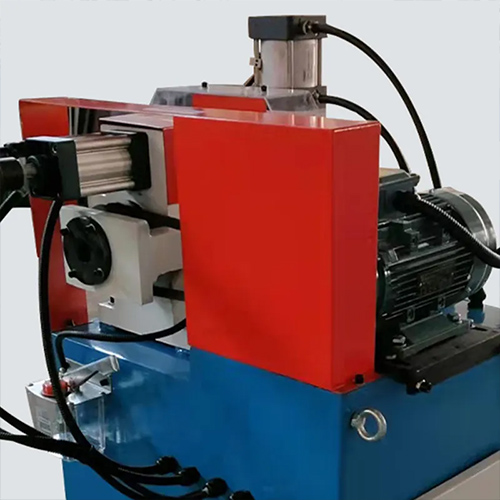

Cast Iron Headpiece & Rigid Rail Support: The core headpiece components are engineered from high-rigidity heavy castings, paired with a reinforced sliding track structure for the feed travel.
Modular Quick-Change Clamping Dies: The center clamping dies are precision-machined from high-quality 45# or S45C steel, boasting a modular split-assembly configuration.

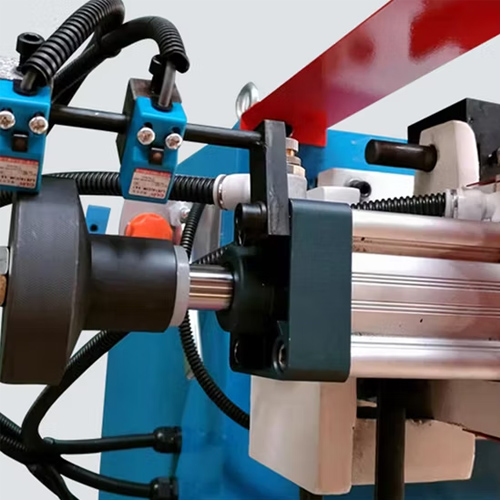

Industrial Fluid-Power Feed Adjustment:Utilizes industrial-grade pneumatic/hydraulic cylinders as the primary motive power for the cutting spindle’s reciprocal feed.Delivers a relatively steady feed force, eliminating inconsistent manual advancing velocity and helping reduce unexpected tool breakage while mitigating edge burrs.
Built with an anti-vibration horizontal casting chassis and industrial fluid drive systems, this equipment is well-suited for regular multi-shift operations, aiming to help the production line maintain a relatively steady output pace and reduce downtime caused by mechanical wear.

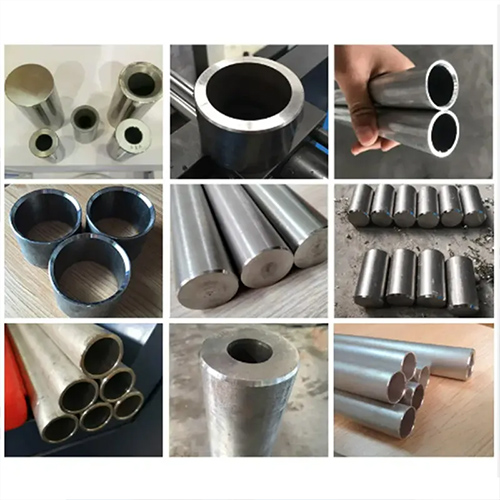

Metal Furniture & Hardware Tube Production:Aiming at standard market demands for smooth edge finishes and consistent output speed, the simultaneous dual-end trimming helps mitigate edge flashes, thereby providing better boundary conditions for subsequent plastic end-cap inserting or surface coating.
Automotive Parts & Bushing Sleeve Processing:Suitable for standard deburring and chamfering on both ends of automotive shock absorber sleeves, exhaust pipe segments, bushings, bearing tubes, and spacer liners.
Construction Hardware, Handrails & Steel Frameworks:Used for end-facing and edge-trimming of high-frequency welded steel pipes, stainless steel stair handrails, scaffolding connection tubes, and awning support frames.Clearing uneven end-faces and heavy burrs helps improve the joint tightness when tubes enter downstream automated welding processes, mitigating poor welds or arc instability caused by localized edge flashes.
Sports Equipment & Bicycle Frame Manufacturing:Tailored for dual-end chamfering and section-facing on treadmill steel frames, dumbbell racks, and circular tubes or solid connecting rods for bicycle and e-bike frames.
Sanitary Hardware & HVAC Copper Tube Processing:Utilized for pre-flaring chamfering or flat end-facing on plumbing hose connectors, brass faucet straight pipes, and copper tubing systems for air conditioning and refrigeration units.Fluid piping systems dictate delicate requirements for bevel surface finish and taper angles.
