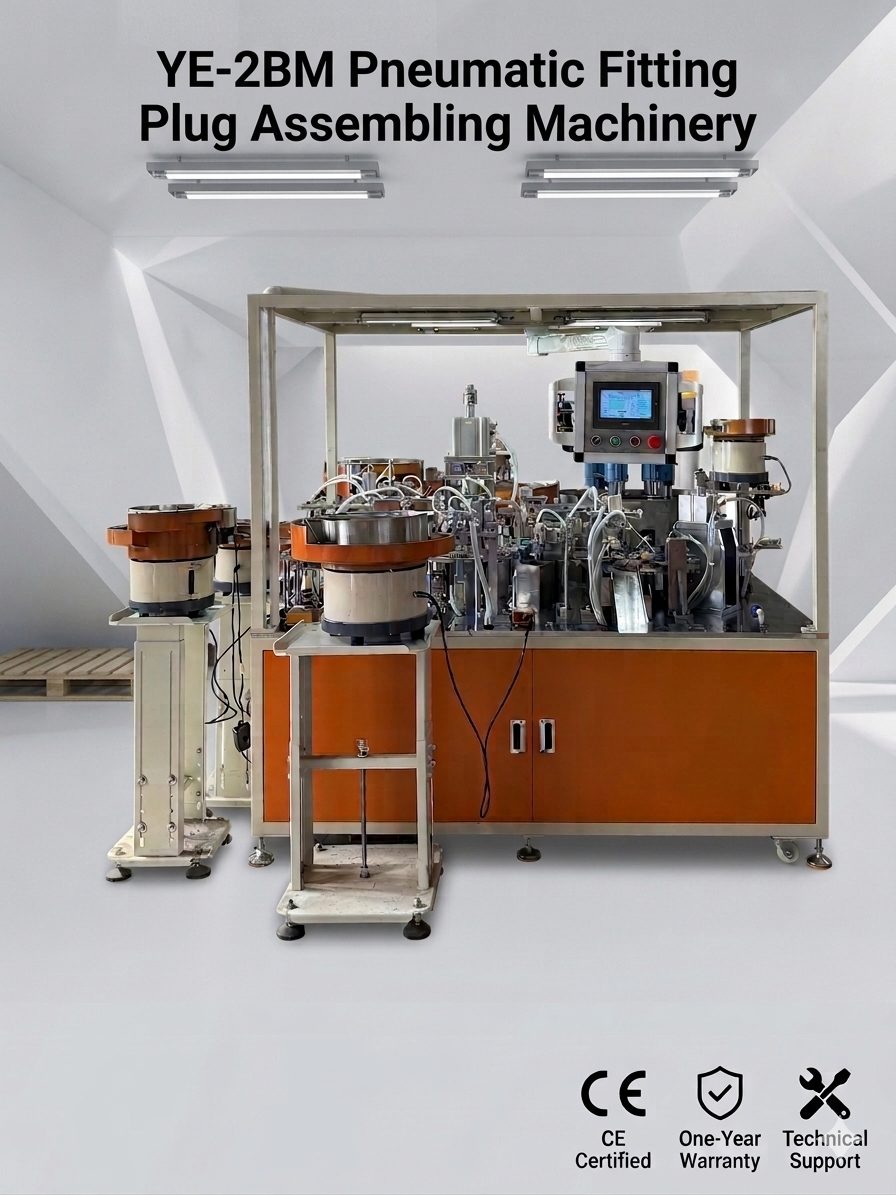

This compact Pneumatic Fitting Plug Assembling Machinery by Yqunique easily assembles straight couplers, L-joints, and check valves. Featuring smart vibratory feeding and PLC sensors, this reliable pneumatic fitting plug assembling machinery automatically rejects defects to ensure a flawless speed of 30-35 PCS/Min.

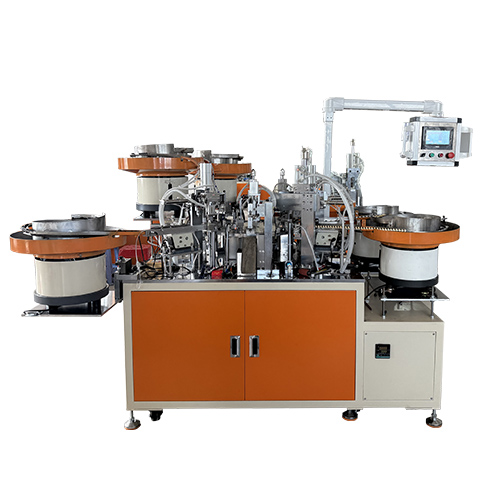

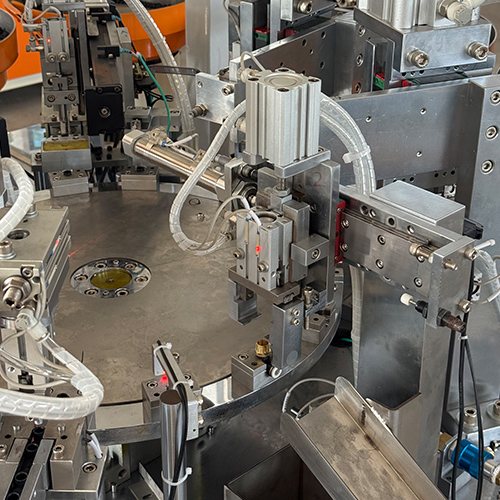

This Pneumatic Fitting Plug Assembling Machinery is an intelligent automation assembly system tailor-made for quick connectors in the pneumatic industry and automotive parts manufacturing. By integrating a multi-station high-frequency vibrating disc feeding mechanism with a high-precision rotary index turntable, and controlled via an advanced PLC with a responsive touch-screen HMI, it delivers seamless, non-stop automated sorting, precise inspection, and reliable pressing. It offers wide compatibility for universal straight, bent, and multi-way fitting models, making it the ultimate solution for factories aiming to lower labor costs, eliminate defects, and transition to a fully automated shop floor.
| project | Technical parameters |
| Product Name | Pneumatic Fitting Plug Assembling Machinery |
| Production | 30-35 PCS |
| Control Type | PLC Control |
| Power Supply | 220V AC 50HZ |
| Pressure | >0.5 MPa |
| Specification | Approx. 1200mm x 700mm x 1600mm |
Multi-Model Universal Capability: Breaking the bottleneck of single-variety machines, our system adopts a highly compatible design suitable for universal straight, bent, and multi-way pneumatic fittings. [Customer Value] Minimizes secondary equipment reinvestment and shortens changeover time, maximizing your overall ROI.

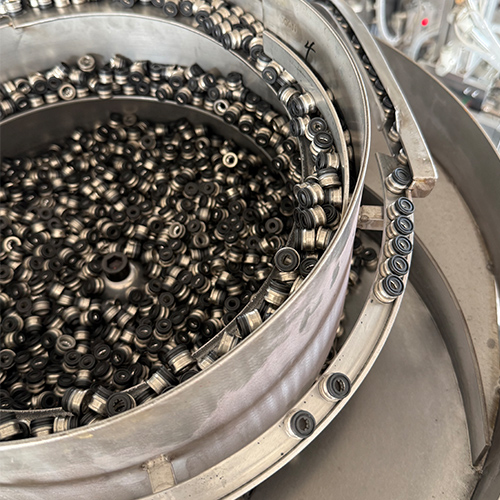

Smart Vibrating Disc & Conveyor Feeding: Features synchronized automatic vibrating discs working alongside heavy-duty tray conveyor belts. Guarantees 100% orderly material alignment and prevents mechanical jamming, allowing stable 24/7 continuous operation.
Industrial PLC & Ergonomic HMI Screen: Driven by an advanced industrial PLC control core combined with an intuitive graphical touch interface. [Customer Value] Simplifies operation so that operators can master it within half a day, eliminating reliance on highly specialized technicians.
Engineered with a high-rigidity structural frame, premium pneumatic valves, and a rigorous error-proofing system, this machinery delivers unmatched industrial durability for high-intensity, high-volume production environments.
Automotive Parts Manufacturing Plants: Mass-produces standard or complex automotive pneumatic check valves and brake-system push-in fittings with zero tolerance for missing components.

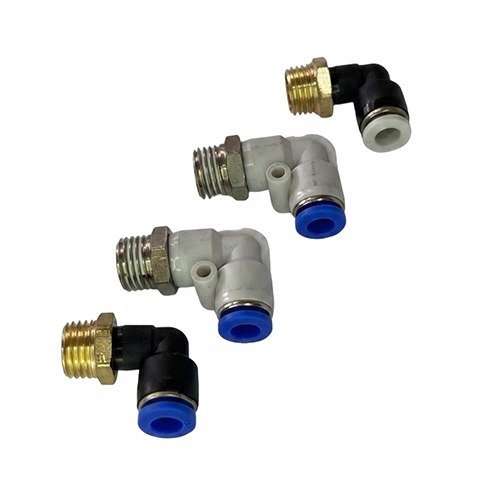

Pneumatic Components & Tube Fitting Factories: Automates the volume assembly of standard brass, stainless steel, or plastic quick-release air couplers to meet fast-moving market demands.
Integrated Automated Assembly Lines: Serves as a modular cell within large-scale smart factory networks, supporting high compatibility and digital output reporting.
Powered by an intelligent HMI, the machine enters full automatic mode with a simple one-button start after initial parameters are configured. Operators only need to bulk-load the connector housings, springs, collets, and O-rings into their respective vibrating hoppers.
Bulk Loading: Refill the vibrating bowls periodically; ensuring consistent material supply allows high-speed non-stop runs.
Pressure Check: Verify that the external factory air supply is stable and maintained above 0.5 MPa before booting.
One-Click Formula Switch: To assemble different fitting geometries, simply choose the preset program on the HMI and perform a brief fixture adjustment.
Sorting Collection: With qualified and defective products automatically split, operators only need to collect boxed products from the OK chute.
Decades of Expertise: Over 20 years of experience in manufacturing high-precision automation machinery.
Factory-Direct Pricing: Competitive pricing with direct technical support from the manufacturer.
Customization Capability: Backed by an experienced non-standard automation R&D team, we offer fully available customization ranging from specialized fixtures to bespoke production layouts.
Reliable Support: Comprehensive after-sales service, including remote technical assistance and spare parts availability.
YQUNIQUE provides 1 year warranty period, during which our company will undertake all after-sale services and spare parts free of chargee
QUNIQUE provides each customer with a more valuable automated custom machine solution
We owe it to each of our customers, YQUNIQUE uses parts from world famous brands to improve the working performance of our machines..
We not only provide you with custom automatic machines, but also give you a solved solution for electronic and electric site.
