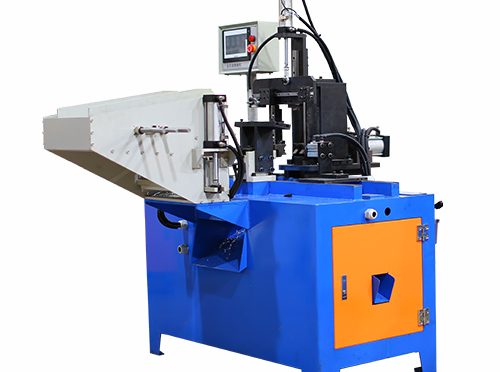

Automatic Chamfering Machine

Leave a comment

OverView

Equipped with PLC panel control, automatic tube chamfering machine can be divided into vibrating plate and manual discharging.

The feeding of our YE-Z2H automatic tube chamfering machine is controlled by a vibrating plate. Various configuration possibilities allow cutting lengths from 8 to 100mm for a variety of applications.

Technical Parameters

project Technical parameters
The power supply voltage 380v 50Hz
The external air pressure 0.6-0.8MPa
The workpiece length 8-100mm
Machining diameter  pipe tube ∅2.5-∅16,bar tube ∅2-∅6
Processing speed Processing times 30 to 40 times per minute
The length of tolerance ±0.05mm
The motor power 0.75KW/1.1KW
Spindle speed 1400r/min.2800r/min
Feeding way vibrating disk
Processing range Suitable for all kinds of metal pipe. Inside. Outside. Two head chamfering flat bar
Machine size/weight 1220mm*800mm*1600mm/395kg

Manufactures Description

Automatic Chamfering Machine

An optimal combination of proven state-of-the-art components leads to outstanding production rates.

  • Vibration plate controls feeding.
  • The center point is easy to adjust, and the length and size are adjusted by rack and pinion, which is accurate and stable.
  • The cutter head adopts taper type, which is easy to grind.

Automatic tube chamfering machine is a kind of pipe and bar processing method.

There are many factors that can influence your choice of automatic tube chamfering machine. For example, we offer four different models of automatic tube chamfering machines, all serving different specifications and needs.



This equipment is suitable for copper pipes, aluminum tubes, copper bar, aluminum bar double end chamfering. And it can simultaneously chamfer internal and external angles and end faces.

This machine can realize automatic loading, feeding and chamfering process.

Automatic Chamfering Machine

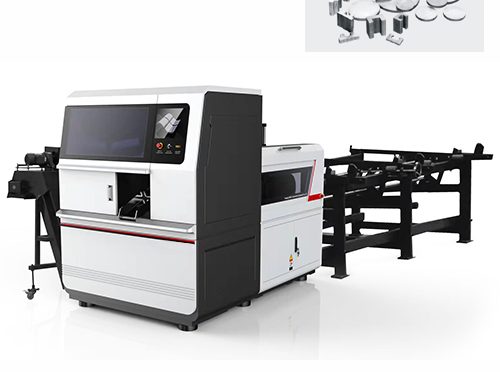

High Speed Circular Saw Cutting Machine

Leave a comment

Overview

Fully automatic tube cutting machine adopts horizontal structure, including cooling system, oil pressure system, adjustment system, which is easy to operate and safe.

This machine has the characteristics of stable structure, good stiffness, light weight and high dynamic response. It is a high-performance automatic tube cutting machine.

Technical Parameters

project Technical parameters
The power supply voltage 380v
The external air pressure 0.5-0.7MPa
The workpiece length 700mm
Machining diameter  pipe tube ∅15-∅70
The motor power 7.5KW-4P
Machine size/weight 1950mm*1300mm*1700mm/3100kg

Manufactures Description

High Speed Circular Saw Cutting Machine



  • The main circuit of the machine is controlled by imported PLC computer, the operation is simple, sensitive, convenient maintenance.
  • Automatic feeding adopts servo motor, precision lead screw, linear bearing, and its cutting accuracy is ±03mm.
  • Counters can set the processing time, it will stop automatically after completion.
  • The counter can accumulate a day’s work.



When the processing size changes, just change the size in the text display to work, without manual positioning or hardware positioning.

And automatic tube cutting machine is suitable for cutting round tube, square tube, rectangular tube and many kinds of special-shaped pipe and bar.

High Speed Circular Saw Cutting Machine

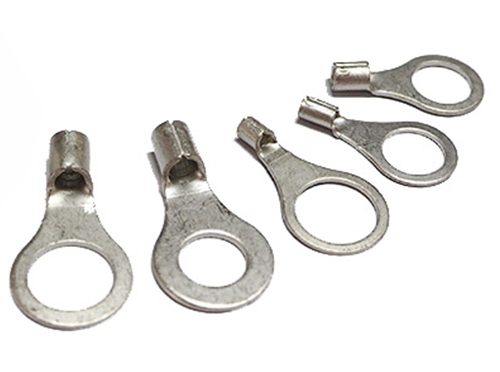

Ring Terminals

Leave a comment

Overview

Ring terminals are known for the semi-permanent connections they produce.

To make ring terminals better, they can easily be used with two or more wires, depending on the application.

Ring terminals are the safest tongue terminals and are often chosen for their durability, ease of use, and longevity in harsh conditions.

Technical Parameters

Terminal body: copper                 Insulation:Vinyl

Temperature:75℃                          Plating: Tin

Conductor section :0.5-1.5mm2 (A.W.G 22-16)   Max Current:Imax=19A
Item No American d2Φ(mm) Dimension(mm) Color
Bolt number B L F H DΦ
RV1.25-3.2 #4 3.2 5.7 17.8 4.95 10 4.3  Red
RVS1.25-3.5 #6 3.7 5.7 17.8 4.95
RVM1.25-3.5 #6 3.7 6.6 20.1 6.3
RVL1.25-3.5 #6 3.7 8 21.5 7
RVS1.25-4 #8 4.3 6.6 20.1 6.3
RVL1.25-4 #8 4.3 8 21.5 7
RVS1.25-5 #10 5.3 8 21.5 7
RVL1.25-5 #10 5.3 9.8 23 8.5
RVS1.25-6 1/4 6.4 9.8 23 8.5
RV1.25-6 1/4 6.4 11.6 27.5 11.1
RV1.25-8 5/16 8.4 11.6 27.5 11.1
RV1.25-10 3/8 10.5 13.6 31.6 13.9
RV1.25-12 1/2 13 19.2 36 16.5



Conductor section :1.5-2.5mm2 (A.W.G 16-14)   Max Current:Imax=27A
Item No American d2Φ(mm) Dimension(mm) Color
Bolt number B L F H DΦ
RV2-3.2 #4 3.2 6.6 17.8 4.3 10 4.9  Blue
RVM2-3.5 #6 3.7 6.6 20.1 4.3
RVL2-3.5 #6 3.7 8.5 21.5 75..0
RVS2-4 #8 4.3 6.6 20.1 7.75
RVL12-4 #8 4.3 8.5 21.5 7.0
RVS2-5 #10 5.3 8.5 21.5 7.75
RVL2-5 #10 5.3 8.5 23 7.75
RVS2-6 1/4 6.4 9.5 23 7.25
RV12-6 1/4 6.4 12.0 27.5 11.0
RV2-8 5/16 8.4 12.0 27.5 11.0
RV2-10 3/8 10.5 13.6 31.6 13.9
RV2-12 1/2 13 19.2 36 16.5



Conductor section :2.5-4mm2 (A.W.G 14-12)   Max Current:Imax=37A
Item No American d2Φ(mm) Dimension(mm) Color
Bolt number B L F H DΦ
RV3.5-4 #8 4.3 8.0 24.5 7.7 13.0 6.2  Black
RVS3.5-5 #10 5.3 8.0 24.5 7.7
RVL3.5-5 #10 5.3 12.0 27.9 7.7
RV3.5-6 1/4 6.4 12.0 27.9 7.7
RV3.5-8 5/16 8.4 15.0 32.0 13.5
RV3.5-10 3/8 10.5 15.0 32.0 13.5



Conductor section :4-6mm2 (A.W.G 12-10)   Max Current:Imax=48A
Item No American  d2Φ(mm)  Dimension(mm)    Color
Bolt number B L F H DΦ
RV5.5-3.5 #6 3.7  7.2  21.4  5.9  13.0  6.7    Yellow
RVS5.5-4 #8 4.3  7.2  21.4  5.9
RVL5.5-4 #8 4.3  9.5  25.5  8.3
RV5.5-5 #10 5.3  9.5  25.5  8.3
RV5.5-6 1/4 6.4  12.0  31.5  13.0
RV5.5-8 5/16 8.4  15.0  33.7  13.7
RV5.5-10 3/8 10.5  15.0  33.7  13.7
RV5.5-12 1/2 13.0  19.2  38.1  16.0

Manufactures Description

crimp terminal

The advantage of ring terminals is that they create a semi-permanent connection point, which can be accessed and adjusted if needed.

They are often used in applications where the point of connection, materials used, or connected equipment may change.

Their versatility allows them to perform in ways that no other terminals can handle.

You will usually find them used on bus bars and other equipment where studs are present.

Ring terminals offer benefits that other types of terminals don’t, such as fork terminals.

Ring terminals are implemented by boat builders, repair shops, and everyday boaters on a daily basis.

They are some of the most popular terminals in use today. People use our ring terminals not only to install or repair connections but also as replacement parts.

They are known for their ease of installation and durability. When used with hand tools, our ring terminals can be used to create high-quality electrical connections.

Ring Terminals apply

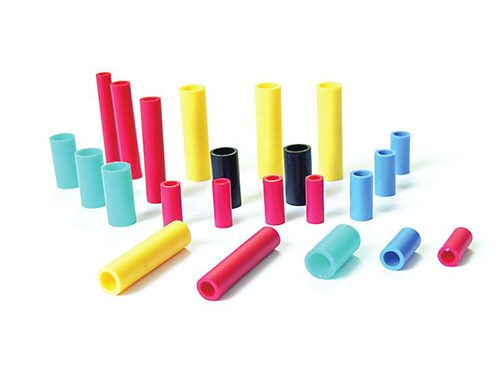

PVC Sleeve

Leave a comment

Overview

PVC sleeve is the safety protection equipment that must be installed at the insulation wiring end of power supply equipment, such as transformer, lightning arrester, and outdoor switch.

The product can effectively prevent the original exposed power equipment end due to people, electricity, small animals or sundry contact and lap, wet flash salt fog and chemical gas corrosion caused by the power outage, so as to avoid the resulting huge economic loss.

Technical Parameters

Please provide us your PVC SLEEVE ID*OD*LENGTH and color inquiry.

We can provide customization.

Material: PVC (polyvinyl chloride)

Color: Red, Blue, Black, Yellow, Green, and so on

Working Temperature: Normal temperature, the highest temperature can reach 80℃

Functions: 1. Protection and insulation of terminal lug.

2. Distinguish the color.

Manufactures Description

pvc sleeve material

Compared with rubber pipe protection spring products and other sheath products, PVC sleeve has many advantages, such as excellent convenience, environmental protection, and energy saving.

The inner surface of the PVC sleeve is generally flat, and the outer surface is divided into planes or arcs.

PVC casing is mainly used for the protection of various engineering machinery and mining hydraulic equipment and wear-resistant wire and cable.

Because it can completely cover the product being protected, it provides wear resistance and UV protection on many bar objects.

PVC Sleeve terminal lug

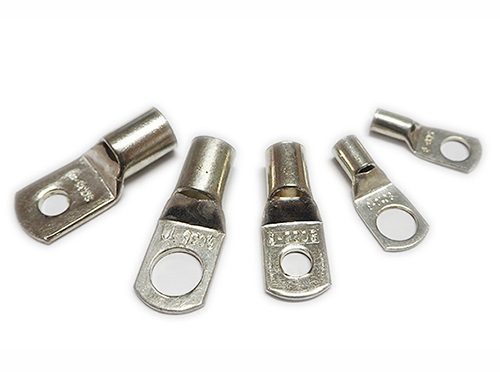

Copper Tube Terminals(Sc-Type)

Leave a comment

Overview

The terminals of 1.5 mm²to 500 mm²copper conductors are made of copper 99.9%.

As standard, we manufacture tube terminals through connectors (type SC), but also custom connectors in large quantities. The Unique electric fits IEC 62321 stranded conductors.

Technical Parameters

ITEM NO Screw dia d2∅(mm) Dimension(mm) Cable size(mm2)
W ∅d D L L1 S
SC1.5-5 #10 5.3 8 1.8 3.3 16 – – 1.5
SC2.5-4 #8 4.3 8 2.4 4 19.6 8 – 2.5
SC2.5-5 #10 5.3 8 2.4 4 19.6 8 – 2.5
SC2.5-6 1/4 6.5 10 2.4 4 21 8 – 2.5
SC4-4 #8 4.3 10 3.1 4.8 21 – – 4
SC4-5 #10 5.3 10 3.1 4.8 21 – – 4
SC4-6 1/4 6.5 10 3.1 4.8 21 – – 4
SC6-4 #8 4.3 10 3.8 5.5 25.5 – – 6
SC6-5 #10 5.3 10 3.8 5.5 25.5 – – 6
SC6-6 1/4 6.5 10 3.8 5.5 25.5 – – 6
SC10-6 1/4 6.5 12.6 4.5 6.2 27 10 1.1 10
SC10-8 5/16 8.4 12.6 4.5 6.2 27 10 1.1 10
SC16-6 1/4 6.5 12.6 5.5 7.2 29.5 10.5 1.3 16
SC16-8 5/16 8.4 12.6 5.5 7.2 29.5 10.5 1.3 16
SC25-6 1/4 6.4 15 7 9 33 12 1.65 25
SC25-8 5/16 8.4 15 7 9 33 12 1.65 25
SC25-10 3/8 10.5 15 7 9 33 12 1.65 25
SC35-6 1/4 6.5 15.2 8.2 10.6 38 14.2 2.5 35
SC35-8 5/16 8.4 15.2 8.2 10.6 38 14.2 2.5 35
SC35-10 3/8 10.5 15.2 8.2 10.6 38 14.2 2.5 35
SC50-8 5/16 8.4 18.5 10 13 44.5 18 2.9 50
SC50-10 3/8 10.5 18.5 10 13 44.5 18 2.9 50
SC50-12 1/2 13 18.5 10 13 44.5 18 2.9 50
SC70-8 5/16 8.4 21.4 11.5 15 54.2 20.4 3.5 70
SC70-10 3/8 10.5 21.4 11.5 15 54.2 20.4 3.5 70
SC70-12 1/2 13 21.4 11.5 15 54.2 20.4 3.5 70
SC95-10 3/8 10.5 25.5 13.5 17.4 59 23.4 3.9 95
SC95-12 1/8 13 25.5 13.5 17.4 59 23.4 3.9 95
SC120-10 3/8 10.5 28.3 15.5 19.9 66.7 24.6 4.5 120
SC120-12 1/2 13 28.3 15.5 19.9 66.7 24.6 4.5 120
SC120-14 9/16 15 28.3 15.5 19.9 66.7 24.6 4.5 120
SC120-16 5/8 17 28.3 15.5 19.9 66.7 24.6 4.5 120
SC150-12 1/2 13 31 17 21.7 74.5 29.5 4.5 150

Manufactures Description

Copper Tube Terminals(Sc-Type)

A cable lug (SC) is mainly used for terminating conductors or connecting bus bars and copper wire equipment outlets.

SC connectors are used to connect copper conductors in cable assemblies. They can also be used for straight splicing of earth lines.

Check the number of crimps

In our standard range, there are tube terminals with one or two holes.

In addition, there are straight-through connectors for service and road lighting cables and pipe terminals. Normally, one crimp needs to be 150 mm²and two or three crimp needs more cross-sectional area.

Before crimping, check the recommended crimping quantity on the package label.

Copper Tube Terminals(Sc-Type)

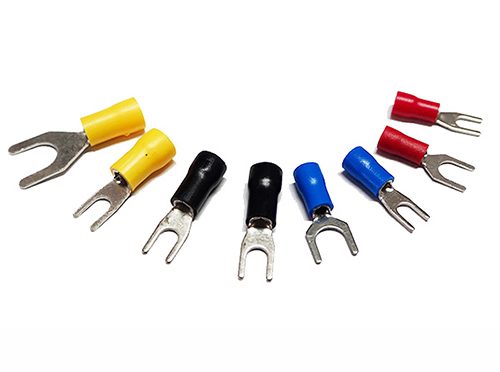

Fork Terminal

Leave a comment

Overview

A fork terminal can provide a number of benefits that make it a reliable choice.

A fork terminal provides longevity over other terminals as well as durability.

Each fork terminal is also versatile in its purpose, as it can be used for applications that other types of terminals and connectors cannot use.

The fact is, the holding screws will come loose over time and a standard terminal may disconnect.

Technical Parameters

Cable Size:0.5-1.5mm2    (A.W.G 22-16)         Max Current:1max=19A
Item No USA d2Φ(mm) Dimension(mm)
Screw   B   L    F    E  DΦ    d
SNB1.25-3.2 #4 3.2 5.7 16 6.5 4.8 3.4 1.7
SNBS1.25-3.5 #6 3.7 5.7 16 6.5
SNBL1.25-3.5 #6 3.7 6.4 16 6.5
SNBS1.25-4 #8 4.3 6.4 16 6.5
SNBM1.25-4 #8 4.3 7.2 16 6.5
SNBL1.25-4 #8 4.3 8.1 16 6.5
SNBS1.25-5 #10 5.3 8.1 16 6.5
SNBL1.25-5 #10 5.3 9.5 16 6.5
SNBS1.25-6 1/4 6.4 9.5 16 6.5
SNBL1.25-6 1/4 6.4 12 22 11
SNB1.25-8 5/16 8.5 14.5 25 12.55
Conductor section:1.5-2.5mm2     (A.W.G 16-14)     Max Current:1Max=27A
Item No USA d2Φ(mm) Dimension(mm)
Screw B L F E DΦ d
SNB2-3.2 #4 3.2 5.7 16 6.5 4.8 4.1 2.3
SNBS2-3.5 #6 3.7 5.7 16 6.5
SNBL2-3.5 #6 3.7 6 16 6.5
SNBS2-4 #8 4.3 6.4 16 6.5
SNBM2-4 #8 4.3 7.2 16 6.5
SNBL2-4 #8 4.3 8.1 16 6.5
SNBS2-5 #10 5.3 8.1 16 6.5
SNBL2-5 #10 5.3 9.5 16 6.5
SNBS2-6 1/4 6.4 9.5 16 6.5
SNBL2-6 1/4 6.4 12 22 11
SNB2-8 5/16 8.5 14.5 25 12.55
Conductor section:2.5-4mm2  (A.W.G14-12)   1max=37A   Thickness:1.0mm
ITEM NO. American d2Φ(mm)                Dimension(mm)
Bolt number B L F E DΦ dΦ
SNB3.5-3 #4 3.2 5.7 18.3 7 6 5 3
SNB3.5-4 #8 4.3 8 18.3 7
SNB3.5-5 #10 5.3 8 18.3 7
SNB3.5-6 1/4 6.4 12 21.5 12.1
Conductor section:4-6mm2   (A.W.G12-10)   1max=48A  Thickness:1.0mm
ITEM NO. American d2Φ(mm)                 Dimension(mm)
Bolt number B L F E DΦ dΦ
SNB5.5-3.5 #6 3.7 8.3 19.5 7.5 6.8 5.6 3.4
SNBS5.5-4 #8 4.3 8.3 19.5 7.5
SNBL5.5-4 #8 4.3 9 19.5 7.5
SNB5.5-5 #10 5.3 9 19.5 7.5

Manufactures Description

crimp terminal

A fork terminal can be used in applications where accessibility and future changes are important considerations.

When used with busbars, they allow the user to make changes without having to disassemble the entire connection.

They are ideal for installing new wiring and replacing parts. If you have faded terminals, damaged terminals, or cracked terminals, then these may just be the terminals that you are looking for. All you need is the crimp tool and some fork terminals depending on the application.

The fork terminals of Yqunique are 22-18 AWG, 16-14 AWG, and 12-10 AWG.

This means that you can get different sizes and different types. We provide many heat shrink, nylon, vinyl, and non-insulating fork terminations. In this way, we ensure that you can get the exact type of fork terminal you are looking for.

One question that we often receive is how important the type of insulation is.

fork terminal

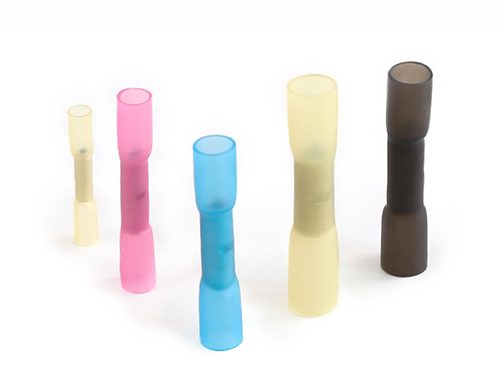

Butt Connector

Leave a comment

Overview

The advantage of the butt splices is that it allows you to connect two or more wires together in a way, which can provide all kinds of protections for the connection point.

They are naturally durable, which means that they protect the connection point from impact and abrasion.

If we are talking epoxy lined heat shrink butt splice, then you can add moisture, chemicals, and stress protection to this list.

As you can see, these connectors have many advantages, which explains why they are such a common connector type.

Technical Parameters

ITEM NO. Conductor cross-section dimension(mm)
A.W.G mm2 DΦ dΦ L
BN 1.25 22-16 0.5-1.5 3.3 1.7 15.0
BN 2 16-14 1.5-2.5 4.0 2.3 15.0
BN 3.5 14-12 2.5-4 5.0 3.0 15.0
BN 5.5 12-10 4-6 5.5 3.4 15.0
BN 8 #8 10 7.1 4.5 21.0
BN 14 #6 16 9.0 5.8 26.0
BN 22 #4 25 11.4 7.7 29.0
BN 38 #2 35 13.3 9.4 32.0
BN 60 1/0 50 15.4 11.4 36.0
BN 70 2/0 70 17.5 13.3 37.0
BN 80 3/0 95 19.4 14.5 38.0
BN 100 4/0 120 22.0 16.4 38.0
BN 150 250-300 MCM 150 26.5 19.5 54.0
BN 180 300-350 MCM 185 28.5 21.0 57.0
BN 200 400 MCM 240 32.5 24.0 63.0
BN 325 500-600 MCM 300 37.0 28.0 72.0

Manufactures Description

butt connector

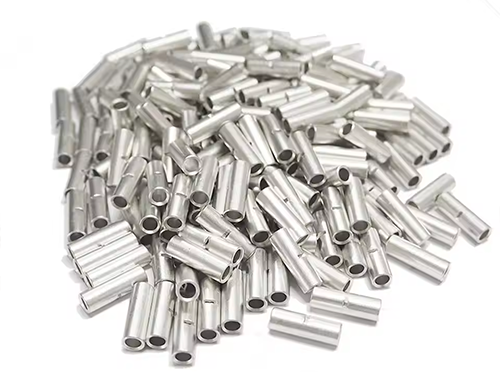

When choosing butt splices, pay special attention to whether they are lined with epoxy resin.

A butt splice is a combination of wires to complete an electrical circuit. Although they are ideal for new wire and cable installations, butt splices can be just as useful when replacing old parts or performing maintenance.

How do you know if your existing butt splices need to be replaced? Did your butt splices fade? Did your butt splices crack? If so, then maybe it’s time to replace these splices with new ones.

Butt splices have a range of insulation types, so you can find the exact style you need.

Suitable for use with marine wire, Yqunique provides non-insulated butt splices, nylon butt splices, vinyl butt splices, and heat shrink butt splices.

It is important to note that when dealing with marine applications, you should only use marine-grade butt splices.

Without ocean-grade butt splices, your electrical connections are vulnerable to harsh ocean conditions.

YE-180 Automatic Terminal Crimping Machine(Double-Crimping)

Leave a comment

Overview



High productivity and reliability using a positioning unit by servo motor and double drive wire feed unit.

Equipped with a servo motor positioning device and double drive wire feeding device, it has high production efficiency and reliability. It can guarantee the outstanding performance of the machine.

  • Compact, high-speed automatic terminal crimping machine.
  • Modular design, program logic control.
  • Structured software design techniques.
  • Advanced data-exchange scheme feeders are not required.

One can control more than one machine, greatly improving the working efficiency of the enterprise. One person can operate multiple devices at the same time, which can greatly improve the benefit of the enterprise.

Technical Parameters

Model YE-180
Function the wire may be cut off with the determined size, and it also may be peeled off and crimped from the single/both ends, the crimping position
Workability crimping at both ends of 4200/h (within 300mm long)
Wire range Standard type: AWG #30-AWG#22  Thick type: AWG #22-AWG#14
Cutting length 32mm-9999mm
Cutting accuracy 0.2mm+(set length x 0.002mm)
Crimping capacity 18Kn(2 sets)
Detection 1. air pressure drop  2. with or without the wire  3. with or without the terminal  4. terminal is not crimped  5. the wire is overload
Control method PLC control
Compressed air 0.5-0.8Mpa(5-8kgf/cm2) (please use the clean and dry gas)
Power AC 220V   50/60HZ
Dimension 970*690*1320mm
Weight about 400kgs
Make the mold OTP straight、horizontal mold
Selected parts restore device

Manufactures Description

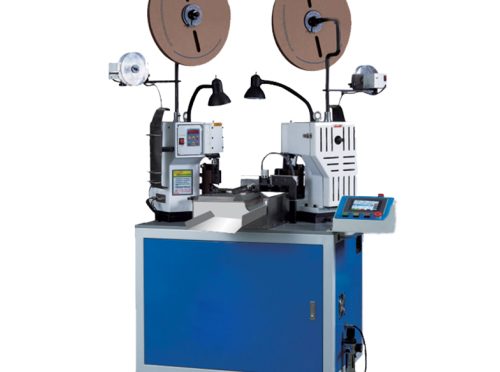

YE-180 Automatic Terminal Crimping Machine(Double-Crimping)

Equipped with reliable high precision technology, YE-180 automatic terminal crimping machine(Double-Crimping) features a compact modular design, which provides room for up to 6 processing stations without compromising the high-quality standards of the 6 series.

Various configuration possibilities allow you to handle cross sections from 0.2 to 0.5 mm²(30-22 AWG) for a variety of applications.

An optimal combination of proven state-of-the-art components leads to outstanding production rates.

  • Full servo control: It greatly reduces the number of cylinders, and improves the stability of the equipment.
  • Improved stripping structure: It makes the pressure extremely stable, as small as OD0.8, as large as 2.5, soft row line 20080, and Samsung halogen-free line can be pressed.
  • One machine multi-purpose: It can cut wire, play end row wire, and electronic wire.
  • One out of two: Corresponding to the number of PIN-less line, can one out of two, greatly improve production capacity.
  • Functional maturation: Support positive and negative pressure processing, interval pressure, and half stripping.
  • Data archiving function: You can archive cable data and replace all data with one click when replacing a cable.
  • Convenient debugging: Touch screen settings such as bifurcating length, cutting line length, peeling length, and peeling depth.
YE-1802 Automatic Wire Crimping and Insert Sleeve Machine(Double-Crimping)

YE-158 Full-automatic Terminal Crimping & Twisting Machine (Single End)

Leave a comment

Overview

Automatic Terminal pressing, drawing, dividing and twisting machine (single end multi-function).

Product features

● Full Chinese character graphics display, wire processing of each length size, knife depth, terminal position, are set by the key simple and flexible operation, low cost maintenance consumables.

● The position of pressing end is accurate, the tightness of twisting line can be adjusted, and the twisting line is straight and beautiful.

● This machine has powerful function, can produce flat sheath line cutting, peeling, pressing end, one complete.

Technical Parameters

Model YE-158
Function cutting the wire by the decided dimension,single and double-end peeling,single-end crimping,and twisting;automatically set the crimping position,peeling length and cutting depth and binding prompt.
Work ability (100mm Long) line is not twisted 4000 article hour,twist 3000 article hour
Suitable wire AWG  #32- AWG #18
Machining length (leaving the middle part of the skin) 25mm-9999mm
Stripping length 0.1mm-25mm(ideal range)
Twist length 3mm-20mm(ideal range)
Cut error amendable
Crimping capacity 1.8T
Detection device terminal existence and wire entrance detection
Assist device pre-feed device and waste paper rolling terminal device
Power AC220V (single-phase) 4A
Dimension 1060*600*1380mm
Weight 310kg
Make the mold OTP straight、horizontal mold

Manufactures Description

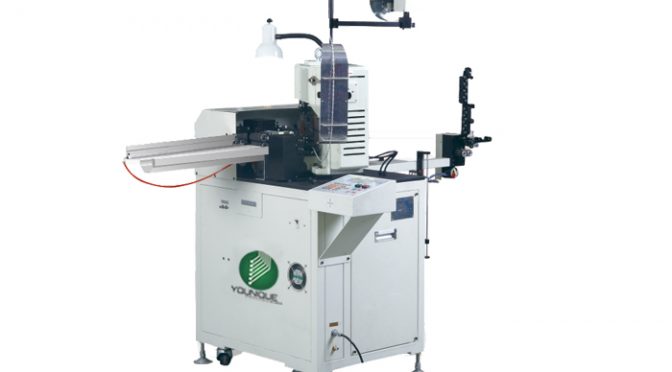

YE-158 Full-automatic Terminal Crimping & Twisting Machine (Single End)

The machine has a number of functions including wire size cutting, single and double end peeling, single end pressing, twisting;

It can automatically set the position of pressing end, peeling length, cutting depth and bundling prompt.

Cutting the wire by the decided dimension, single and double-end peeling, single-end crimping, and twisting; automatically set the crimping position, peeling length and cutting depth and binding prompt.

(100mm Long)Line is not twisted 4000 Article hour, twist 3000 article hour.

Suitable wire AWG#32~AWG#18.

YE-158 Full-automatic Terminal Crimping & Twisting Machine (Single End)

LBD2-100/1140 Mine Flameproof Cable Connector

Leave a comment

Overview

LBD2-100/1140 Mining Explosion proof cable connector (hereinafter referred to as “connector”), design, manufacture is in accordance with the National standard GB 3836.1 2010 Explosive environment, part 1: General requirements (IEC 60079-0:2007, MOD), GB 3836.2 2010 part 2: flame-proof enclosures “d” protection devices (IEC 60079-1:2007, MOD), GB 3836.3 2010 explosive environment part 3: type “e” of adding safety protection device (IEC 60079-7,2006 IDT) and other relevant requirements .It has Explosion-proof Certificate of Conformity and Safety Certificate of Approval for Mining Products and Explosion-proof electrical products production license.

Technical Parameters

（1）Item No.

L  B  D  2  —  100  /  1140

1140: Rated voltage（V）

100:  Rated current（A）

2: Sequence number

D:  Low voltage

B: Explosion-proof type

L:  Connector

（2）Ex Type：Mining Explosion-proof；Ex-mark：Ex d I Mb

Usage conditions

（1）Altitude ≤2000m；

（2）Operating ambient temperature -5℃~＋40℃；

（3）Surrounding air relative humidity≤95％±3％（25℃）；

（4）In the coal mine with gas explosive mixture;

（5）Without significantly shaken and shock vibration place;

（6）Without damage insulating gas environment

（7）Without dropping water

（8）Pollution levels: level 3

（9）Install category: class II and class III

Manufactures Description

LBD2-100/1140 Mine Flameproof Cable Connector

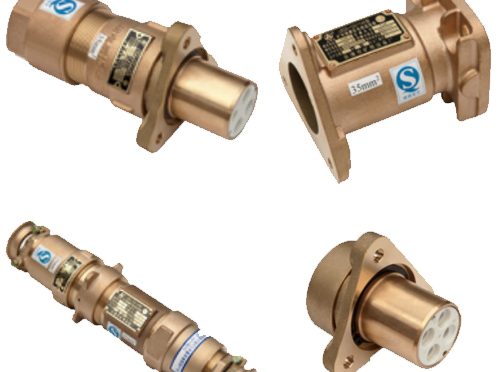

LBD2-100/1140 Mine flameproof cable connector (picture 1) is composed of two main bodies: a plug head part (picture 2) and a socket part (picture 3).

The socket part is installed on the machine or other equipment that needs 1140V voltage and 100A current.

After installing the plug head part and cable, it is inserted into the socket and fed to the equipment that needs it.

Insert head: assembly diagram and disassembly of main parts (picture 4).

1, triangular positioning seat;  2. Precursors;  3, insulation;  4.5.6. Small socket;  7, insulation cover; 8, gasket;

9. Inner cover;  10, pressing block;  11, upper pressure block;  12. Posterior body;  13, after the pressure sleeve;  14. Rubber sealing ring;

15, after pressing sleeve pad;  16, pressure cap;  17. Large socket.

Socket part: assembly drawing and disassembly of main parts (picture 5).

1, insulation gland;  2.3.4 Small plug;  5 insulator;  6, sealing ring;

7, socket body;  8, sealing ring;  9. Big plugs.

LBD2-100/1140 Mine Flameproof Cable Connector

YE-950L Automatic Wire Stripping and Cutting Machine

Leave a comment

Overview

  • Button switch for length switch, full stripping, and half stripping configuration, which is convenient and quick.
  • Use rotary finishing turning a switch or stripping length and cutter depth. It’s easy and fast.
  • For high-speed line segments, the thick and thin wire can be reliably produced according to wire configuration specifications.
  • The best features are less technical adjustment, less pressing line, short adjustment time, convenient and simple operation.
  • It can be matched with the line splitting machine to complete the action of line splitting, cutting, and peeling, and at the same time burr the line and input the length of the line directly into the screen.

Technical Parameters

Model YE-950L
Power consumption 1 kw
Stripping length 3-30mm
Cutting length 42mm-9999mm
Cutting tolerances single cycle and auto
Wire type PVC,tefion,glass wire
Wire size AWG#5-28,flat cable
Power 380V 3 phases/220V
Dimension W1700*D750*H1850mm
Weight 400kg

Manufactures Description

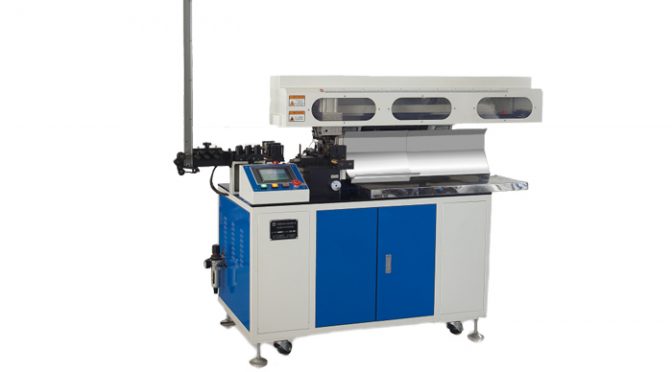

YE-950L Automatic Wire Stripping and Cutting Machine

This machine is an automatic wire cutting machine for cutting wire material size at high speed, peeling at both ends, peeling at single end and half-peeling.

Use servo motor to control cutting line, peeling and other actions to make cutting length more accurate.

Length change, full stripping and half stripping are set by keys, easy and fast.

Speed can be divided into five grades, can be set according to wire specifications, so that thick and thin lines can be stable production.

Each detection standard has the functions of low air pressure, abnormal cylinder stuck motor, consistent counting display, etc., can automatically stop when abnormal, and the detection situation will be displayed on the man-machine interface, convenient and rapid troubleshooting, to reduce the downtime.

The best features are less technical adjustment, less pressing line, short adjustment time, convenient and simple operation.

Can be matched with the line splitting machine, complete the line splitting, cutting and peeling action, at the same time the line out of the burr, the length of the line directly input in the screen.

This machine can process 600mm long wire 50 times per minute, which is more than 4 times of desktop 1 out 2 wire stripping machine.

YE-950L Automatic Wire Stripping and Cutting Machine
