The YQUNIQUE Dual-Servo Automatic Metal Tube Double-End Chamfering Machine is an CNC chamfering machine designed for high-speed processing of metal tubes, pipes, solid bars, hexagonal bars, and square bars. Equipped with a dual AC servo feeding system, precision ball screws, and linear guide rails, it performs simultaneous double-end chamfering with high accuracy, stable performance, and consistent machining quality. The machine is widely used for copper, aluminum, stainless steel, brass, and carbon steel components in automotive, hardware, furniture, plumbing, and metal fabrication industries.
The YQUNIQUE YE-70D Dual-Servo Metal Tube Double-End Chamfering Machine is designed for high-speed chamfering of metal tubes, solid bars, hexagonal bars, and square bars. Equipped with a dual AC servo feeding system, it simultaneously chamfers both ends with high precision, high efficiency, and stable machining quality.

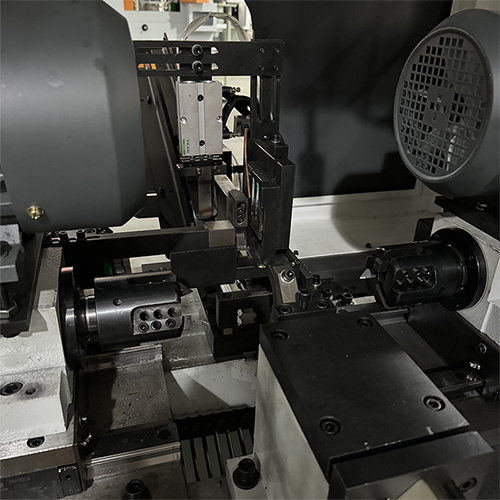

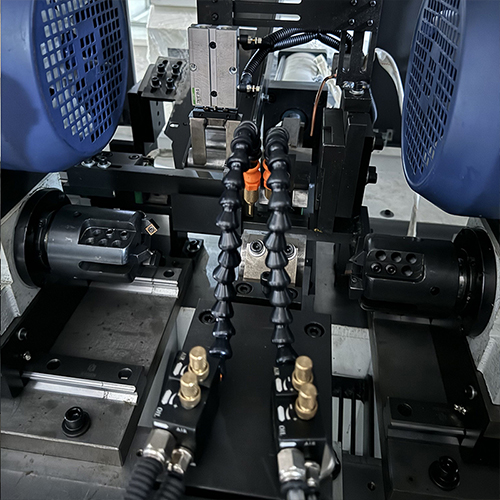

To solve these operational challenges, this platform introduces the Dual-Servo Metal Tube Double-End Chamfering Machine. Engineered with a heavy-duty, counter-parallel dual power head layout, its core breakthrough lies in integrating a dual-axis AC servo feed system. Once the workpiece is securely locked by the automated vertical clamping matrix, the left and right cutting spindles advance via independent, digitally governed servo drives. Within a single brief stroke, it finalizes the inner bevel, outer edge, internal steps, and flat facing on both ends of the pipe simultaneously. This digital control grants processing cycles exceptional symmetry and micron-level length repeatability; by enabling swift parameter adjustments on the panel without physical stopper tuning, it vastly compresses the line-changeover interval, rendering it an essential asset for modern enterprises seeking smarter, high-yield production.
| Performance Item | Specifications |
| Machine Type |
Dual-Servo Metal Tube Double-End Chamfering Machine |
| Input Air Source |
0.3-0.7 MPa |
| The Motor Power |
2.2 Kw *2 |
| The Power Supply Voltage |
380 V 50 Hz |
| The Work Piece Length |
35-180mm |
| Certification |
CE |
| Clamp |
Pneumatic |
| Specification |
1800*1200*1700 mm |
Our Dual-Servo Metal Tube Double-End Chamfering Machine embodies years of specialized manufacturing experience—from the AC servo architecture to the load-bearing chassis elements—all optimized to deliver the following technical highlights and practical processing advantages:
Dual-Axis Servo Digital Feeding Matrix:Our Dual-Servo Metal Tube Double-End Chamfering Machine is equipped with two independent high-performance AC servo motors (400W/750W option) paired with Taiwan Tbi precision ball screws and Tanakan high-rigidity linear guide rails to support the feed stroke.

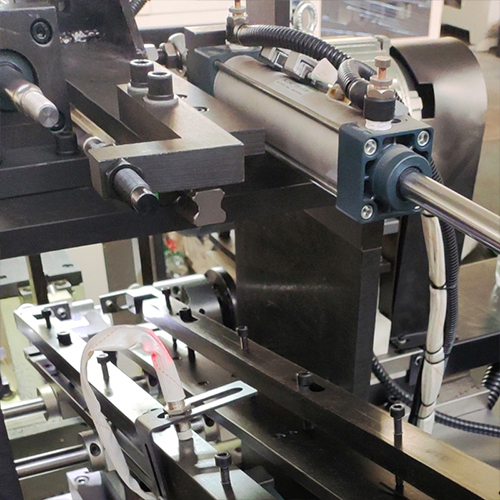

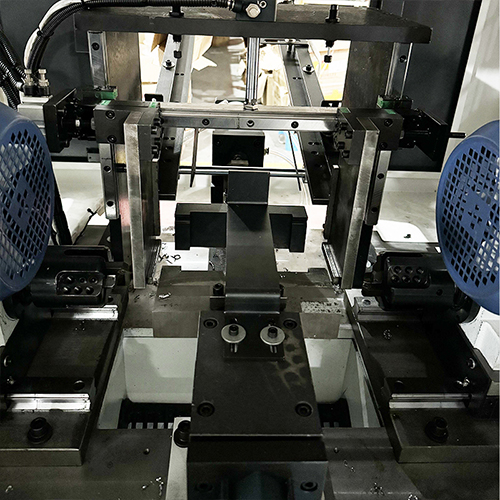

Straight Up & Down Fully Automatic Pneumatic Clamping:Delivers an exceptionally firm, centered locking force, preventing axial displacement or material rotation during high-speed heavy cutting, securing strict cross-section perpendicularity and operational safety.

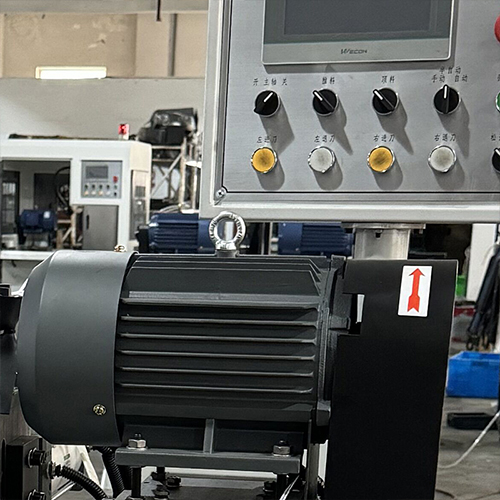

Master-Class Sourced Componentry & Cast Iron Headpiece: The core headpiece structural base is engineered from heavy-duty industrial castings, powered by twin Zhejiang Mingsu main motors (2.2 kW *2) and Japanese premium NTN spindle bearings.The rigid cast-iron frame excels at dampening structural micro-chatter during high-speed rotations, prolonging carbide insert lifespans while substantially enhancing the surface finish and smoothness of the tube ends.
Engineered with an anti-vibration horizontal heavy welded frame and a fully enclosed high-safety observation canopy with integrated warning beacon lights, this platform pairs imported NTN bearings with a digital speed matrix to effortlessly sustain high-intensity multi-shift bulk production while locking in tight tolerances.
Automotive Parts, Shock Absorber Bushings & Fastening Pins:Tailored for the high-precision digital end-facing and beveling of automotive shock absorber sleeve brackets, precise metal bushings, solid round bars, high-hardness hexagonal rods, and square pins.Meeting the automotive industry’s strict benchmarks for length tolerances and dual-end symmetry, the dual servo-driven system paired with precision ball screws ensures superior dimensional consistency over massive production runs.
High-End Metal Furniture, Stainless Handrails & Shelving Racks:Designed for machining the outer bevels, inner deburring, and flat facing on aluminum ladder sections, steel frames for high-end office desks/chairs, shelving connector posts, and premium stainless steel safety handrails.
HVAC, Refrigeration Piping & Heat Exchanger Production: Utilized for high-precision outer step-turning, end-facing, inner wall taper beveling, and trimming of air conditioning copper distribution tubes, heavy-walled aluminum sleeves, and seamless steel pipes for condenser coil lines prior to flaring or bending.
Fitness Gear, Bicycle Frames & Outdoor Sports Equipment: Since intersecting pipe segments of fitness gear require clean cross-sections prior to fit-up welding, this platform supports custom profile dies. Its dual power heads allow rapid program changeovers for fluctuating pipe diameters directly via the touch panel, assisting multi-spec workshops in maintaining a steady production rhythm over shifting runs.
Solar PV Trackers, Busbars & Heavy Construction Anchors: Well-suited for end-facing, sharp-edge removal, and outer trimming on solar photovoltaic tracking support structures, heavy-duty construction anchor bolts, and specific straight segments of copper/aluminum busbar rods.
Decades of Expertise: Over 20 years of experience in manufacturing high-precision automation machinery.
Factory-Direct Pricing: Competitive pricing with direct technical support from the manufacturer.
Customization Capability: Backed by an experienced non-standard automation R&D team, we offer fully available customization ranging from specialized fixtures to bespoke production layouts.
Reliable Support: Comprehensive after-sales service, including remote technical assistance and spare parts availability.
1. What materials can this machine process?
This machine is designed for chamfering copper, aluminum, brass, stainless steel, carbon steel tubes, pipes, solid bars, hexagonal bars, and square bars.
2. What types of workpieces can this machine chamfer?
It can process metal tubes, pipes, solid bars, hexagonal bars, square bars, and other cylindrical or shaped metal components.
3. Can this machine chamfer both ends at the same time?
Yes. The machine performs simultaneous double-end chamfering in one cycle, improving production efficiency and ensuring consistent machining quality.
4. What are the advantages of a dual-servo chamfering machine?
The dual-servo system provides precise feeding control, stable operation, high machining accuracy, and consistent performance for high-volume production.
5. What is the machining accuracy of this machine?
The machine delivers high positioning accuracy and stable chamfer dimensions through precision ball screws, linear guide rails, and servo control technology.
6. Can the machine be customized?
Yes. The machine can be customized with different fixtures, tooling, feeding systems, and configurations according to your production requirements.
7. What information is required for quotation?
Please provide product drawings, material specifications, dimensions, chamfer requirements, and expected production capacity for an accurate quotation.
8. Can customers send samples for testing?
Yes. Customers are welcome to send samples or drawings for machining tests before placing an order.
9. What industries is this machine suitable for?
It is widely used in automotive parts, hardware products, furniture components, plumbing fittings, refrigeration parts, and metal fabrication industries.
10. Is overseas installation and technical support available?
Yes. We provide remote technical support, operation training, spare parts supply, and overseas installation services when required.
