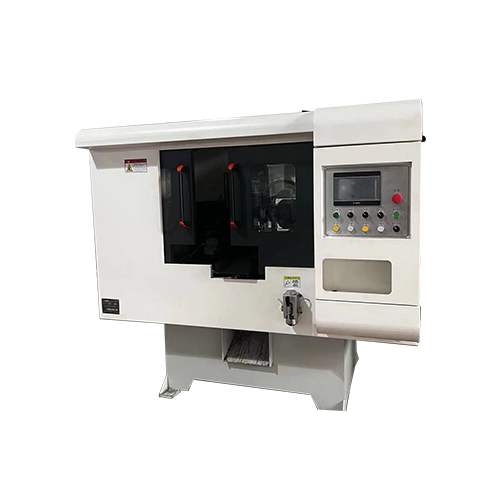

The YE-120D Automatic Diameter Hexagon Bolt Flat Head Chamfering Machine is a high-efficiency automatic chamfering machine designed for processing large hexagon bolts, hexagonal bars, round bars, and metal fasteners. Equipped with a dual-head chamfering system, servo feeding, and pneumatic clamping, it performs simultaneous chamfering and flat-end machining with high precision and stable performance. It is widely used in fastener manufacturing, automotive components, construction hardware, and heavy-duty metal fabrication.
The 120 Large Diameter Hexagon Bolt Flat Head Chamfering Machine is a high-efficiency automatic chamfering solution specially designed for large-size bolts, hexagonal workpieces, round bars, and metal fasteners. Equipped with a dual-head chamfering system, the machine can process inner and outer chamfers simultaneously, greatly improving production efficiency and machining consistency.
This machine supports round, hexagonal, and square workpieces with an outer diameter processing range of 40mm-110mm and workpiece lengths from 30mm-180mm. The servo feeding system combined with pneumatic clamping ensures stable positioning accuracy and smooth automatic feeding during continuous operation.
Widely used in hardware manufacturing, bolt production, construction fasteners, automotive parts, machinery components, and industrial metal processing industries, this chamfering machine delivers high precision, stable operation, and reliable long-term performance for demanding factory production environments.
| Performance Item | Specifications |
| Machine Type |
YE-120D Hexagon Bolt Flat Head Chamfering Machine |
| Input Air Source |
0.3-0.7 MPa |
| The Motor Power |
Two 2.2K W4 Class |
| Specification |
1800*1200*1800 |
| Production Capacity |
1000 Set/Year |
| Certification |
CE |
| The Power Supply Voltage |
380 V 50 Hz |
Blade Damage Alarm Protection:Automatically stops operation when tool damage is detected, reducing equipment risk and maintenance costs.
Heavy Duty Industrial Structure:Stable machine frame design supports long-term continuous production in factory environments.

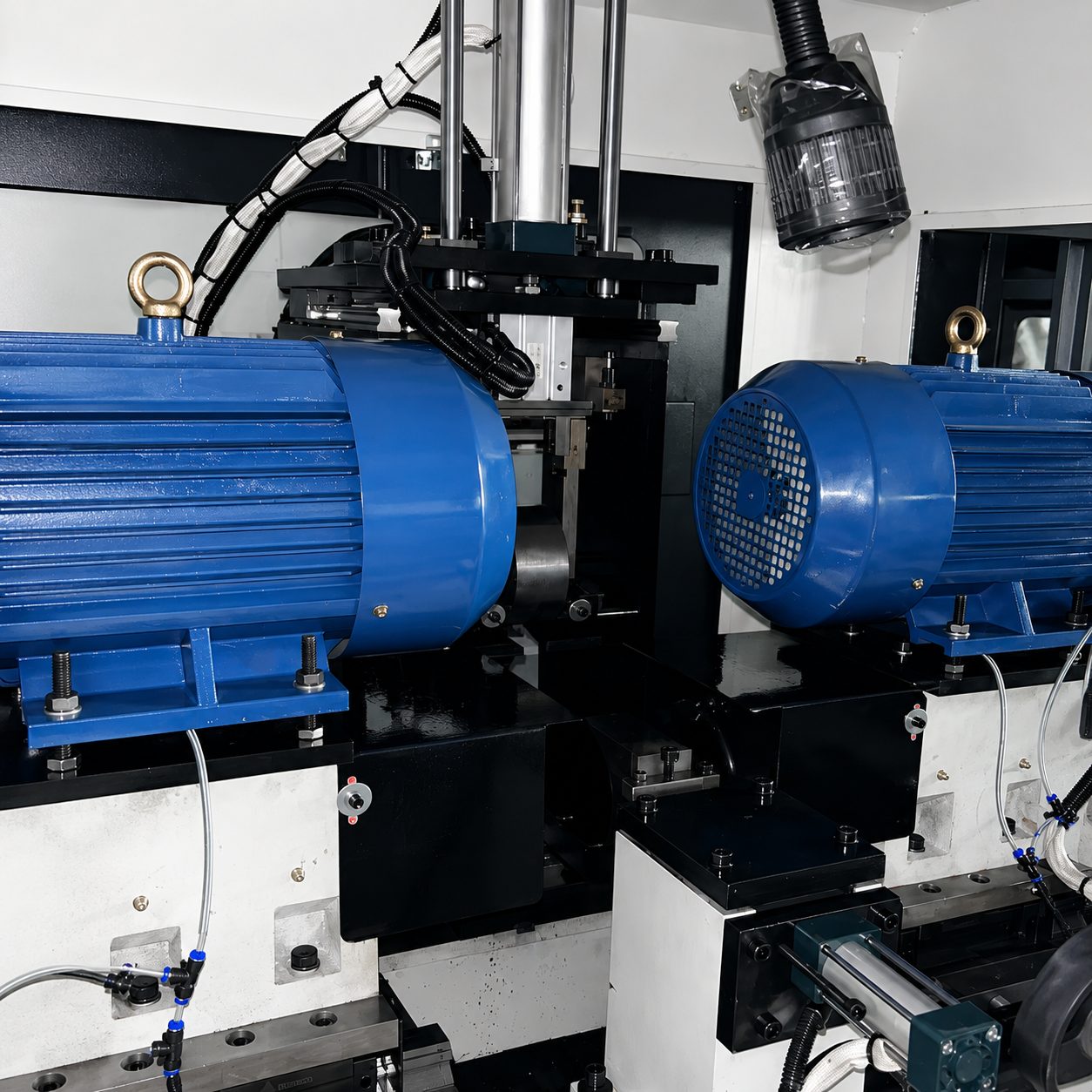

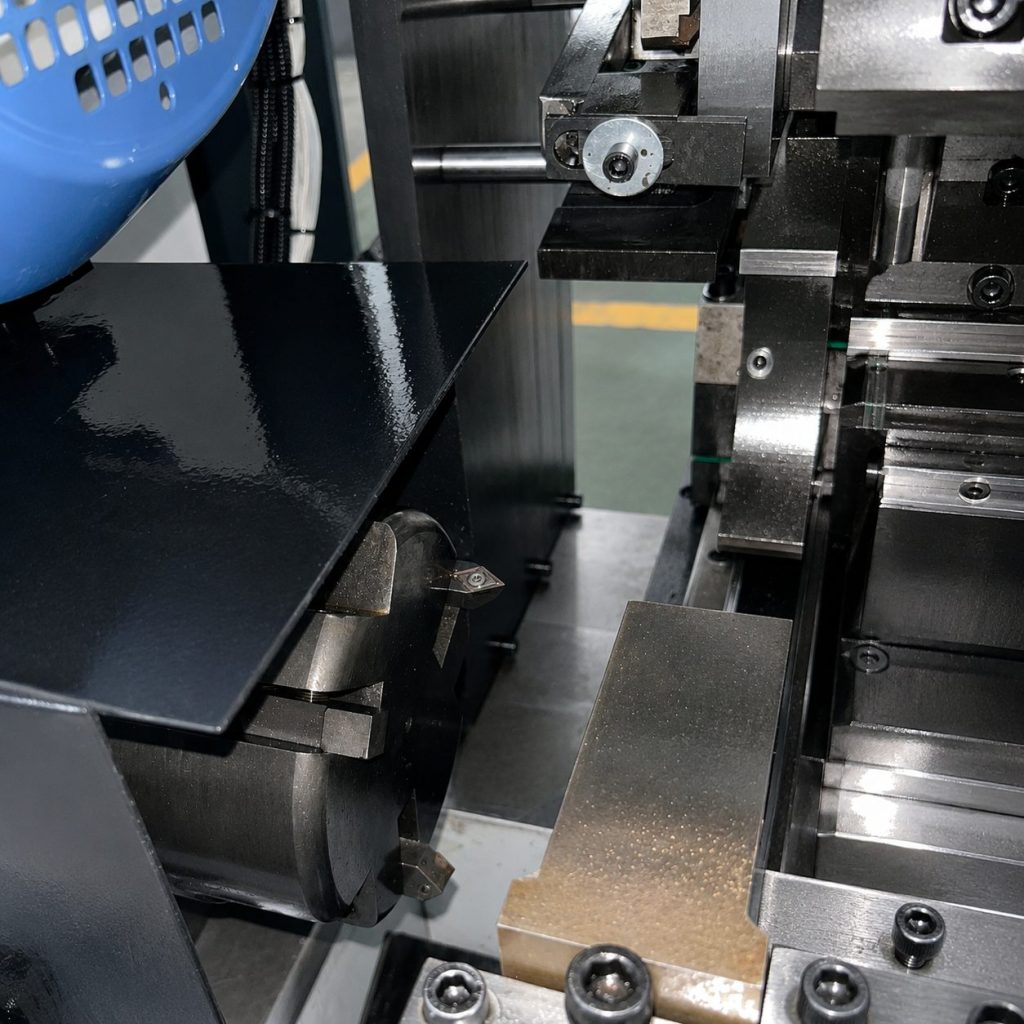

Dual Head Chamfering System: Simultaneously processes inner and outer chamfers to improve production efficiency and machining consistency.
Wide Workpiece Compatibility: Suitable for round, hexagonal, and square metal parts with diameters from 40mm to 110mm.

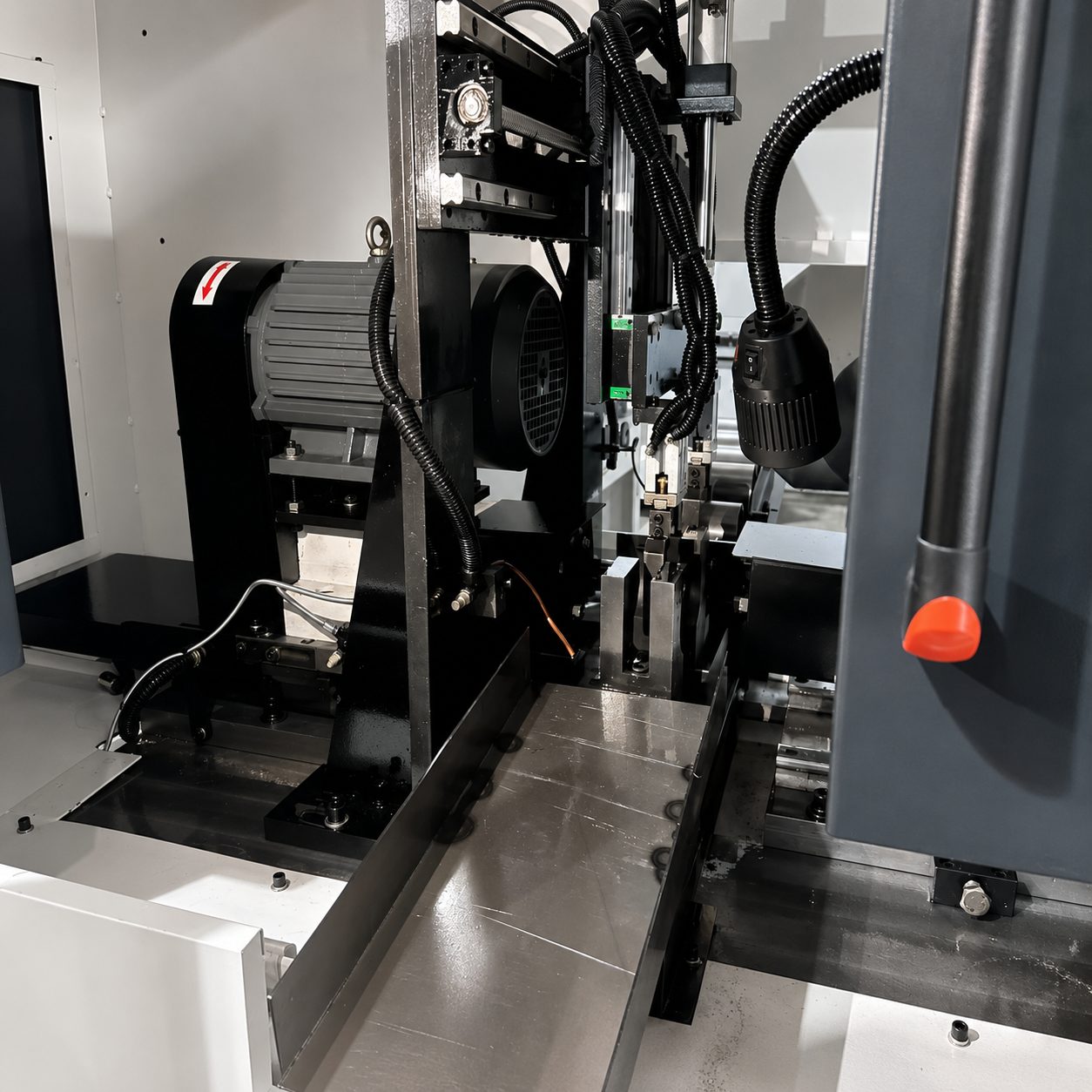

Servo Feeding Control: Delta servo feeding system provides precise positioning and stable automatic material feeding.

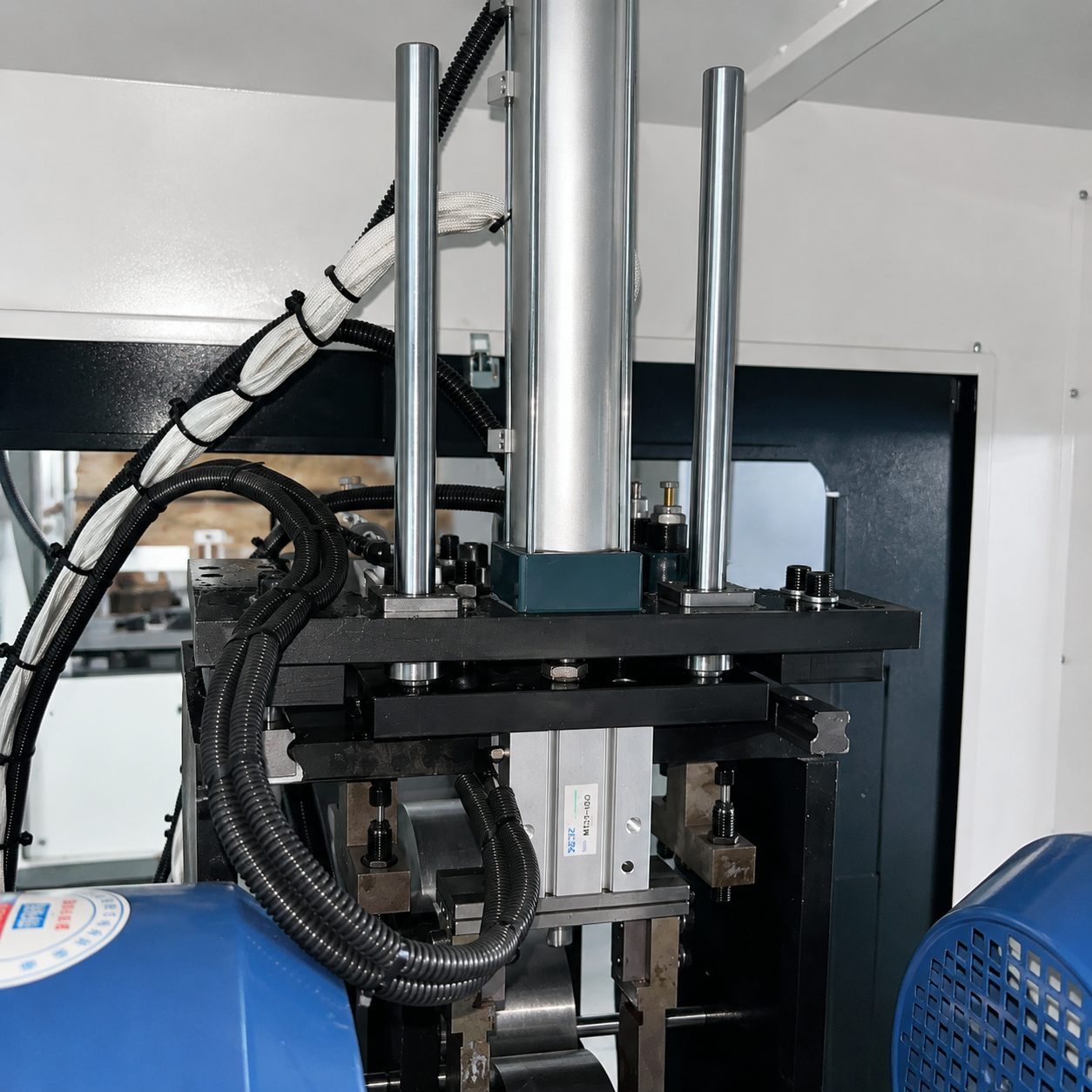

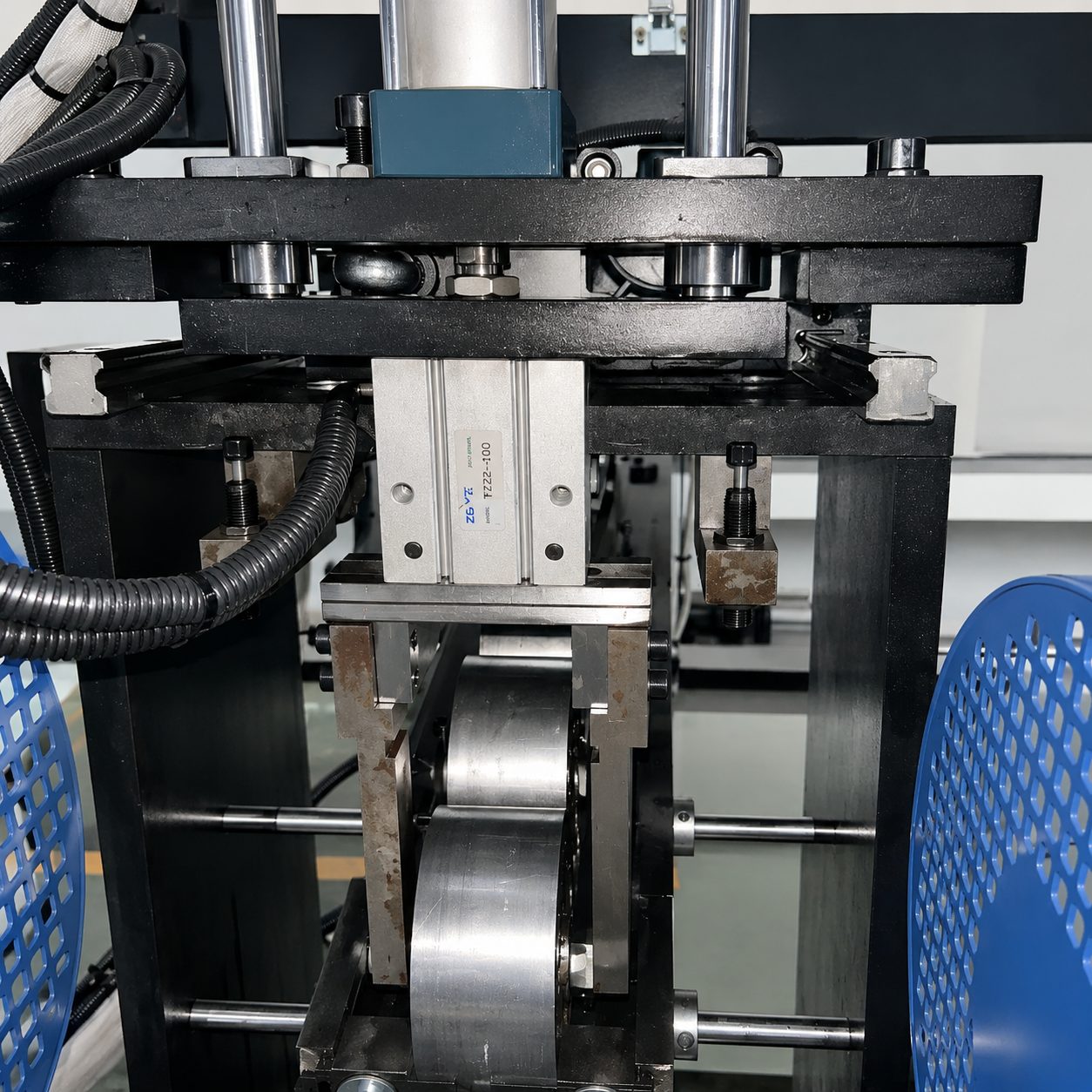

Pneumatic Clamping Structure: Ensures secure workpiece holding and minimizes vibration during machining.
Digital Adjustment Operation: Chamfer size and machining length can be digitally adjusted without complex mechanical setup.

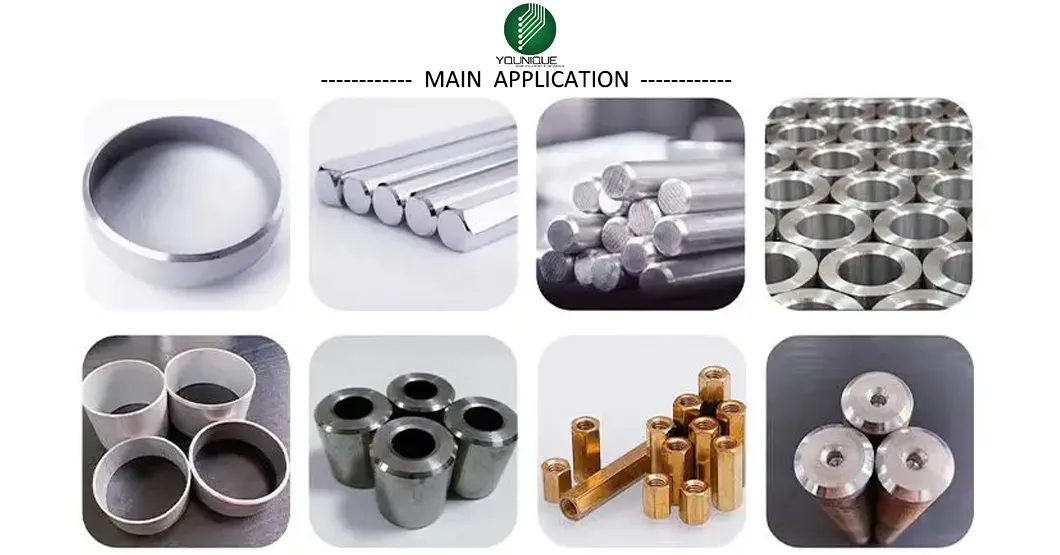

The 120 Large Diameter Hexagon Bolt Flat Head Chamfering Machine is designed for high-precision chamfering and flat head processing across a wide range of industrial metal manufacturing applications. With stable automatic feeding, dual-head machining capability, and reliable continuous operation performance, the machine provides efficient and consistent chamfering solutions for factories handling large-diameter metal workpieces and heavy-duty hardware components.
Fastener Manufacturing Industry:Used for chamfering large hexagon bolts, threaded rods, nuts, anchor bolts, and industrial fastening components. The machine improves edge smoothness, assembly accuracy, and product consistency for high-strength fastening systems.
Automotive and Commercial Vehicle Components:Suitable for suspension bolts, axle parts, wheel fasteners, engine connection components, and structural hardware. Precise chamfering helps improve assembly performance, reduce burrs, and ensure dimensional stability during vehicle production.
Construction Hardware and Steel Structure Industry:Widely applied in the processing of bridge fasteners, steel structure connectors, heavy-duty bolts, foundation anchor components, and large construction hardware. The machine enhances installation precision and structural reliability for engineering projects.
Industrial Machinery Manufacturing:Ideal for chamfering shafts, couplings, hydraulic fittings, flange parts, mechanical connectors, and transmission components. Smooth chamfer surfaces improve assembly efficiency and reduce wear during equipment operation.
Pipeline and Energy Equipment Production:Suitable for metal connectors, pipe fittings, pressure system hardware, and energy industry mechanical parts requiring accurate edge processing and stable machining quality.
Heavy Equipment and Mining Machinery Industry:Provides reliable chamfering performance for oversized fasteners, mining equipment components, heavy mechanical structures, and industrial support hardware operating under demanding working conditions.
Marine Hardware and Shipbuilding Applications:Used for large metal fastening parts, marine connectors, and structural components requiring corrosion-resistant finishing and stable edge processing quality.
Custom Metal Fabrication Industry:Supports flexible production requirements for customized metal parts, special-shaped workpieces, and multi-specification hardware products with fast digital adjustment and efficient production capability.
High Precision Performance:Provides stable and accurate chamfering results for industrial metal components.
Efficient Dual-Head Machining: Simultaneously processes multiple chamfer surfaces to improve production efficiency.
Easy Digital Operation:Digital parameter adjustment reduces setup time and improves productivity.
Heavy Duty Machine Structure: Stable machine body design supports long-term continuous factory operation.
Reliable Factory Support:Professional manufacturing service with OEM customization and technical assistance.
1. What materials can this machine process?
This machine is suitable for processing carbon steel, stainless steel, alloy steel, and other large metal fasteners.
2. What types of workpieces can this machine process?
It can process large hexagon bolts, hexagonal bars, round bars, threaded rods, and other metal fasteners.
3. What machining operations can this machine perform?
The machine performs chamfering and flat-end machining simultaneously to improve efficiency and machining consistency.
4. What is the maximum machining diameter?
The machine supports workpieces with diameters from 40 mm to 110 mm.
5. What feeding system does this machine use?
The machine uses a servo feeding system to provide accurate positioning and stable automatic feeding.
6. Can the machine be customized?
Yes. Fixtures, tooling, and machine configurations can be customized according to your production requirements.
7. What information is required for quotation?
Please provide product drawings, material specifications, dimensions, and machining requirements.
8. Can customers send samples for testing?
Yes. Customers are welcome to send samples or drawings for machining tests before ordering.
9. What industries is this machine suitable for?
It is widely used in fastener manufacturing, construction hardware, automotive parts, heavy machinery, and metal fabrication industries.
10. Is overseas installation available?
Yes. We provide remote technical support, operator training, spare parts supply, and overseas installation services.
