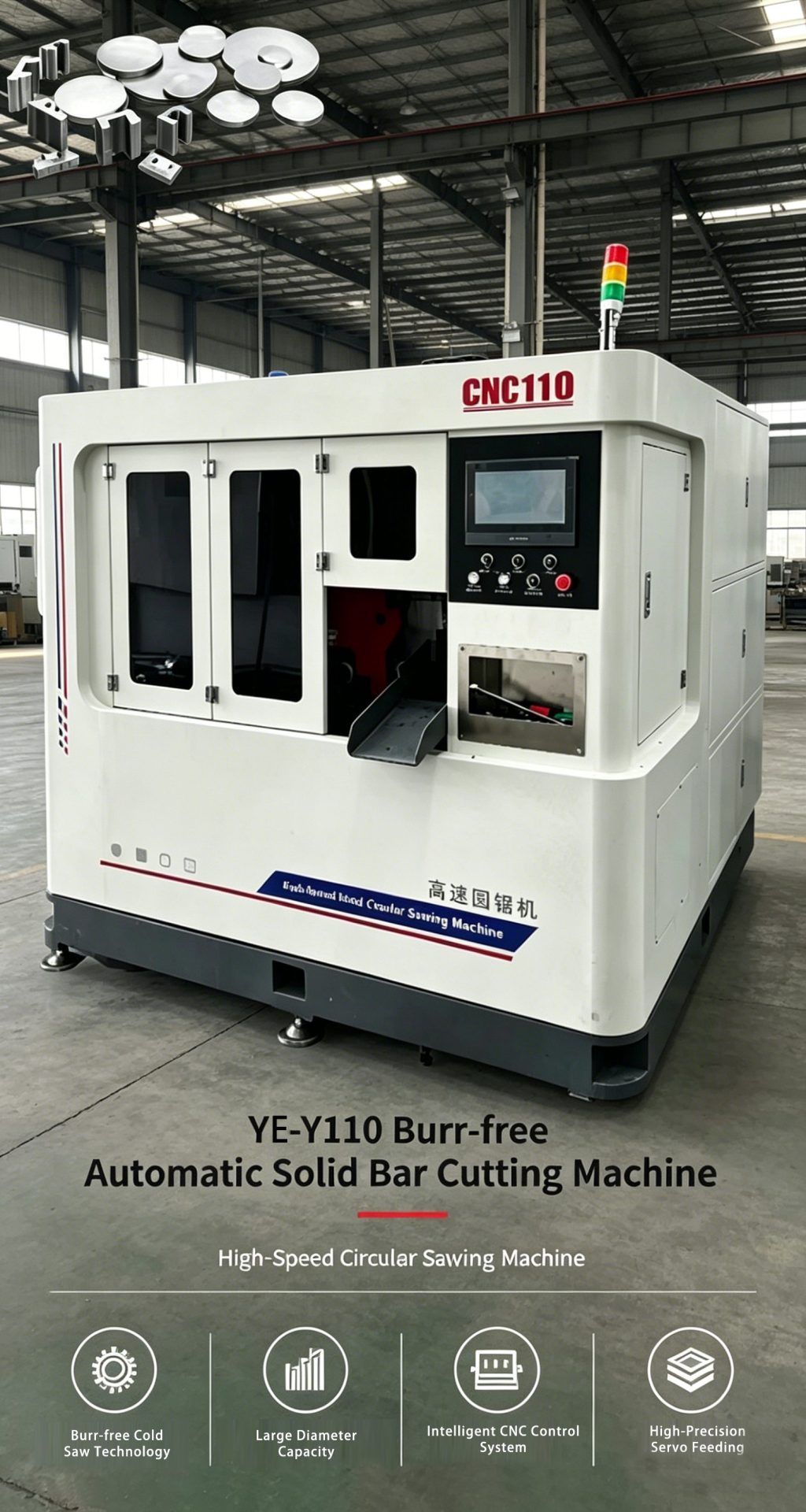

The YE-Y110 Burr-free Automatic Solid Bar Cutting Machine is a premier industrial-grade CNC circular saw designed specifically for the high-precision processing of large-diameter solid metal bars and heavy-walled tubes. As manufacturing standards move towards “Zero-Secondary Processing,” the YE-Y110 provides a critical edge by delivering mirror-finish cuts that eliminate the need for subsequent end-facing or deburring.
The YE-Y110 Burr-free Automatic Solid Bar Cutting Machine is a premier industrial-grade CNC circular saw designed specifically for the high-precision processing of large-diameter solid metal bars and heavy-walled tubes. As manufacturing standards move towards “Zero-Secondary Processing,” the YE-Y110 provides a critical edge by delivering mirror-finish cuts that eliminate the need for subsequent end-facing or deburring.
Equipped with a high-torque spindle and a rigid, vibration-damped frame, this machine handles tough alloys, carbon steels, and stainless steels with ease. In the modern precision machining landscape of 2026, the YE-Y110 replaces traditional band saws which are often slow and produce rough, slanted cuts. By utilizing advanced TCT (Tungsten Carbide Tipped) cold sawing technology, our YE-Y110 Burr-free Automatic Solid Bar Cutting Machine ensures a faster cycle time, superior material yield, and 100% stable performance for 24/7 high-intensity factory operations.
| project | Technical parameters |
| Product Name | YE-Y110 Burr-free Automatic Solid Bar Cutting Machine |
| Cutting Capacity (Round) | Ø 30mm – Ø 110mm (Solid Metal Bar) |
| Applicable Materials | Carbon Steel, Stainless Steel, Alloy Steel, Bearing Steel |
| Saw Blade Type | TCT (Tungsten Carbide Tipped) Circular Saw |
| Feeding Accuracy | ±0.05mm (Servo-driven Precision) |
| Spindle Motor Power | 11.0 kW – 15.0 kW (High Torque CNC Drive |

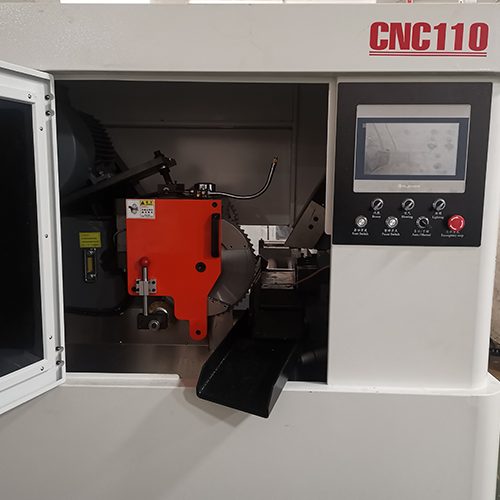

| Control Interface | Industrial HMI Touch Screen with PLC Logic |
| Feeding Length | Single Stroke 10mm – 800mm (Extendable by Multi-stroke) |
| Machine Weight | Approx. 2,800kg (Vibration-absorbing Cast Iron Base) |
Burr-free Cold Saw Technology: The YE-Y110 uses a high-speed circular blade that slices through solid metal while maintaining a low temperature. This prevents thermal deformation and ensures the cut end is smooth, square, and completely burr-free.
Large Diameter Capacity (Up to 110mm): Specifically built for heavy-duty applications, the machine is optimized for solid bars ranging from Ø30mm up to Ø110mm, making it ideal for the production of large gear blanks and shafts.
Intelligent CNC Control System: The advanced CNC interface allows operators to program multiple lengths and quantities in one setup. The system automatically calculates the most efficient cutting parameters based on material hardness.
High-Precision Servo Feeding: Driven by an industrial-grade AC servo motor and high-load ball screws, the material feeding system ensures a length tolerance within ±0.05mm, drastically reducing scrap rates and material waste.
Active Cooling & Mist Lubrication: An integrated micro-mist lubrication system sprays cooling fluid directly onto the saw blade’s teeth. This significantly reduces friction, prevents blade overheating, and extends the life of expensive TCT blades by over 40%.
Automated Waste Sorting Gate: The machine is smart enough to distinguish between a finished product and the “head/tail” scraps. It automatically diverts waste into a separate bin, ensuring your finished product stream remains clean and organized.
The high-power and high-precision capabilities of the YE-Y110 Burr-free Automatic Solid Bar Cutting Machine make it an essential asset for several critical heavy-industry sectors:
Automotive & Transmission: Rapid production of heavy-duty drive shafts, axle blanks, and large gear components.
Heavy Machinery: Precise sizing of solid rods used in hydraulic cylinders, construction equipment, and mining machinery.
Aerospace & Defense: Cutting high-strength titanium and alloy bars that require exact tolerances and zero thermal surface damage.
Energy & Power Generation: Sizing of high-grade alloy rods for wind turbine components and electrical switchgear hardware.
The YE-Y110 delivers a fully autonomous “lights-out” manufacturing experience through its synchronized 5-step cycle:
CNC Setup: The operator inputs the rod diameter, desired lengths, and batch quantities into the touch screen.
Automatic Loading: The automatic rack (optional) feeds the next 6-meter solid bar into the servo-gripper mechanism.

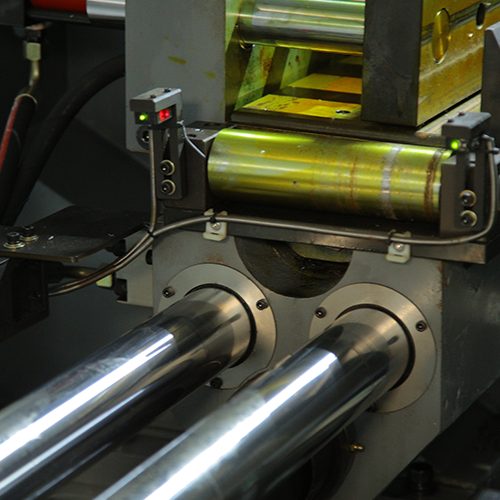

Precision Feeding: The CNC servo motor advances the heavy bar to the exact cut position with micron-level accuracy.

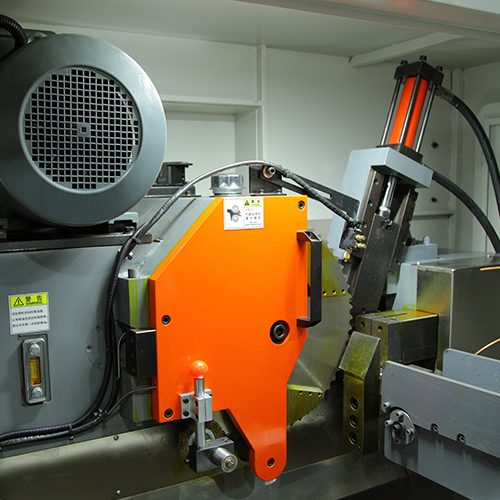

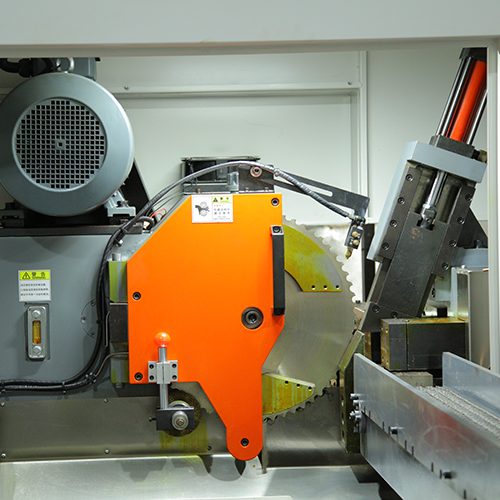

High-Speed Cold Sawing: The hydraulic vises secure the bar while the TCT blade executes a high-speed “cold cut” under active mist lubrication.

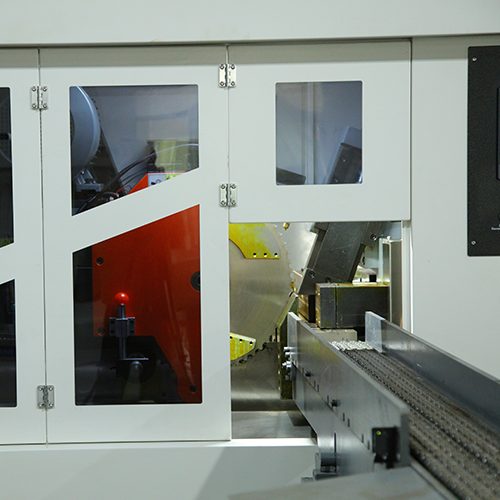

Smart Sorting: The machine ejects the finished part into the product chute and segregates the end-scraps automatically.
Decades of Heavy-Duty Expertise: We specialize in large-diameter metal sawing solutions. Our team provides technical consultation on blade selection and RPM settings for your specific alloys.
Built for 2026 Industrial Reliability: We use premium international brand components (OMRON, Mitsubishi, Schneider) to ensure your production line runs without interruption.
Global Support & Technical Training: Every YE-Y110 includes 24/7 remote video diagnostics, detailed English maintenance guides, and on-site commissioning options.
Guaranteed ROI: By reducing the kerf (cutting width) and eliminating secondary finishing steps, the YE-Y110 Burr-free Automatic Solid Bar Cutting Machine typically pays for itself through material savings and labor reduction in less than 12 months.
