The YE-Z2 Automatic Double-head Chamfering Machine is a heavy-duty, high-precision solution designed for the simultaneous end-facing and chamfering of metal tubes and rods. Engineered for efficiency, this machine handles both ends of a workpiece in a single cycle, ensuring perfect symmetry and significantly reducing production time.
In the modern manufacturing landscape, achieving smooth, burr-free edges is critical for subsequent welding and assembly processes. The YE-Z2 provides an automated alternative to manual grinding, delivering the consistent quality required by the global mechanical engineering standards. Whether you are working with stainless steel, aluminum, or copper, the YE-Z2 Automatic Double-head Chamfering Machine is the definitive choice for high-volume industrial environments.
The YE-Z2 Automatic Double-head Chamfering Machine is an advanced, high-efficiency industrial solution engineered specifically for the simultaneous end-facing and chamfering of small to medium-sized metal tubes, rods, and cylindrical components. In high-volume manufacturing, manual deburring or single-head machining creates massive bottlenecks and inconsistent quality. The YE-Z2 resolves this by processing both ends of the workpiece in a single automated cycle.

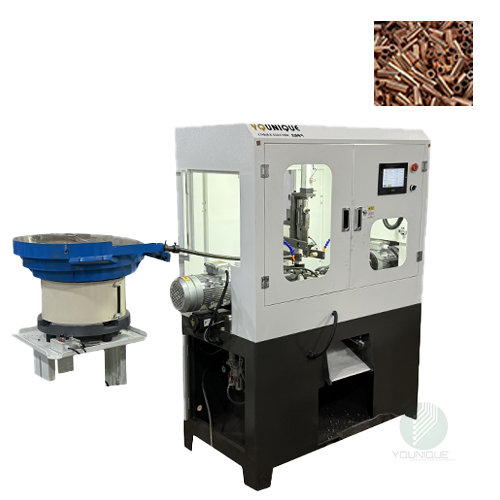

What sets this particular model apart is its integration with a high-capacity vibratory bowl feeder and a fully enclosed safety cabin. This design is highly optimized for mass-producing small copper, aluminum, or steel tubes (such as electrical ferrules, spacer tubes, and micro-cylinders). By automating the entire feeding, clamping, and cutting process, the Automatic Double-head Chamfering Machine ensures every piece meets the strict tolerances required in modern precision machining, ultimately delivering a perfectly smooth, burr-free finish that is ready for assembly or welding.
| project | Technical parameters |
| The power supply voltage | 380v 50Hz |
| The external air pressure | 0.6-0.8MPa |
| The workpiece length | 8-100mm |
| Machining diameter | pipe tube ∅2.5-∅16,bar tube ∅2-∅6 |
| Processing speed | Processing times 30 to 40 times per minute |
| The length of tolerance | ±0.05mm |
| The motor power | 0.75KW/1.1KW |
| Spindle speed | 1400r/min.2800r/min |
| Feeding way | vibrating disk |
| Processing range | Suitable for all kinds of metal pipe. Inside. Outside. Two head chamfering flat bar |
| Machine size/weight | 1220mm*800mm*1600mm/395kg |

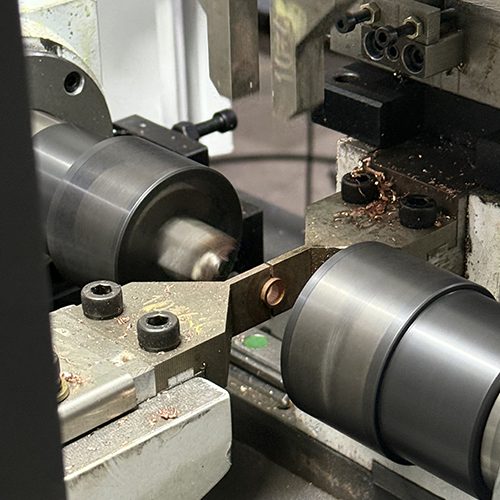

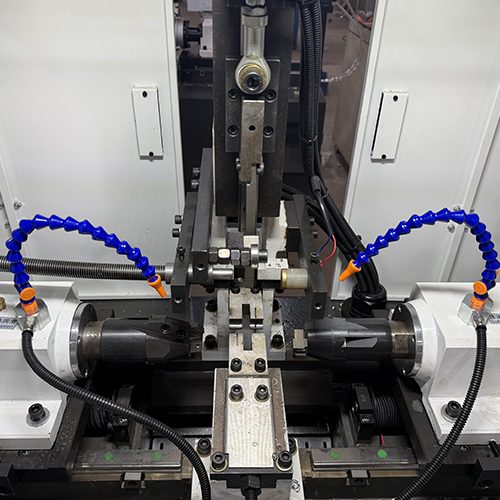

Simultaneous Double-End Processing: The dual-head pneumatic cutting system works on both the left and right sides of the tube simultaneously. This 3-in-1 action performs inner chamfering, outer chamfering, and flat-facing in seconds, boosting output to 1,500 – 2,500 pieces per hour depending on tube size.

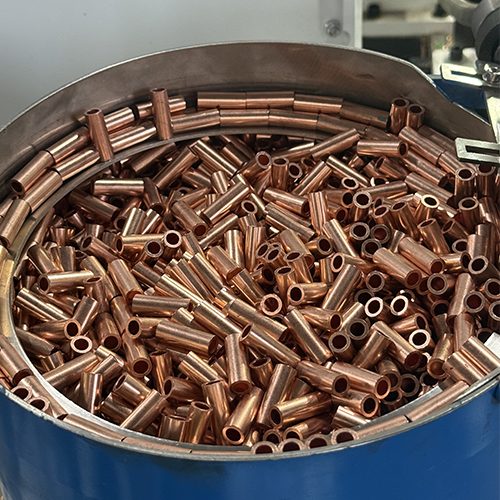

Intelligent Vibratory Bowl Feeding: Specifically customized for small tubular components, the high-frequency vibratory bowl automatically sorts and feeds the parts into the machining track, completely eliminating the need for manual loading and preventing material jams.
Enclosed Safety & Noise Reduction Cabin: Unlike open-frame machines, the YE-Z2 features a robust, fully enclosed workstation with transparent observation windows. This protects operators from flying metal chips, reduces workshop noise, and keeps the production floor clean.
High-Precision PLC & Touch Screen: Controlled by an industrial-grade PLC system, operators can easily program the cutting depth, feeding speed, and dwell time through an intuitive HMI touch panel.

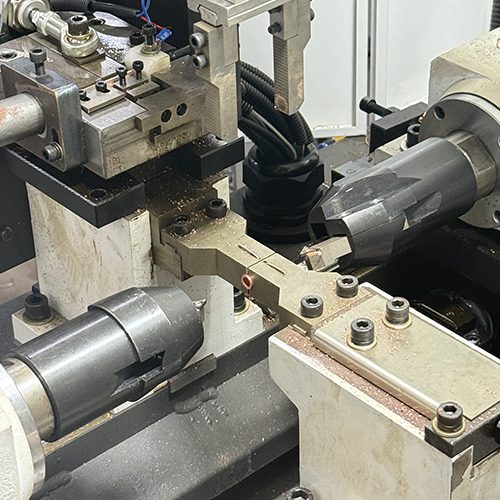

Ultra-Stable Pneumatic Clamping: The automated V-block clamping mechanism ensures the tube is held perfectly on-center. This 100% rigid grip prevents any rotation or vibration during the cutting process, extending the lifespan of your cutting tools.
Automated Chip Removal: Designed with a slanted discharge chute, finished products are separated automatically, while metal shavings drop into a dedicated collection area for easy recycling.
The high-speed nature of the YE-Z2 Automatic Double-head Chamfering Machine makes it a critical asset for industries requiring bulk processing of short tubes:
Decades of Automation Expertise: We don’t just sell machines; we provide comprehensive manufacturing solutions. Our engineers customize the vibratory bowls and cutting dies to match your exact tube dimensions.
Rigorous Quality Assurance: Every YE-Z2 unit is subjected to a 72-hour continuous stress test before leaving our facility, ensuring plug-and-play reliability upon arrival.
Global 2026 Support Network: We provide lifelong remote technical support, detailed English manuals, and fast spare part replacements. You can view our machine performance on our Official YouTube Channel.
High ROI: By replacing 3 to 5 manual lathe operators, the YE-Z2 typically pays for itself within the first 6 to 8 months of operation.
