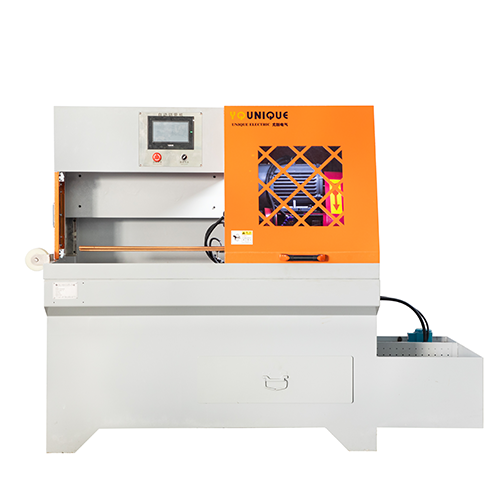

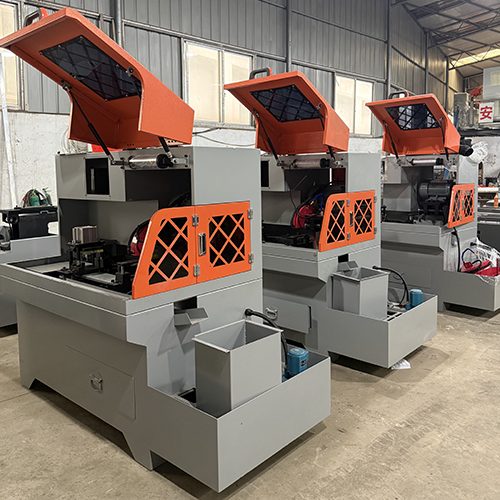

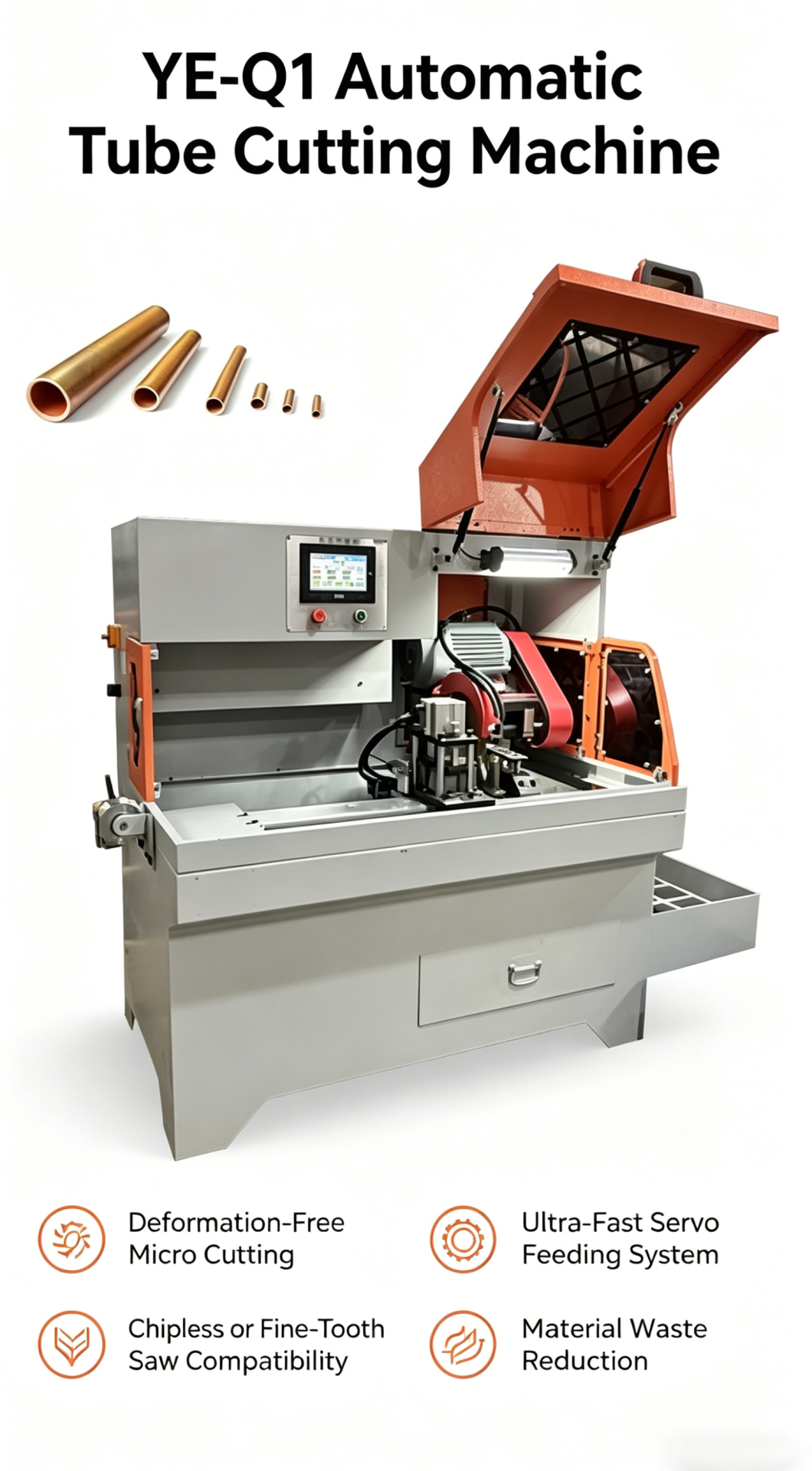

The YE-Q1 Automatic Capillary Tube Cutting Machine is a highly specialized automation system engineered explicitly for the precision processing of micro-tubing, tiny copper pipes, and capillary tubes. When cutting tubes with extremely small external and internal diameters, traditional saw blades inevitably crush the tube or leave metal chips that block the fluid pathway. The YE-Q1 completely eliminates these risks by utilizing an advanced chipless cutting mechanism.
The YE-Q1 Automatic Capillary Tube Cutting Machine is a highly specialized automation system engineered explicitly for the precision processing of micro-tubing, tiny copper pipes, and capillary tubes. When cutting tubes with extremely small external and internal diameters, traditional saw blades inevitably crush the tube or leave metal chips that block the fluid pathway. The YE-Q1 completely eliminates these risks by utilizing an advanced chipless cutting mechanism.
Designed for high-demand sectors such as refrigeration and air conditioning, thermostats, and precision medical devices, this machine ensures that the inner diameter (ID) of the capillary tube remains 100% open and undeformed after the cut. By automating the uncoiling, straightening, and cutting processes into one seamless workflow, the Automatic Capillary Tube Cutting Machine guarantees maximum material yield and flawless flow-rate consistency for your critical tubular components.
| Specifications | Performance | |
| Cutting capacity | ● | ∅40mm |
| □ | 60*40mm | |
| ▃ | 65*45mm | |
| ◎ | ∅50mm | |
| Feed length | 1.5mm-100mm without manual positioning | |
| Feed speed | stepless adjustment | |
| host motor | 2.2 or 3kw,by the order 2.2 or 3kw | |
| saw | ∅100-200mm tungsten carbide saw blade | |
| spindle speed | 500-3200RPM or by the order 500-3200RPM | |
| cooling | 90w water mercury for cooling 90w | |
| compressed air | 0.6mpa | |
| machine dimensions | 850*1600*1600mm | |
| total weight | about 400kg | |

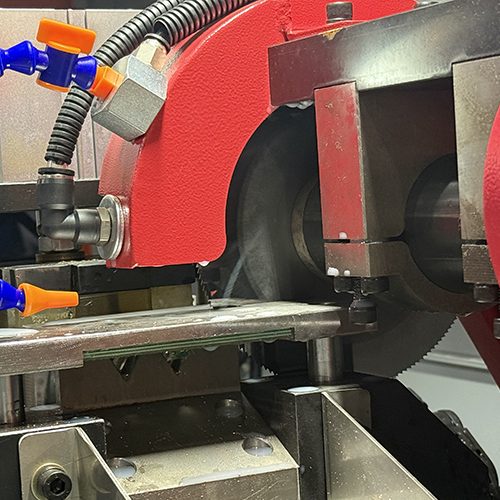

Advanced Chipless Cutting Technology: Unlike abrasive or toothed saws, the YE-Q1 utilizes a specialized rotary or shearing cut that produces zero metal dust or chips. This guarantees a clean inner diameter, preventing internal blockages in critical capillary systems.

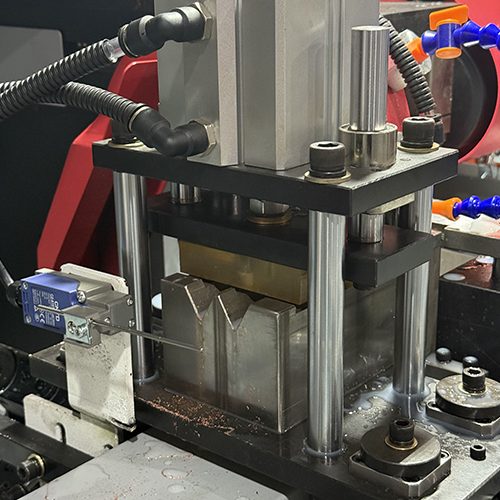

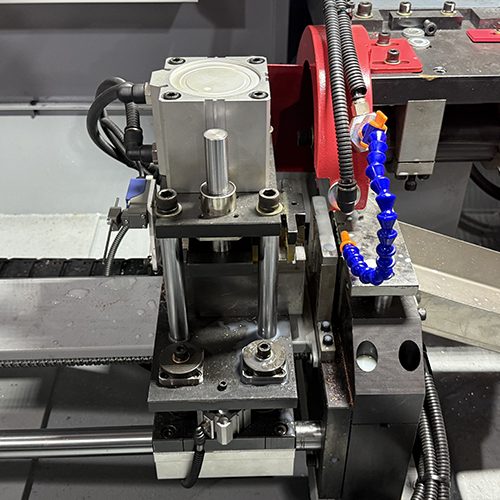

Deformation-Free Micro Clamping: Micro-tubes are highly susceptible to crushing. Our machine is equipped with customized, contour-matching clamping dies that distribute pressure evenly, ensuring the outer diameter (OD) remains perfectly round during the cutting stroke.
Integrated Tube Straightening: Capillary tubes are often supplied in large coils. The YE-Q1 features an integrated multi-roller straightening mechanism that ensures the wire/tube is perfectly straight before it enters the cutting zone.
High-Speed Servo Feeding: Driven by precision servo motors, the feeding system delivers micro-millimeter accuracy (±0.05mm). It is capable of rapid, continuous batch processing, significantly increasing your factory’s daily output.
Intelligent PLC Control System: Features a user-friendly digital touch screen. Operators can easily program cutting lengths, batch quantities, and feeding speeds, making changeovers between different tube specifications quick and effortless.
Material Versatility: While optimized for tiny copper pipes, the YE-Q1 is equally effective at cutting thin-walled aluminum tubes, soft stainless steel micro-tubes, and Teflon-coated capillary wires.
Cut pipes and bars with brass, copper, and aluminum materials.
●: Circular solid tube is made of copper, brass, and aluminum with a bore diameter of ∅40 mm.
□: Square hollow tube is made of copper, brass, and aluminum with a diameter of 60*40 mm.
▃: Square solid tube is made of copper, brass, and aluminum with a diameter of 65*45 mm.
◎: Circular hollow tube is made of copper, brass, and aluminum with a diameter of ∅50 mm.
The zero-deformation guarantee of the YE-Q1 Automatic Capillary Tube Cutting Machine makes it a mandatory asset for industries relying on precise fluid and gas dynamics:
Medical Equipment: Sizing micro-tubes for surgical instruments, IV fluid pathways, and precision syringe needles.
Thermostats & Sensors: Processing tiny tubes used to house temperature sensors and thermal expansion fluids.
Automotive & Aerospace: Precision cutting of micro fluid lines and pneumatic control tubes.
The YE-Q1 transforms coiled micro-tubing into finished, ready-to-use segments completely hands-free:
Uncoiling & Feeding: The coiled copper tube is pulled into the machine by the servo-driven feeding rollers.
Precision Straightening: The tube passes through a series of adjustable horizontal and vertical rollers, removing the coil’s natural curve.
Accurate Positioning: The machine advances the straightened tube to the exact length inputted on the touch screen.
Chipless Cutting: The customized micro-clamps secure the tube while the specialized blade executes a clean, chipless cut, leaving the inner pathway entirely unblocked.
Batch Collection: The finished capillary tubes are ejected into the collection tray, and the machine automatically stops once the programmed batch quantity is reached.
Capillary Processing Experts: We understand the strict flow-rate requirements of the refrigeration industry. Our cutting dies are meticulously machined to protect your tube’s geometry.
Tailored Straightening Solutions: We configure the straightening rollers based strictly on the hardness and diameter of your specific copper or aluminum tubing.
Global Support Network: All machines come with robust after-sales support, including detailed video tutorials and 24/7 technical troubleshooting.
Guaranteed Quality Assurance: Every YE-Q1 undergoes a rigorous trial run with micro-tubing before shipment, ensuring plug-and-play precision upon arrival.
YQUNIQUE provides 1 year warranty period, during which our company will undertake all after-sale services and spare parts free of chargee
QUNIQUE provides each customer with a more valuable automated custom machine solution
We owe it to each of our customers, YQUNIQUE uses parts from world famous brands to improve the working performance of our machines..
We not only provide you with custom automatic machines, but also give you a solved solution for electronic and electric site.
