In high-volume metal fabrication, the difference between a profitable production run and a costly bottleneck often comes down to the finishing details. Cutting and chamfering might seem like standard preliminary steps, but they are the foundational processes that dictate the quality of downstream applications like welding, assembly, and CNC machining.
Using the wrong saw blade leads to burrs, material waste, and frequent tool changes. Pairing that with an inefficient chamfering process multiplies your labor costs and scrap rates. This guide breaks down the critical factors you must evaluate to choose the optimal cutting and chamfering solutions for your production floor.

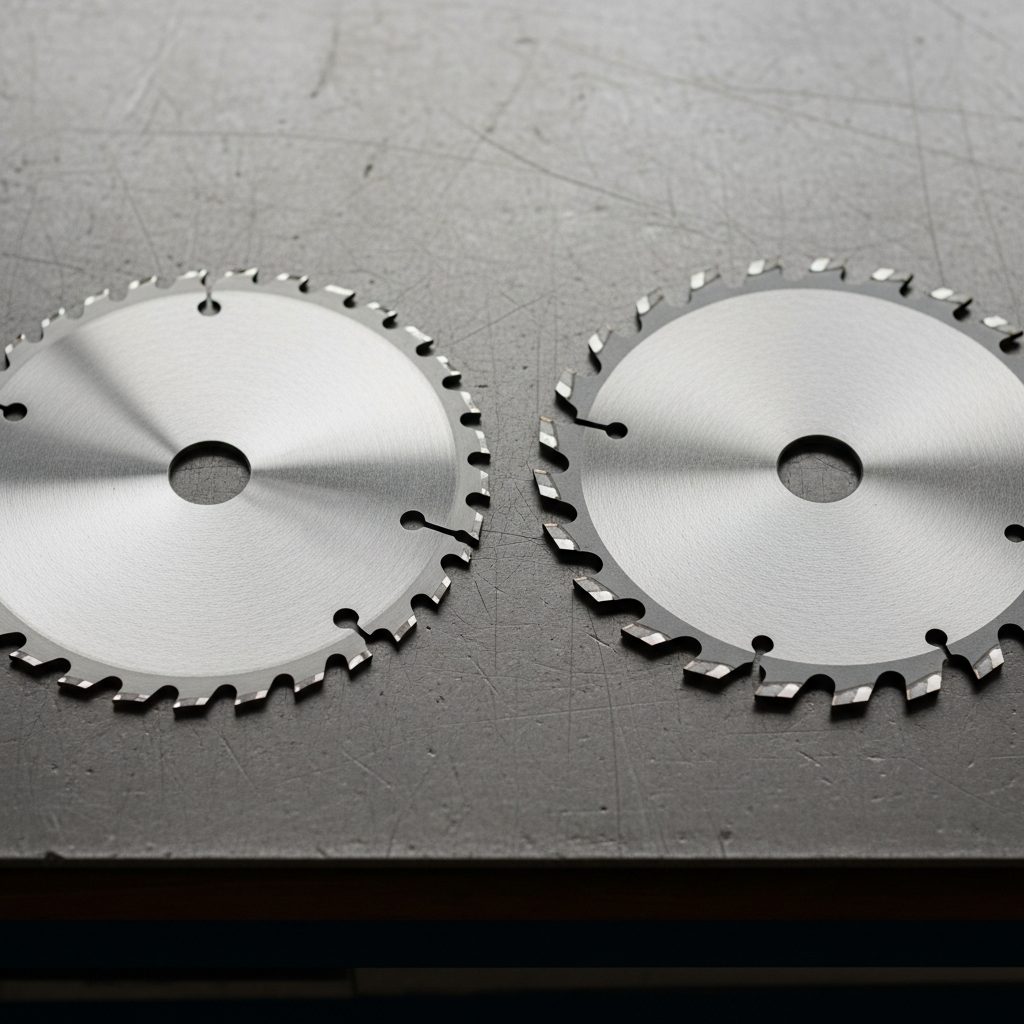

The saw blade is the frontline of your material processing. Selecting the right blade is not just about cutting through metal; it is about cutting efficiently, cleanly, and consistently over thousands of cycles.
The composition of your target material dictates your blade choice.
High-Speed Steel (HSS): Ideal for general-purpose cutting of mild steel and non-ferrous metals. They offer flexibility and can be resharpened multiple times, keeping operational costs low.
Tungsten Carbide Tipped (TCT): The go-to choice for high-tensile materials, stainless steel, and high-speed automated cutting lines. TCT blades withstand higher temperatures and provide a much cleaner, burr-free finish compared to HSS.
The number of teeth per inch (TPI) and the shape of the teeth must align with the thickness of the material.
Thin-walled tubes: Require a higher TPI to prevent the blade from snagging or crushing the tube profile.
Solid bars or thick-walled pipes: Require a lower TPI with deeper gullets to effectively clear heavy metal chips and prevent the blade from overheating.

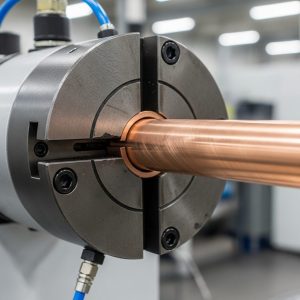

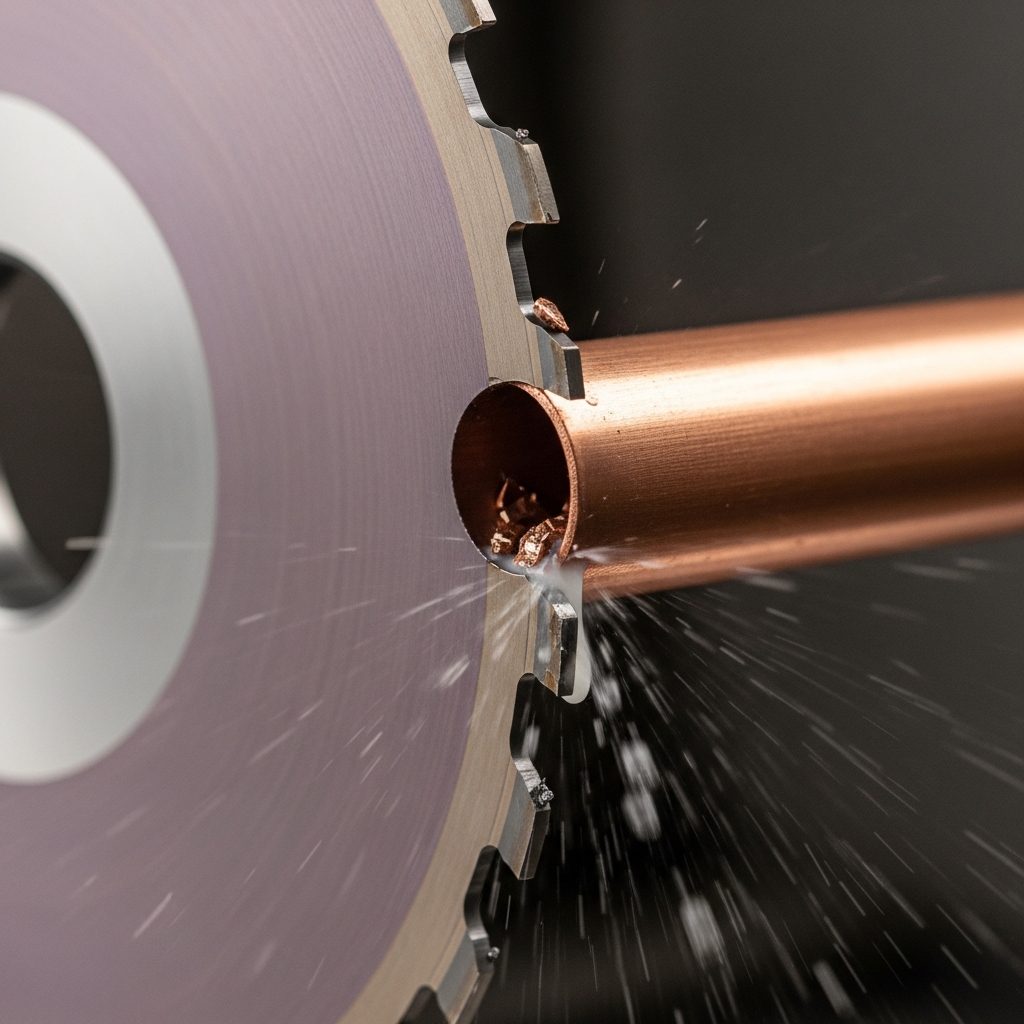

When cutting ductile and soft non-ferrous metals like copper, material adhesion and deformation are major hurdles. High-speed cutting can cause copper to pinch the blade, leading to catastrophic tool failure. For copper tube processing, selecting a blade with specialized coatings (like TiAlN) and combining it with a full-circumference clamping mechanism is vital to maintain tube roundness and ensure downstream brazing joints remain leak-free.
Once the material is cut, the edges must be prepared. Chamfering removes sharp burrs, creates a safe handling edge, and prepares the tube or bar for seamless joining.

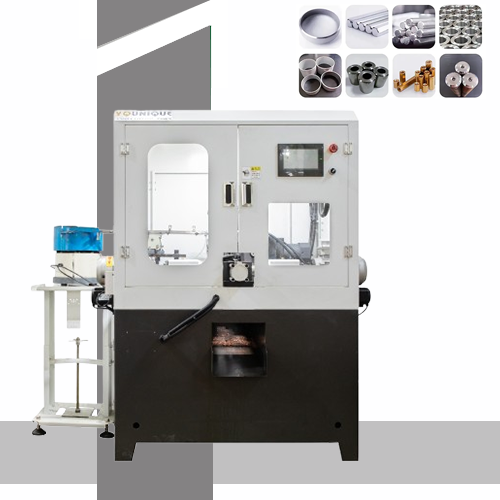

Relying on hand-held grinders or manual lathes for chamfering introduces human error and creates severe bottlenecks. If your factory processes more than a few hundred pieces per shift, transitioning to an automated chamfering machine is a necessary upgrade to maintain uniform angles and depths.
Your production volume dictates the machinery configuration.
Single-End Machines: Best suited for lower volumes, custom lengths, or exceptionally long tubes where maneuvering the material is difficult.
Automatic Double-End Machines: The gold standard for high-volume manufacturing (such as HVAC, automotive, and scaffolding). These systems clamp the tube once and simultaneously chamfer both ends—inside, outside, and face—cutting cycle times to under 3 seconds per part.
While pneumatic systems are standard, modern high-precision facilities are transitioning to servo-driven feeding. Servo systems provide micron-level feed adjustment (achieving repeatabilities of plus or minus 0.02 mm to plus or minus 0.05 mm), ensuring identical bevel depth even under variable material hardness. Additionally, they draw power only during active travel, significantly lowering factory utility bills.
When upgrading your factory floor, you must decide whether to purchase individual machines or invest in an integrated line. Here is a quick comparison to guide your strategy:
| Feature | Standalone Cutting & Chamfering Units | Integrated Cutting & Chamfering Line |
| Initial Investment |
Lower upfront cost.
|
Higher capital expenditure.
|
| Labor Requirement |
Requires operators to move material between stations.
|
“Lights-out” potential; fully automated transfer.
|
| Footprint |
Flexible placement across the shop floor.
|
Requires dedicated, linear floor space.
|
| Ideal Application |
Low-to-medium volume, high-mix production.
|
High-volume, low-mix, continuous production.
|
The future of metalworking lies in smart factory integration. Modern automated chamfering lines feature integrated IIoT sensors that monitor spindle vibration, motor temperature, and blade deflection in real time. Utilizing edge-AI processing, these systems warn operators of tool wear before a blade breaks or a batch of tubes is ruined with heavy burrs. This predictive approach can reduce unplanned downtime by up to 50%.
To justify a machinery upgrade, decision-makers must look beyond capital expenditure and calculate the total cost of ownership (TCO):
70% Labor Reduction: Shifting from manual finishing to an integrated automatic double-end line typically reduces finishing labor costs by up to 70%, allowing you to reallocate skilled machinists to higher-value operations.
2% Material Savings: Precision double-end chamfering systems eliminate excessive trimming and reduce material waste by up to 2%. For a mid-to-large-scale facility processing thousands of tons annually, this saves tens of thousands of dollars in raw metal costs.
18 to 36 Month Payback: Through minimized scrap, reduced labor costs, and dramatic cycle time compression, most factories achieve a full return on investment (ROI) within 18 to 36 months.
Investing in the right cutting and chamfering technology is not just an equipment upgrade—it is a strategic move to lower cost-per-part and elevate the overall quality of your final product.
Are you struggling with copper tube deformation, high brazing leak rates, or production bottlenecks? Contact our engineering team today for a free precision cutting and chamfering workflow consultation.
