In high-volume tube fabrication, the cut is only half the battle. Whether you are producing copper coils for commercial HVAC evaporators or stainless steel frames for automotive exhaust systems, the quality and finish of the tube’s edge dictate the success of all downstream operations.
Choosing the right metal tube chamfering machine ensures that sharp, jagged burrs are removed and the tube ends are perfectly prepped for welding, automated brazing, or leak-free O-ring insertion. This comprehensive B2B guide breaks down how to evaluate and select the best chamfering equipment for your factory floor.
The type of metal and the wall thickness of the workpiece dictate the rigid power and tooling configuration your machinery requires.
Copper tubes, widely used in HVAC and heat exchanger manufacturing, are highly ductile and exceptionally prone to wall deformation. Standard pneumatic jaw clamps will crush or distort thin-walled copper under high pressure, leading to brazing joint failures and catastrophic leaks.
To prevent this, ensure your machine features a full-circumference collet clamping system. This mechanism wraps entirely around the tube, distributing clamping pressure symmetrically to maintain perfect tube roundness during high-speed spindle operations.
Chamfering high-tensile steels generates intense cutting forces and thermal shock. Processing these materials requires a heavy-duty gearbox and a stress-relieved cast-iron monobloc machine bed to absorb micro-vibrations. Without a rigid bed structure, your carbide insert tools will chatter, chipping the blades and ruining the bevel consistency.
Your production volume and parts customization mix should be the primary deciding factors when choosing the system architecture:
These are best suited for low-to-medium-volume manufacturing, high-mix custom fabrication shops, or processing exceptionally long, heavy pipes that are logistically difficult to feed and maneuver through automated lines.

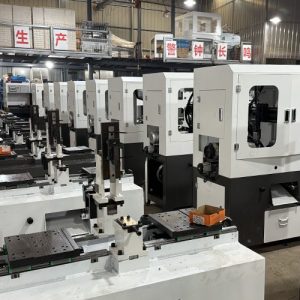

The gold standard for mass production. These systems clamp the tube once and simultaneously chamfer the inside diameter (ID), outside diameter (OD), and end-face of both ends of the tube in a single cycle.
For HVAC OEMs and component suppliers operating in the manufacturing corridors of Ohio, Indiana, and Texas, meeting tight “Just-in-Time” (JIT) delivery schedules is critical. Driven by residential and commercial construction growth under strict efficiency standards, migrating to an automatic double-end system is the fastest way to compress production lead times.
Modern procurement managers must look beyond standard pneumatic machines. While pneumatic cylinders are cost-effective, their stroke speed fluctuates based on plant air pressure variations, leading to irregular bevel depths.

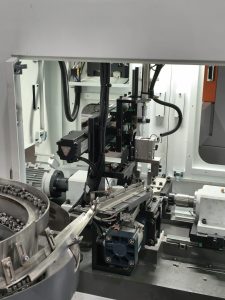

Integrating servo-driven feeding systems provides:
Micron-Level Precision: Achieve repeatability tolerances of 0.02mm to 0.05mm, securing identical chamfer profiles even under variable material hardness.
Energy Savings: Servo motors draw power only during active travel, cutting power consumption significantly over thousands of cycles.
Quick Changeover Times: Servo-controlled positioning reduces changeover times from hours to mere minutes when switching diameters (e.g., from 3/8″ to 7/8″ copper tubes).
Upgrading to an automated or integrated double-end chamfering system delivers clear, measurable financial benefits to factory management:
Up to 70% Labor Savings: Transitioning from manual deburring to a fully automated chamfering line allows one operator to manage multiple workcells simultaneously.
2% Material Optimization: Precise depth control reduces excess trimming and material scrap.
18 to 36 Month Payback: The combination of lower scrap rates, compressed cycle times (under 3 seconds per part), and minimized human error leads to full capital amortization within 3 years.
Do not let a slow, inaccurate deburring process bottleneck your cutting and machining lines.
To find the exact equipment match for your production capacity and material specifications, explore the robust lineup of precision-engineered at YQUNIQUE. Contact our engineering team today for a free workflow optimization analysis.
