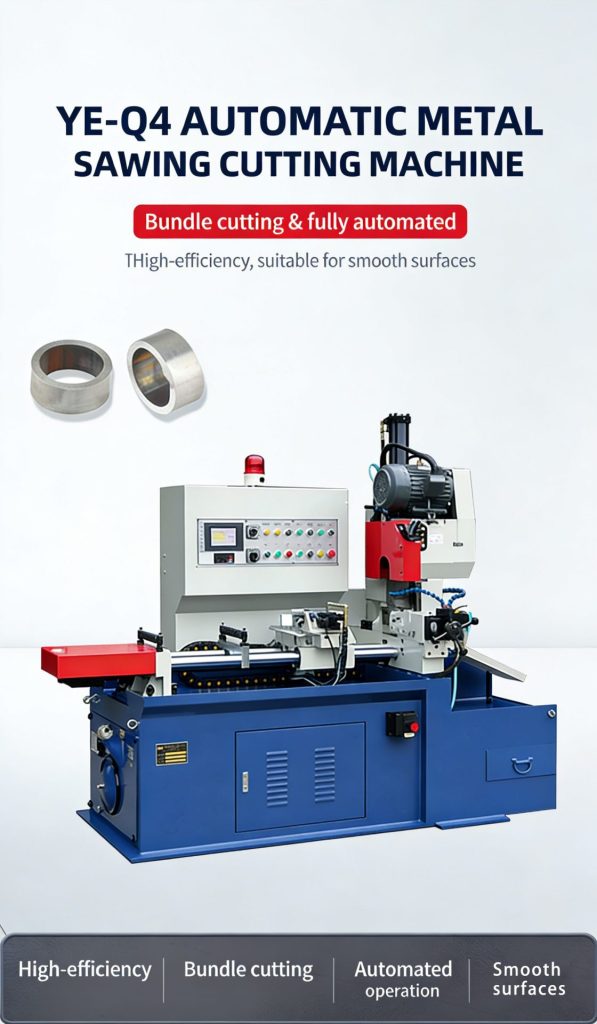

The YE-Q4 automatic metal sawing cutting machine of Unique electric can cut round tubes, square tubes, rectangular tubes, and elliptical tubes with high speed and high quality.
Automatic tube cutting machine adopts horizontal structure, including cooling system, oil pressure system, and regulation system, which is easy to operate and safe. This machine is featured a stable structure, good rigidity, lightweight, and high dynamic response.
It is a high-performance automatic metal sawing cutting machine.
The YE-Q4 automatic metal sawing cutting machine can cut all kinds of stainless steel and copper, aluminum and other metal materials, especially for various pipes.
Small pieces can be cut in bundles, and multiple pieces can be cut at one time.
The operation such as rapid clamping of the workpiece, speed cutting of the feed knife, cutting of the cutter, and release of the clamp can be automatically controlled in sequence, and the automatic cutting operation is realized by the touch screen control. The saw blade is cut with a tungsten steel circular saw blade, and the cutting material has a smooth and burr-free section.
The machine has the characteristics of simple operation, low noise, no pollution, good sawing quality, basic burr inside and outside the slit, and high production efficiency.
| model | YE-Q4 | |||||
| Sawing ability | ● | ■ | ○ | ┍ | □ | □ |
| Sawing ability | φ70mm | 50×50mm | φ120mm | 115×115mm | 110×110mm | 110×50mm |
| Feed length (optional) | Servo feeding 5mm-6m, no manual positioning required | |||||
| Feed length (optional) | Cylinder feeding, single 650mm, double 300mm, 1950mm | |||||
| Saw blade | HSSφ250mm-φ400MM (10 “-16”) standard φ350mm | |||||
| Spindle revolution | 29/58rpm 60/120rpm | |||||
| Main motor | 2p/4p 2.2kw/3.7kw bipolar two speed | |||||
| Clamp type | unilateral | |||||
| Vise maximum clamping | 150mm | |||||
| Work pressure | 10-35KG/CM | |||||
| Standard configuration | Cooling system, hydraulic system, adjustment tool | |||||
| size | 2200mm×1400×2200 | |||||
| total weight | 1450KG | |||||
1. This machine adopts multiple sets of gear structure.
Heavy-duty cutting, synchronous belt pulley converts high and low speed according to different materials.
2. The head spindle is equipped with a hydraulic brake to control the saw blade to work in a sharp state to prevent damage and boring at the saw.
It can cut all kinds of stainless steel and copper, aluminum and other metal materials, especially for various pipes.
Small pieces can be cut in bundles, and multiple pieces can be cut at one time.
