Full Chinese characters/graphics displays, processed wire length, knife depth, and terminal position can be operated by the button.
The operation of the full-automatic terminal crimping & twisting machine is simple and flexible, and the cost of maintenance consumables is extremely low.
The crimping position is correct, the torsion degree is adjustable, and the twisted wire is straight and beautiful.
Product features
● Full Chinese character graphics display, wire processing of each length size, knife depth, terminal position, are set by the key simple and flexible operation, low cost maintenance consumables.
● The position of pressing end is accurate, the tightness of twisting line can be adjusted, and the twisting line is straight and beautiful.
● This machine has powerful function, can produce flat sheath line cutting, peeling, pressing end, one complete.
| Model | YE-158 |

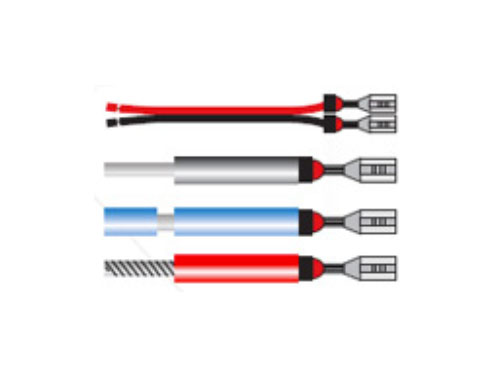

| Function | cutting the wire by the decided dimension,single and double-end peeling,single-end crimping,and twisting;automatically set the crimping position,peeling length and cutting depth and binding prompt. |
| Work ability | (100mm Long) line is not twisted 4000 article hour,twist 3000 article hour |
| Suitable wire | AWG #32- AWG #18 |
| Machining length | (leaving the middle part of the skin) 25mm-9999mm |
| Stripping length | 0.1mm-25mm(ideal range) |
| Twist length | 3mm-20mm(ideal range) |
| Cut error | amendable |
| Crimping capacity | 1.8T |
| Detection device | terminal existence and wire entrance detection |
| Assist device | pre-feed device and waste paper rolling terminal device |
| Power | AC220V (single-phase) 4A |
| Dimension | 1060*600*1380mm |
| Weight | 310kg |
| Make the mold | OTP straight、horizontal mold |
The machine has a number of functions including wire size cutting, single and double end peeling, single end pressing, twisting;
It can automatically set the position of pressing end, peeling length, cutting depth and bundling prompt.
Cutting the wire by the decided dimension, single and double-end peeling, single-end crimping, and twisting; automatically set the crimping position, peeling length and cutting depth and binding prompt.
(100mm Long)Line is not twisted 4000 Article hour, twist 3000 article hour.
Suitable wire AWG#32~AWG#18.
YQUNIQUE provides 1 year warranty period, during which our company will undertake all after-sale services and spare parts free of chargee
QUNIQUE provides each customer with a more valuable automated custom machine solution
We owe it to each of our customers, YQUNIQUE uses parts from world famous brands to improve the working performance of our machines..
We not only provide you with custom automatic machines, but also give you a solved solution for electronic and electric site.
